Alphacool Core GPU Waterblock - Radeon RX 7XXX and Geforce 40 series - Special Order

Interested in the Alphacool Core GPU waterblocks? We can order these in specially just for you!

Please add in the comments which model you are after and we'll advise when our next shipments are due to arrive in from Alphacool Germany. Please note that this is subject to supplier availability and a refund is available in case there are stock outages at the supplier.

In order to avoid disappointment, we'll confirm with the supplier on availability prior to confirming your order.

The Core RX Waterblock is available in the following models:

• 7900XTX Reference
• 7900XTX Merc 310
• 7900XTX/XT Nitro
• 7900XTX/Xt Taichi – Phantom
• 4090 Strix + TUF
• 4080 Strix + TUF
• 4090 Reference
• 4080 Reference
• 4090 Founders Edition
• 4080 Suprim
• 4090 Gamerock + Phantom
• 4090 Zotac AMP
• 4090 Aorus Master V.2

AMD Radeon Compatibility List

Geforce Nvidia Compatibility List

Product information

The next generation - the Alphacool Eisblock Aurora water cooler for Radeon RX 7XXX and Nvidia Geforce RTX 40 series graphics cards. In order to dissipate the enormous heat of this graphics card generation in the best possible way, numerous optimizations have been made to the water cooler compared to the previous model. The fin structure was adapted and enables a very good water flow while increasing the cooling surface. The modified jet plate with improved inflow engine ensures an optimal distribution of the water on the cooling fins.

Technical Highlights
The fin structure of this Eisblock cooler generation was developed together with AMD board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while increasing the cooling surface. The jet plate has a revised inlay that spreads the water pressure better over the fins thus optimizing the heat absorption. The adjusted water inflow gives the water a better angle of inflow.

Chrome-plated copper
The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.

Design

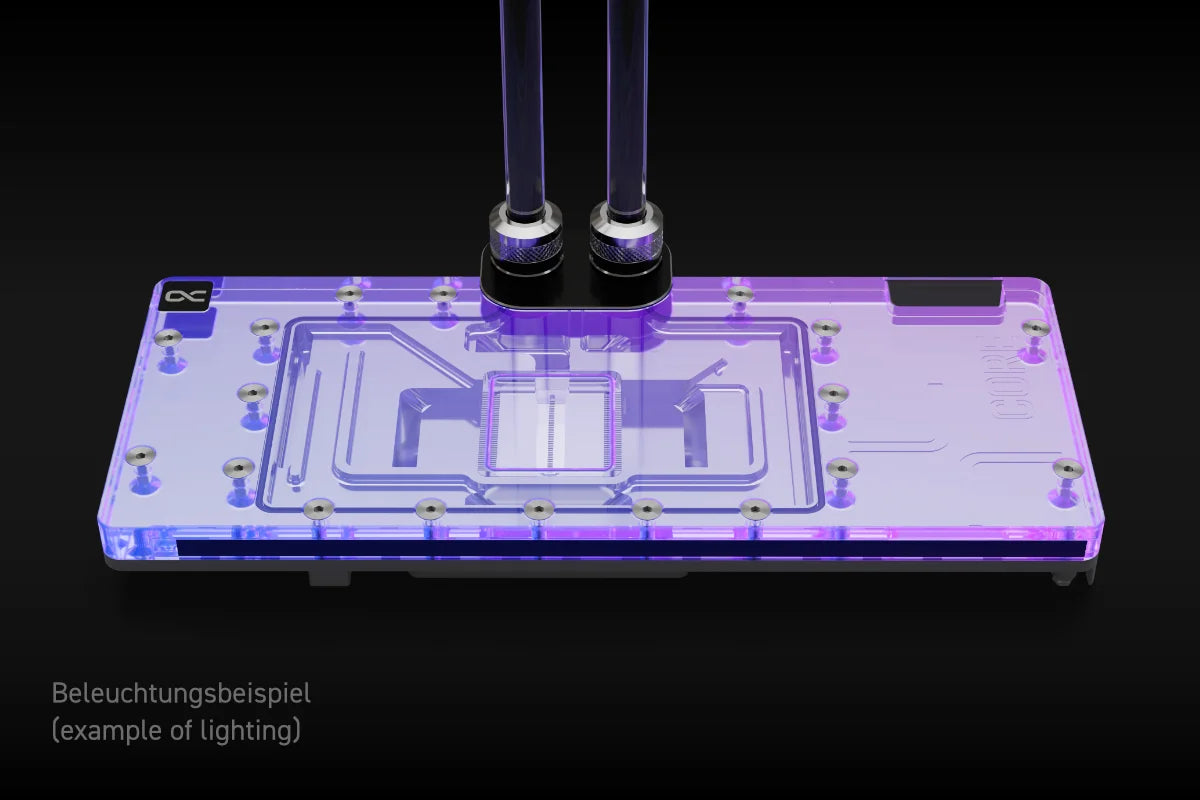

The deisgn of the Core RX generation is visually calmer and simpler: utilising a single O-ring which runs around the entire cooler. The design around the cooling fins and jetplate makes for a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed throughout the cooler as a result of the chrome plating. The terminal's design is in line with the classic Aurora design.

Thermal paste & thermal pads
The included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mK, it is one of the highest performing thermal pastes on the market. The electrically non-conductive thermal compund is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850.000 TF. Alphacool Soft Pads with 1mm thickness are used on the voltage converter and the graphics memory. The thermal conductivity of the pads is 7 W/mK. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3 W/mK.
