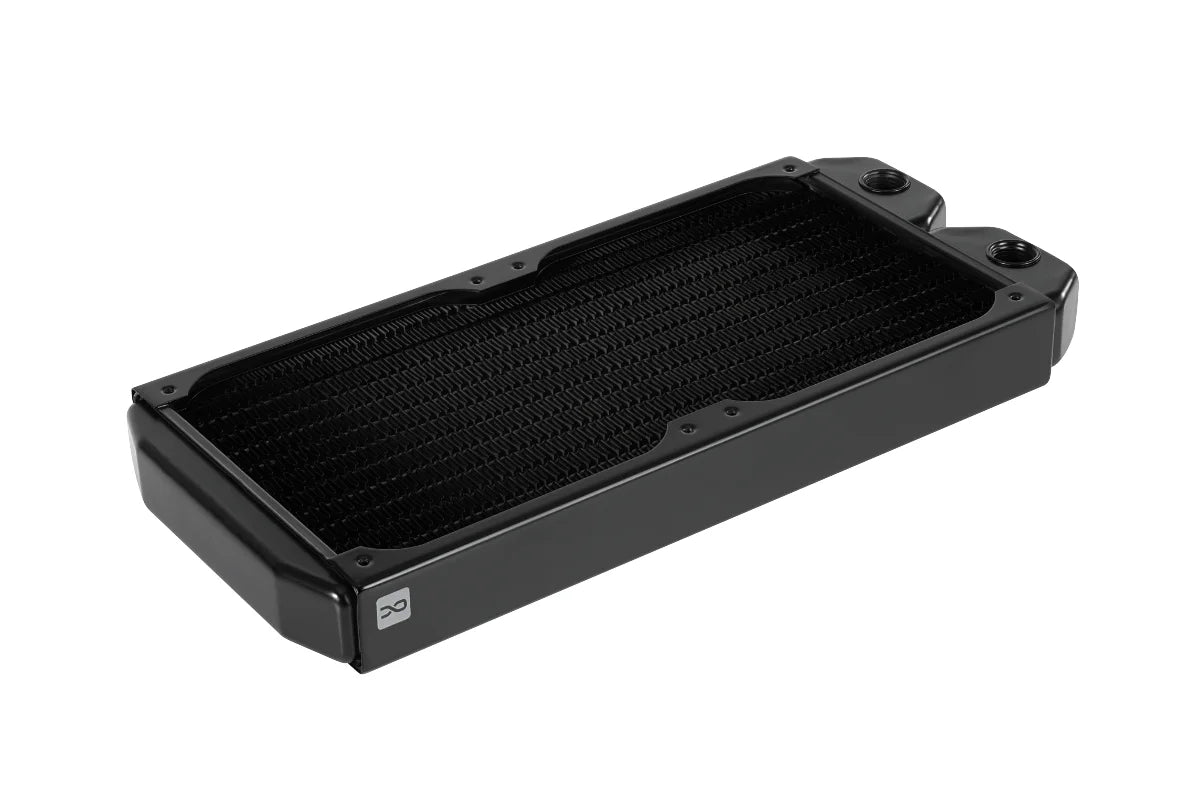

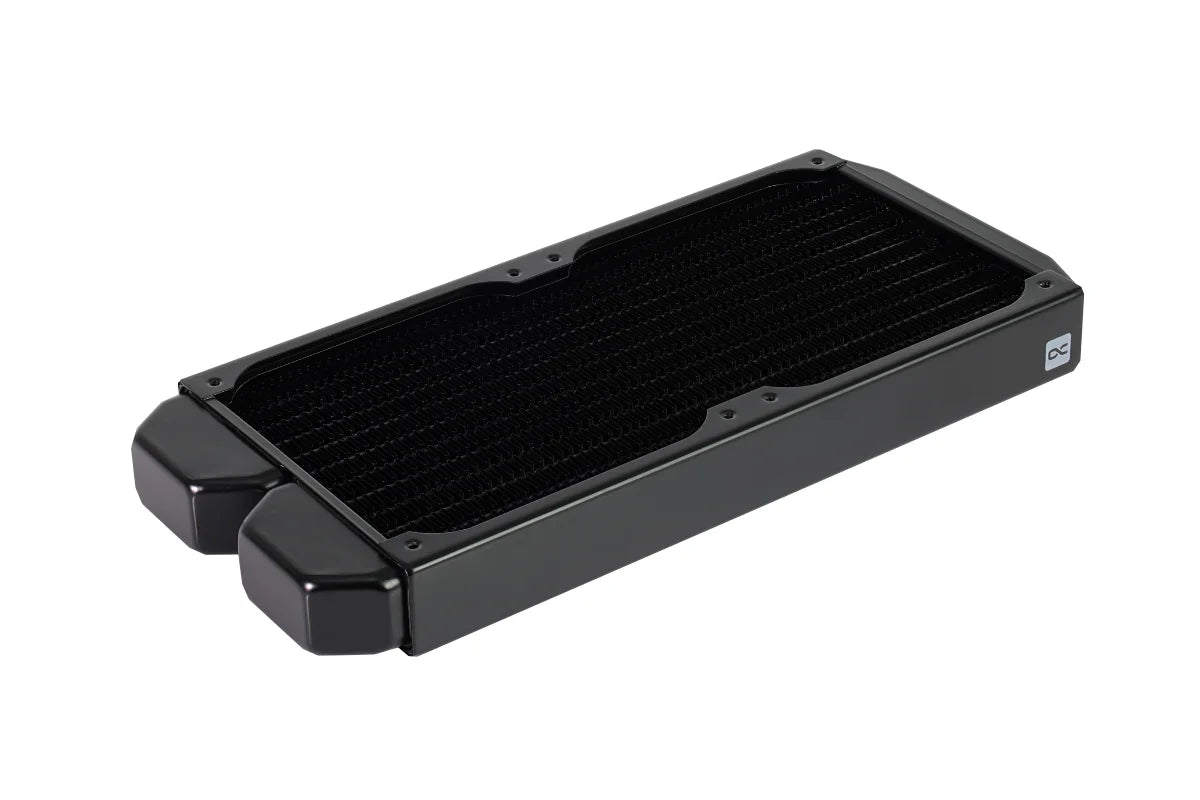

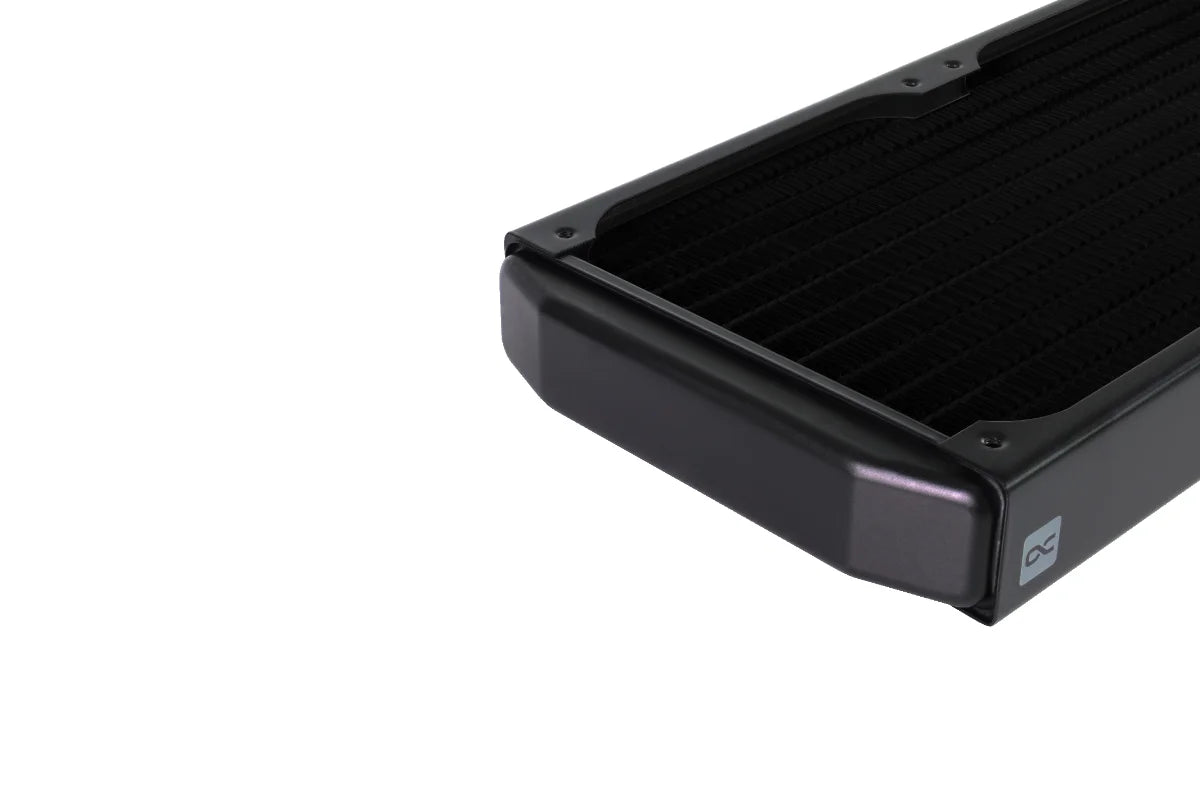

Alphacool NexXxoS ST30 Full Copper 240mm x 30mm Radiator - Black

This radiator can dissipate up to 1200 W at an ambient temperature of 30°C with a 4000 rpm fan.

The world-renowned manufacturer Alphacool is currently the only manufacturer worldwide that uses pure copper for all water-bearing components. The pre-chambers, water channels, and fins are all made of pure copper. This gives Alphacool radiators the highest thermal conductivity, resulting in a significantly higher performance limit than aluminum radiators. In short, the cooling performance is simply higher when you need to dissipate a lot of heat. Copper has been the best material choice for water cooling for years.

All Alphacool radiators are designed for silent operation. Therefore, you don't need fans with particularly high static pressure to achieve the desired performance; you can use standard fans at low speeds. The performance loss compared to dedicated radiator fans is minimal and can usually be ignored. Of course, those who want to achieve maximum cooling performance and opt for dedicated radiator fans won't be disappointed either. The maximum performance is not affected. Thanks to the copper and the high-quality manufacturing process, you'll still get a significant performance boost for your water-cooled components, even with high-performance fans.

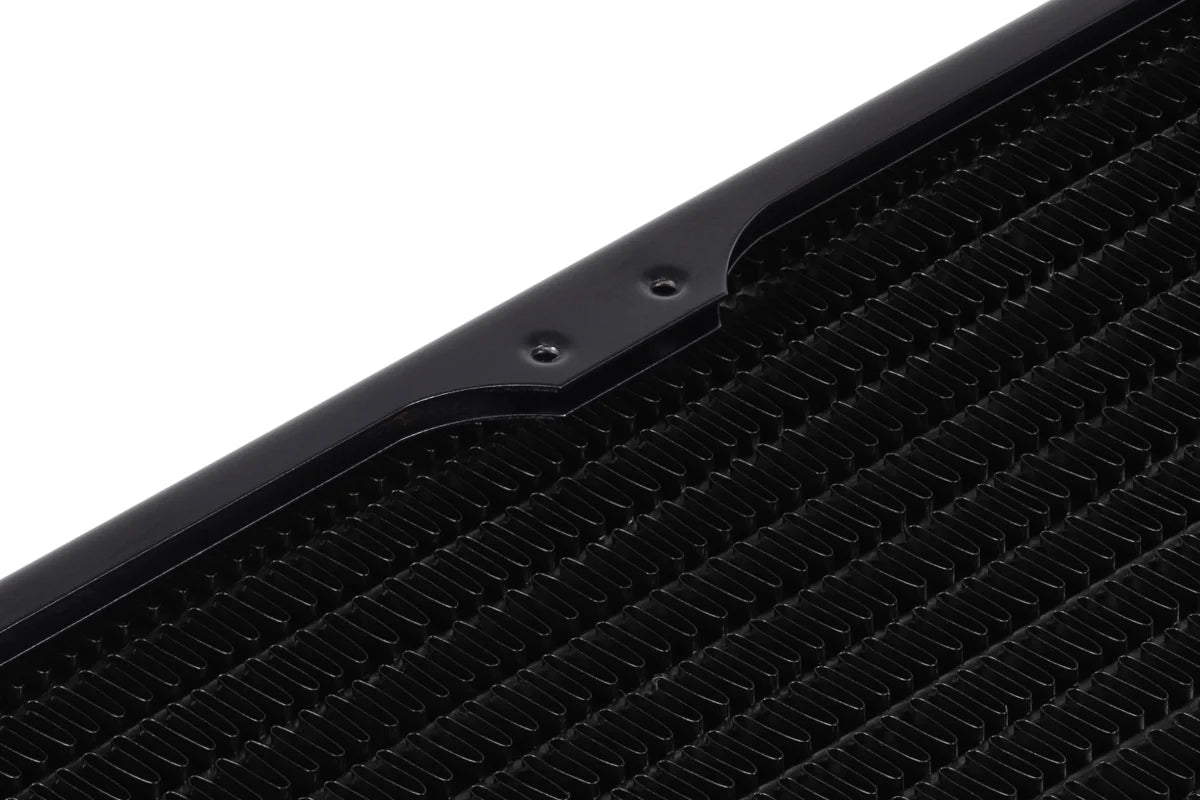

The fans are mounted using the included 30 or 35 mm M3 screws. All Alphacool radiators feature a protective plate that prevents the screws from driving into the cooling fins. A metal plate beneath the mounting holes prevents further screw penetration. Suitable screws for mounting the radiator directly to the case are also included.

Alphacool's NexXxoS radiator series covers almost all sizes and offers the most comprehensive portfolio of any manufacturer in this segment. It ranges from 40 mm dual radiators to triple radiators for 180 mm fans. Various thicknesses are available: ST30, XT45, UT60, and Monsta, where the number always indicates the radiator's thickness in millimeters; the Monsta radiators are approximately 86 mm thick. In addition, there are special sizes and HPC industrial radiators. These are specialized radiators designed for high pressure applications.

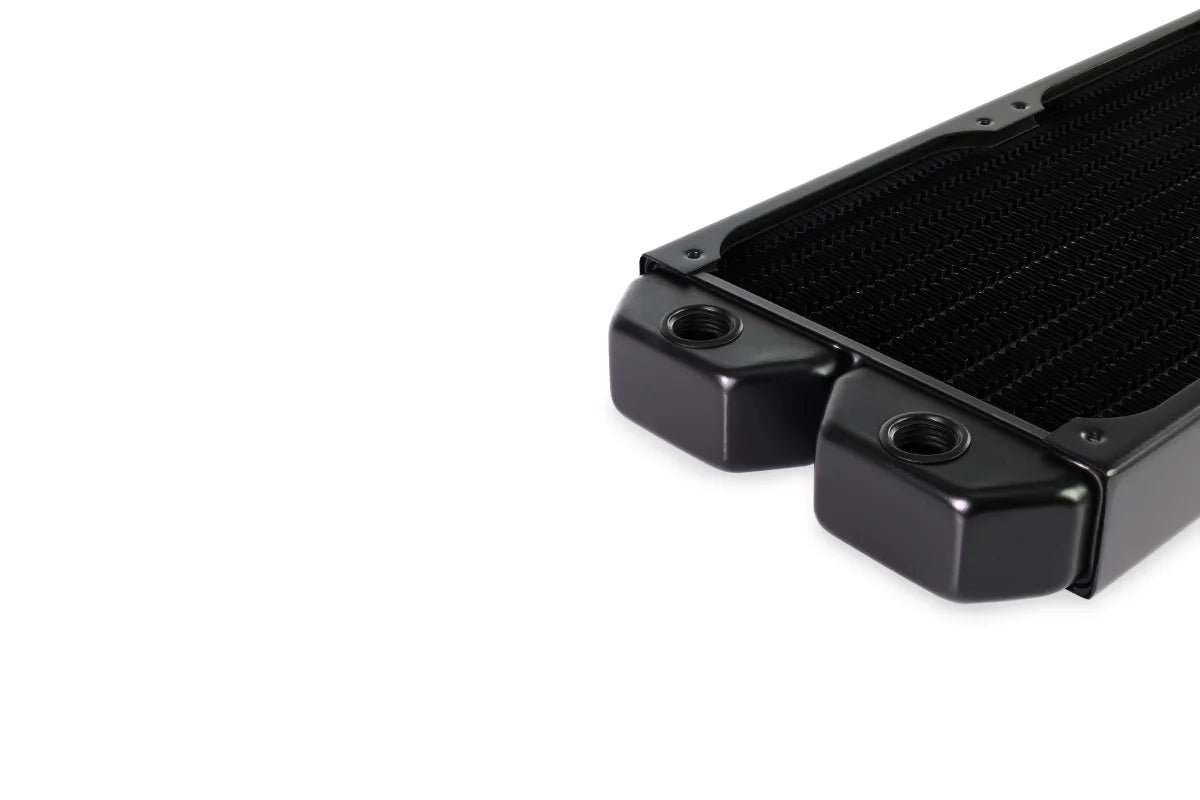

The NexXxoS radiators offer extensive connection options. While the slim ST30 radiator has two inlets and two outlets, all thicker radiators from the XT45 onwards offer three inlets and three outlets in the G ¼" format. Additionally, there is a G ¼" port on the rear pre-chamber for filling or bleeding. This allows you to mount the radiator in any desired position.

Eine Ausnahme stellen die X-Flow Radiatoren dar. Diese haben in der ST30 Version jeweils 2 Ein- oder Auslässe an beiden Vorkammern. Hier fließt das Wasser nicht in U-Form wie sonst üblich, sondern von einer Seite des Radiators zur anderen Seite des Radiators. Die Modelle ab der Größe XT45 haben wie gewohnt jeweils 3 Ein- oder Auslässe an den Vorkammern. So bieten Ihnen die X-Flow Radiatoren weitere Möglichkeiten den Wasserkreislauf in Ihrem System nach Ihren Wünschen anzupassen.

Sie erhalten mit einem Radiator aus der Alphacool NexXxoS Serie einen einzigartigen Vollkupfer Radiator mit einer herausragenden Performance.
