Alphacool Core 120mm Reservoir D5

Stock due late September/early October - currently taking pre-orders

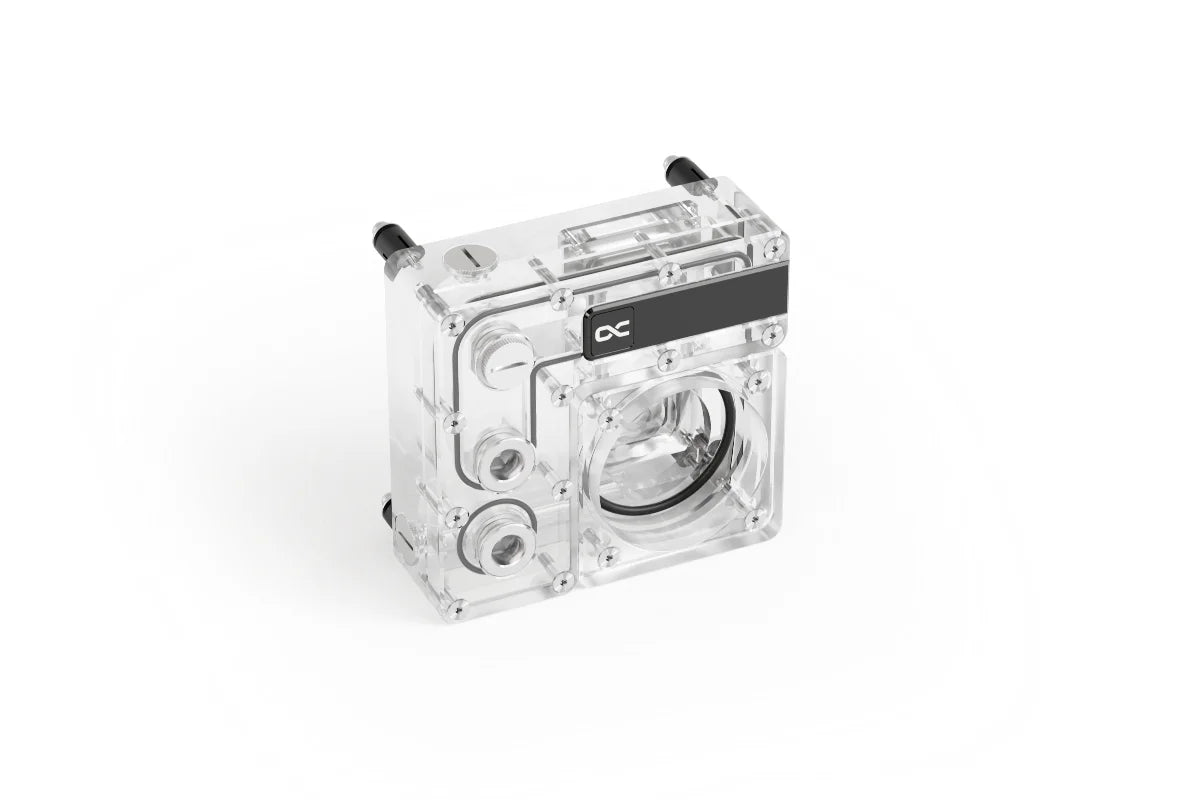

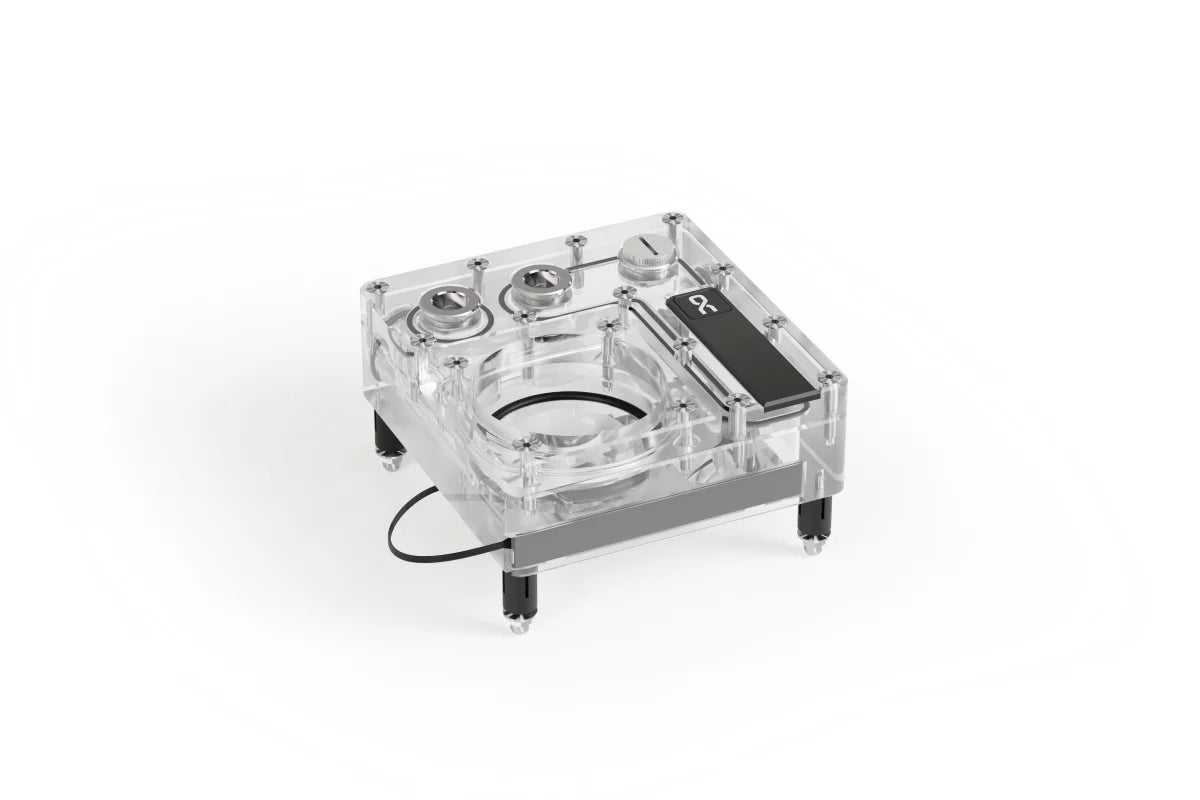

The Alphacool Core Reservoir not only looks stylish with its aRGB lighting, but its compact size also makes it versatile. The reservoir is made entirely of acrylic. A D5 or VPP pump is included for operation. Thanks to its compact design, the Core Reservoir fits even in small cases.

Core Design
A core element of Alphacool's Core Design series are the chrome-plated, brass G1/4" fittings. With the Core Reservoir, the fittings are recessed and not screwed into a thread as is usual. This allows Alphacool to avoid the problem of potential leaks caused by cracks forming when the fittings are screwed directly into the acrylic. The fittings are two-part, provided with an O-ring, and counteract each other during assembly in the acrylic. This not only ensures absolute tightness of each individual fitting, but also enables the clear and functional appearance of the Alphacool Core Design series.

Easy installation

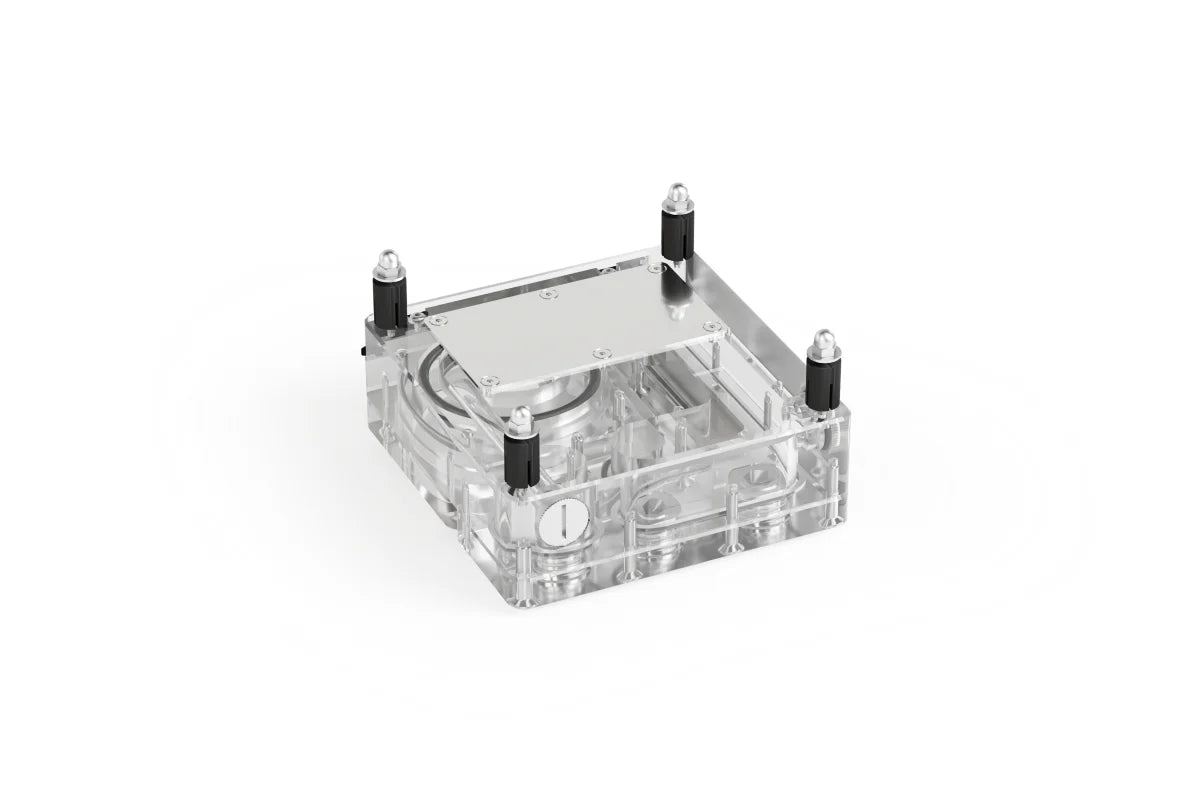

Using the included Core Push Mounting Kit, the Core Reservoir can be mounted on a case or radiator. To do this, the metal pins are attached to the radiator or the panel of the PC case, and the matching female sleeves are attached to the reservoir (see manual). In the next assembly step, the reservoir is simply pushed onto the pins without the need for tools. Alphacool's push mounting ensures a secure fit of the reservoir in the Case panel or on the radiator and allows for easy removal for maintenance or expansion projects.

Gamechanger:
The Core Reservoir is small and compact. This makes it ideal for custom water circuits. An additional drain port is located on the side, allowing for easy and uncomplicated emptying of the reservoir.

High-quality materials & brilliant lighting:

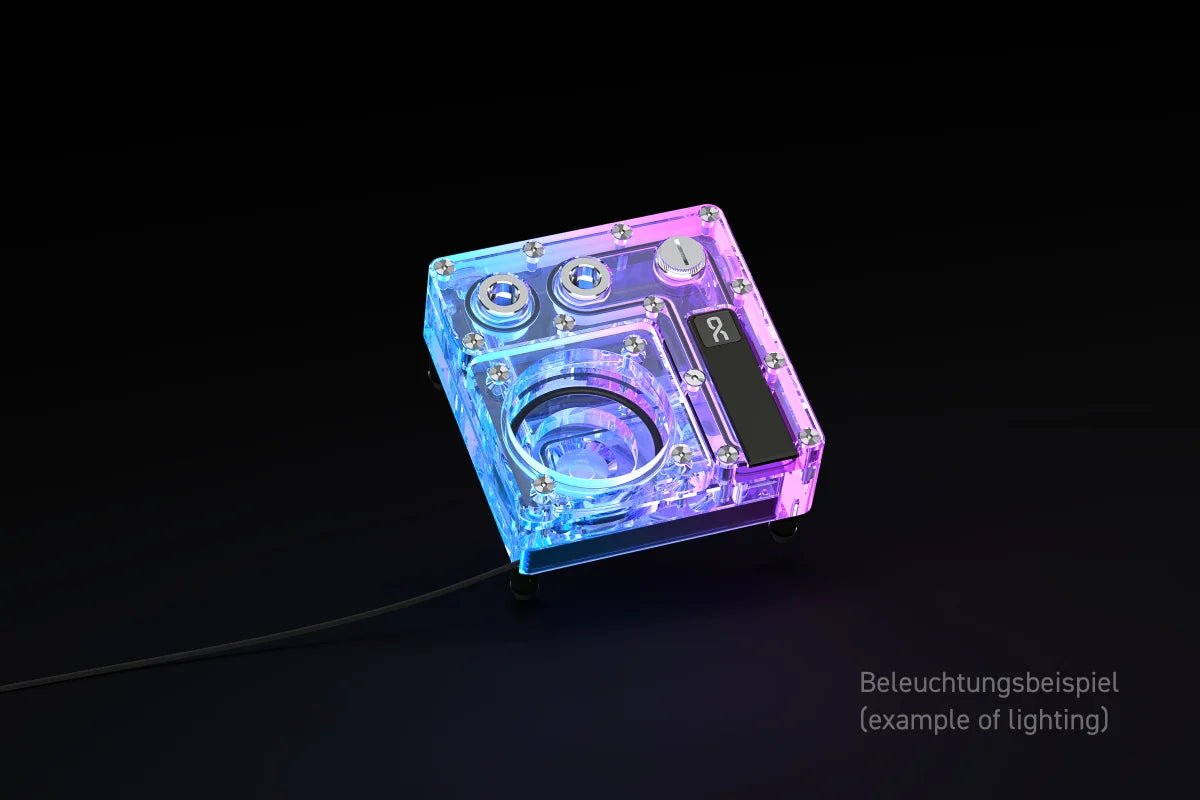

Alphacool's Core Reservoir is made of high-quality acrylic glass. This allows a clear view of the coolant and a brilliant play of colors thanks to the built-in digitally addressable aRGB lighting. The lighting can be controlled via a digital aRGB header on the mainboard or optionally with Alphacool's Aurora Eiscontrol aRGB controller (item no.: 15360).
