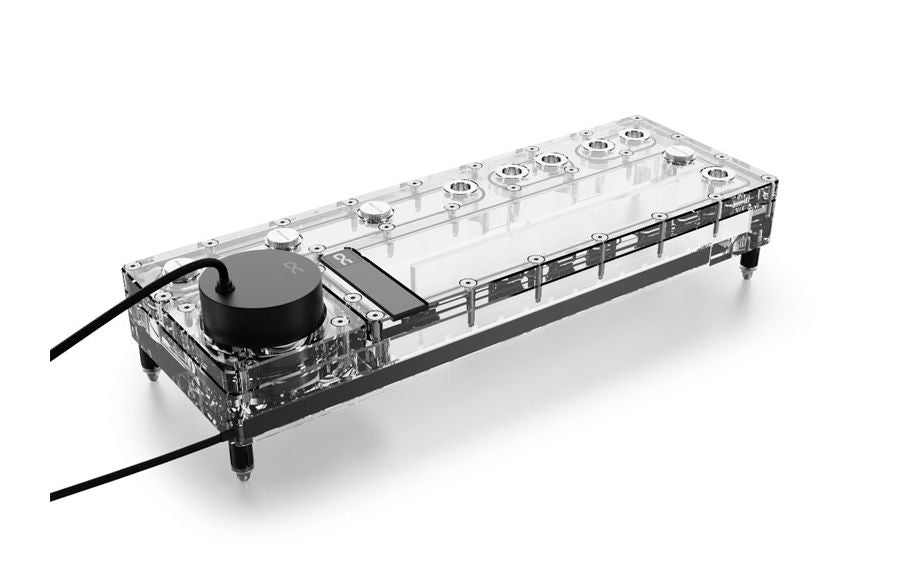

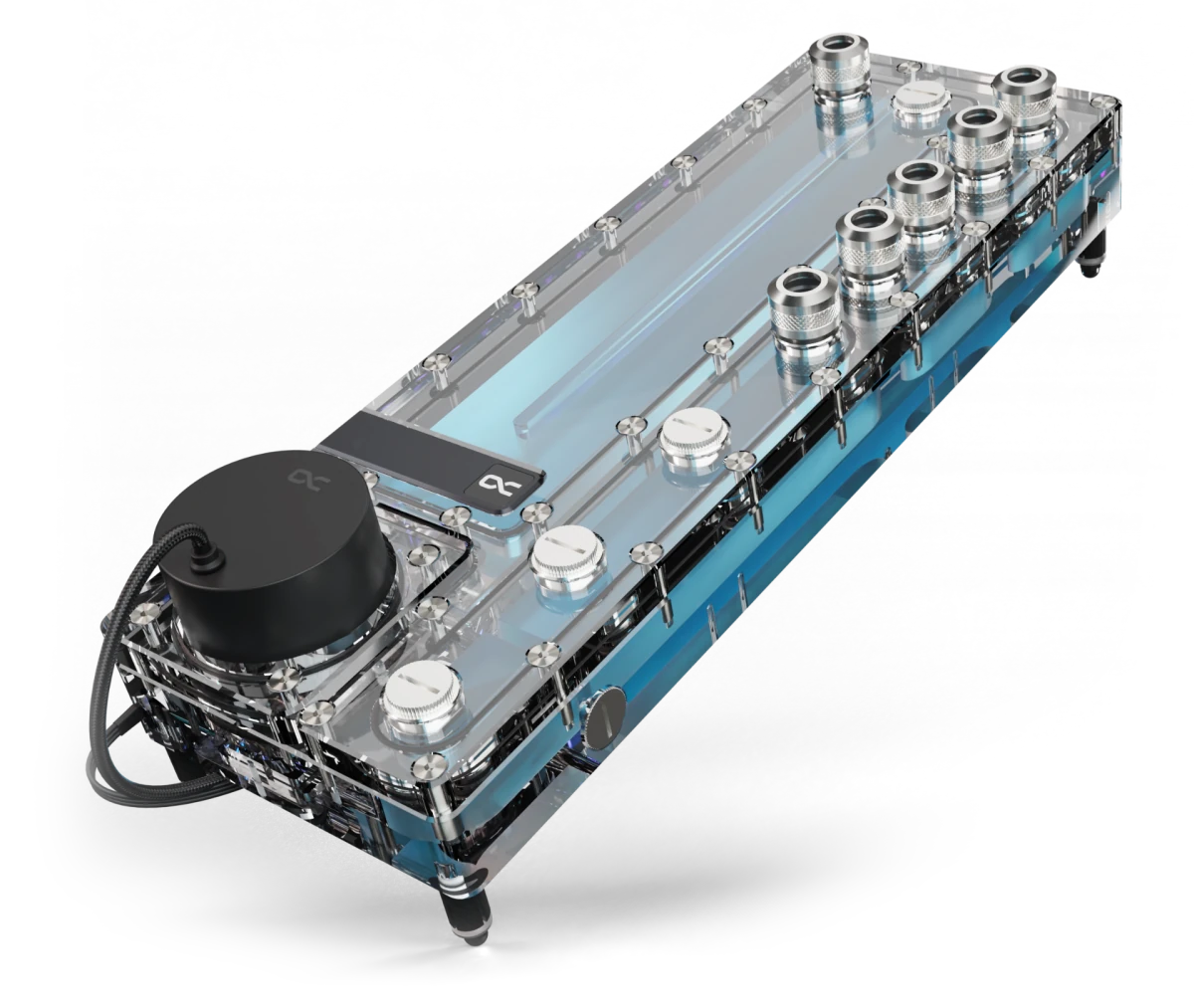

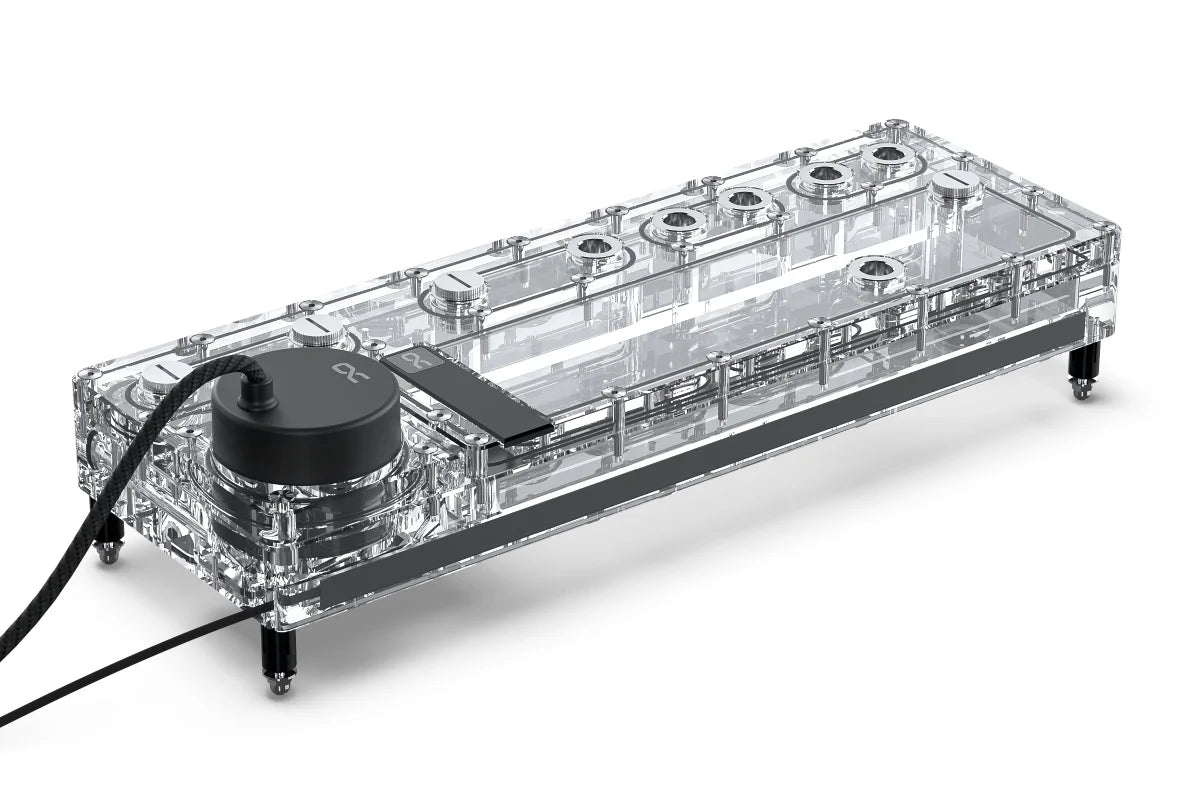

Alphacool Core Distro Plate 360 with Pump Combo V.2

Alphacool Core Distro Plate V.2 (360mm) with VPP Apex pump

The Core Distro Plate V.2 in the 360mm version is the ultimate solution for large custom loops. Thanks to its redesigned look and powerful VPP Apex pump, it offers maximum flexibility for integrating CPUs and multiple graphics cards.

The highlights at a glance:

• Smart brass fittings: Chrome-plated G1/4" threads are directly embedded in the acrylic and interlocked. This eliminates the risk of stress cracks and ensures absolute watertightness.
• Space-saving & efficient: Thanks to the shallow installation depth and 10 strategically placed connections, you can create extremely clean hose paths.
• VPP Apex Power: The smooth-running pump with ceramic shaft can be precisely controlled via PWM and is reliably powered via a SATA connection.
• Push Mounting System: The included kit allows for easy mounting on the radiator or case panel as well as quick removal for maintenance purposes.
• Brilliant optics: 19 digital aRGB LEDs illuminate the transparent acrylic and can be controlled via common controllers or the mainboard.
• Easy maintenance: A dedicated side drain port allows controlled emptying of the circuit.

Technical data:

• Dimensions (L x W x H): 360 x 125 x 34.5 mm (without accessories)
• Connections: 10x G1/4" internal thread | 1x drain port
• Volume: 190 ml
• Pump: VPP Apex (2500 - 4500 RPM, 4.25m delivery head)
• Lighting: 19x digital aRGB LEDs (5V)

Note: Use only with clear coolant. Pastel-colored coolants can damage the system and void the 3-year warranty.
