Alphacool

Alphacool ES Chiller 1000 - External Cooling Solution

Name: Alphacool ES Chiller 1000 - External Cooling Solution
Brand: Alphacool
SKU: AC1022499
Price: 2400.0 AUD
Availability: OutOfStock

$2,400.00 AUD

Sale Coming Soon!

GST included. Shipping calculated at checkout.

Product variants

Quantity

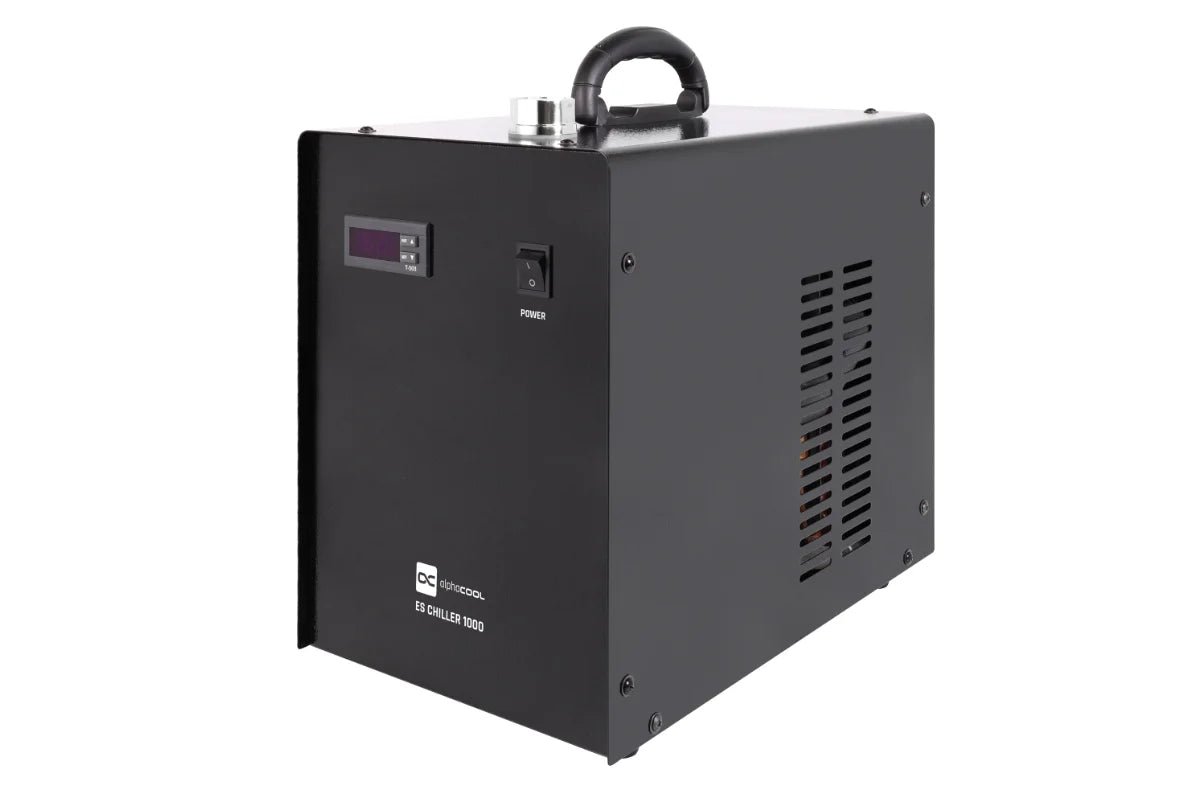

The Alphacool ES Chiller 1000 is a compressor cooling system with a cooling capacity of 1000 watts, making it the perfect choice for cooling servers and workstation systems. Or for the discerning overclocker that wants a longer term solution for their highest boost clocks. Equipped with an integrated pump, the chiller reduces the need for an additional pump in the system enclosure, which opens the possibility for high power density SFF systems.

Please note that is a special order in item from Alphacool only. Please contact us prior to ordering if you'd like a more accurate lead time on this unit.

All in One

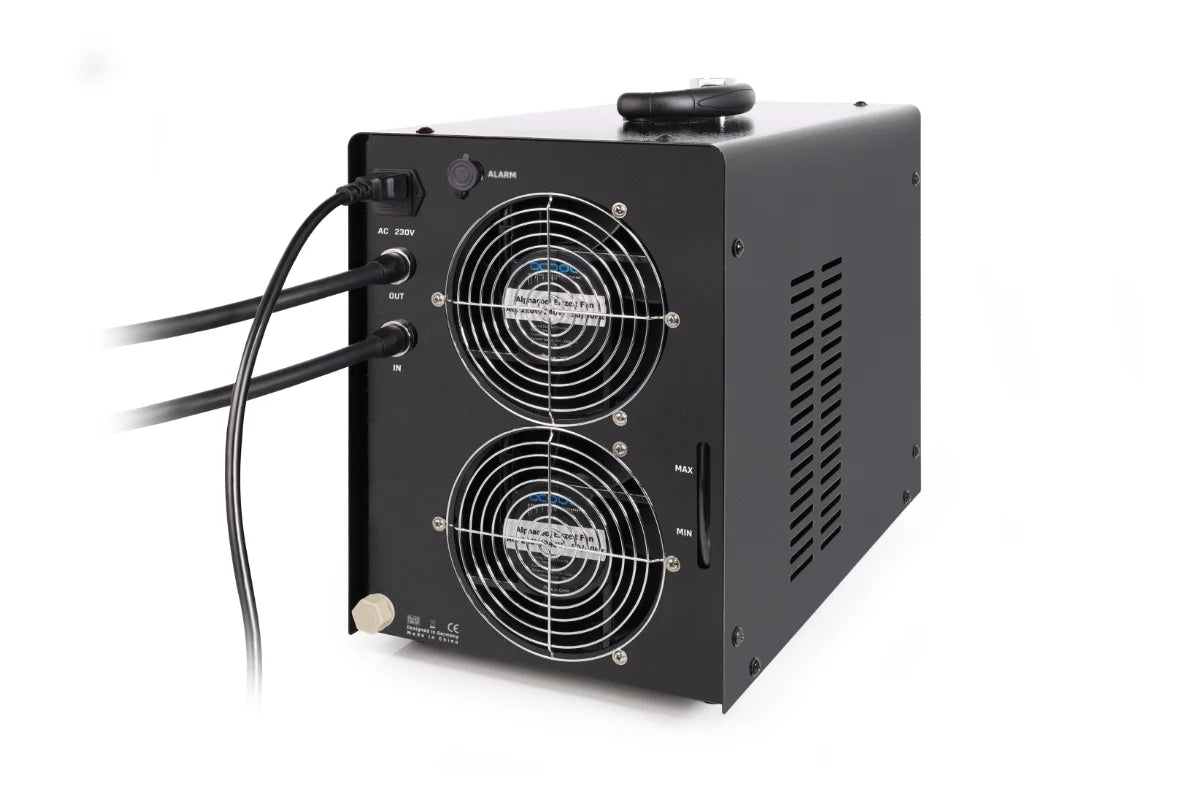

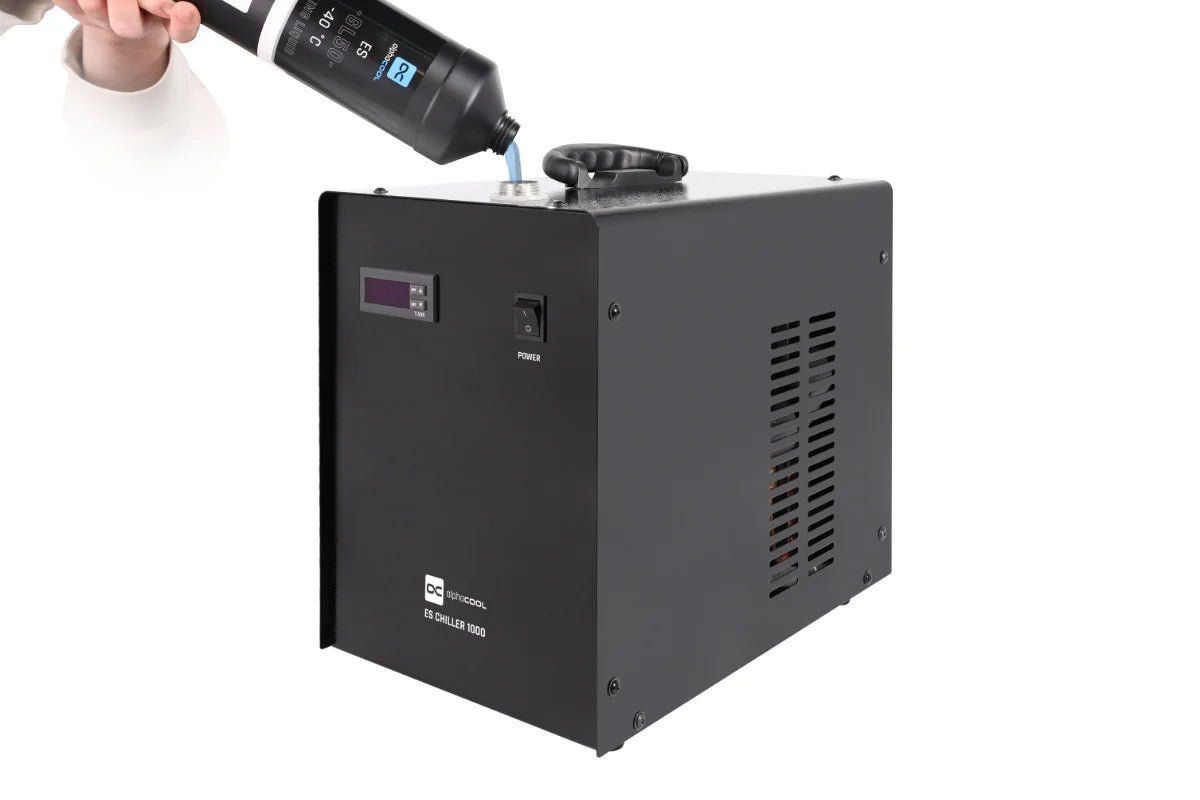

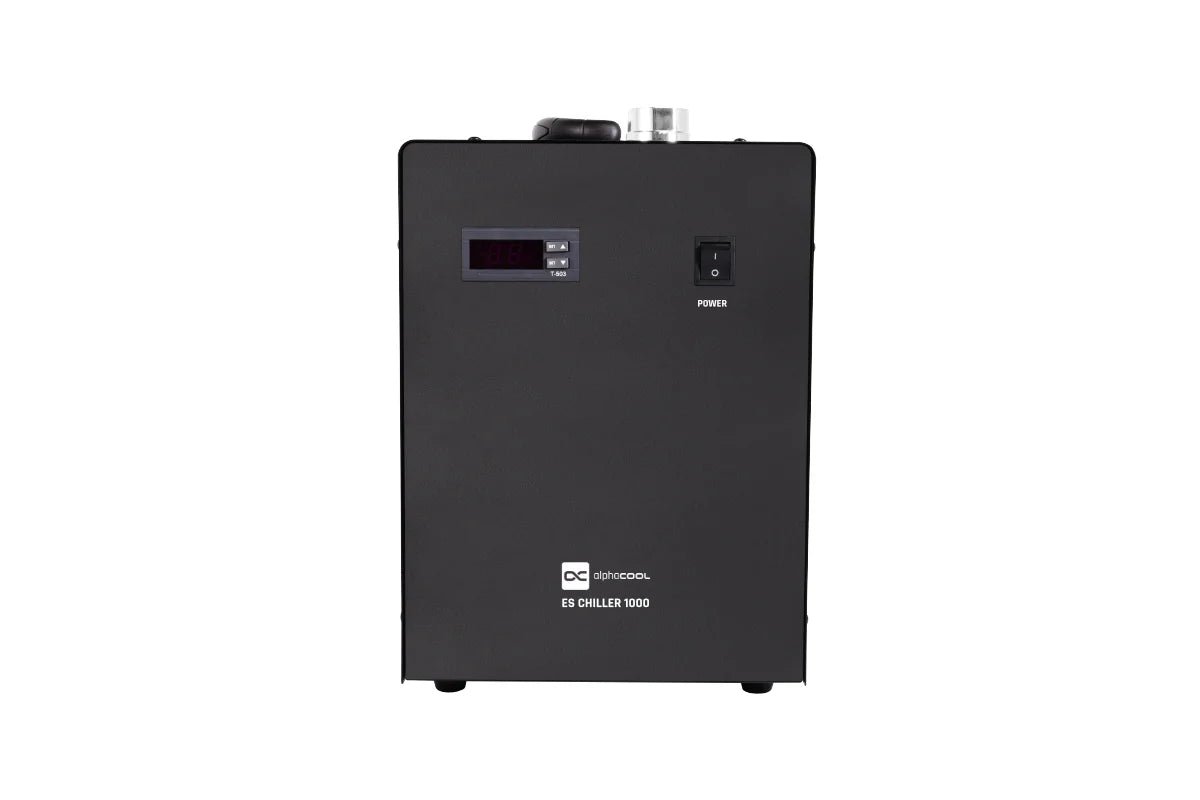

The ES Chiller is equipped with a display that can be used to configure various settings, including temperature control in precise 0.3°C increments. The G1/4" connections are compatible with common connections for water cooling systems. A built-in reservoir holds a capacity of 2 liters. Thanks to the integrated pump, with a maximum delivery head of up to 10m, the chiller can be integrated directly into the cooling loop. An extra pump is not necessary. For the sake of additional protection, the chiller is equipped with overvoltage protection for the compressor and has an alarm that warns if the flow rate is too low or the temperature is too high.

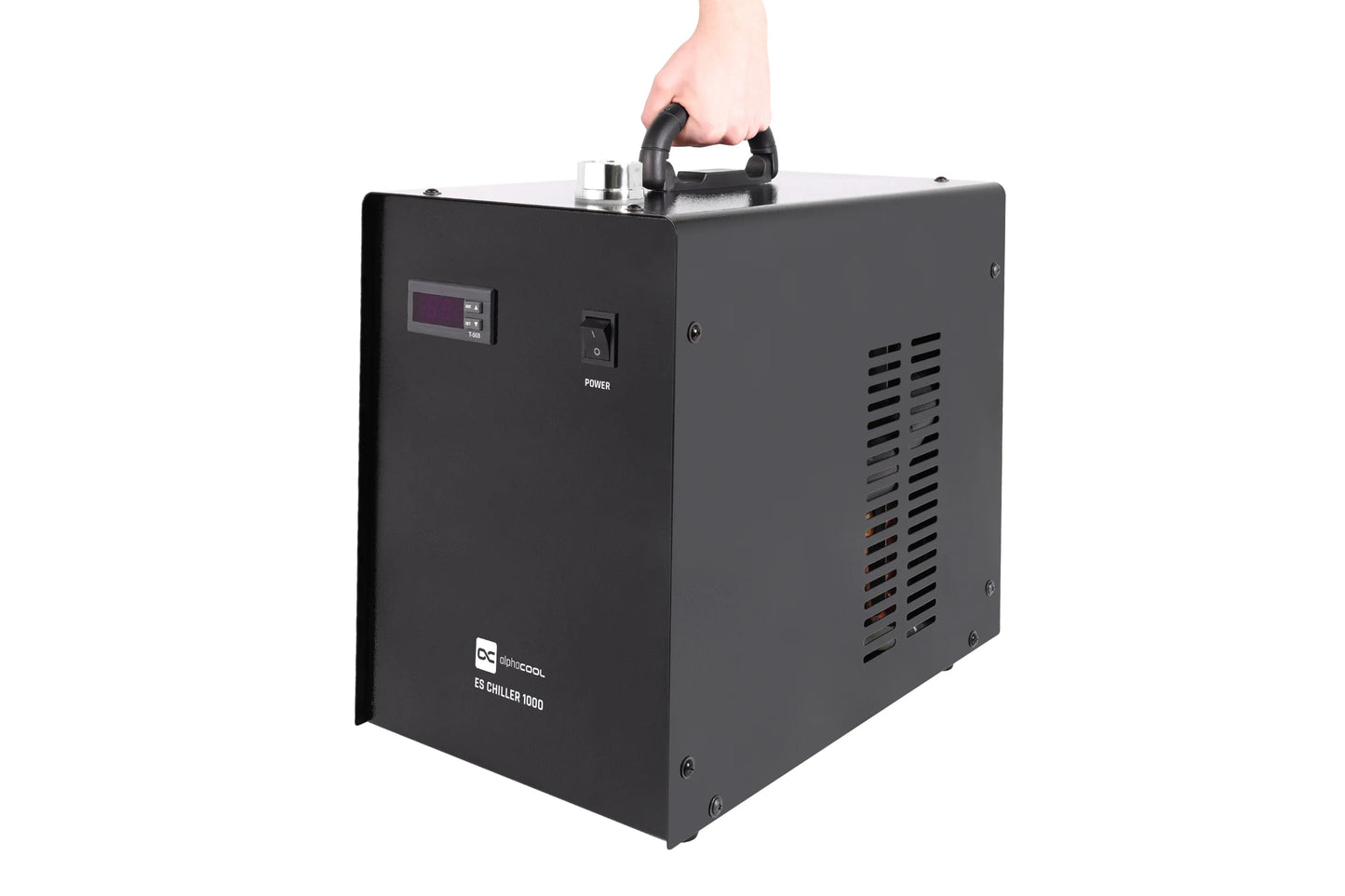

The ES Chiller 1000 is a stationary appliance with a carrying handle for easy transportation.

Technical data
Dimensions (L x W x H)	440 x 260 x 390 mm
Net Weight	16kg
Voltage	220V
Frequency	50 Hz
Current	0.4-2.68A
Compressor Power	0.44/0.46KW
Refrigeration Capacity	0.89/1.08KW
Refrigerant	R-134a
Refrigerant Charge	280g
Precision	+-0.3°C
Reducer	Capillary
Protection	Over current protection for compressor, flow alarm, over temperature alarm
Pump Power	0.03 KW
Reservoir Capacity	2 L
Inlet / Outlet	G1/4 Inner threads
max. Lift	10m
max. Flow	10 l/min
Color	black
