Alphacool ES RTX 5090 Gigabyte 1-Slot-Design GPU Block

Alphacool expands its Enterprise series with the latest single-slot water coolers for the current Nvidia GeForce RTX generation. These solutions are specifically designed for use in server cases and workstations, enabling efficient cooling even in densely populated systems.

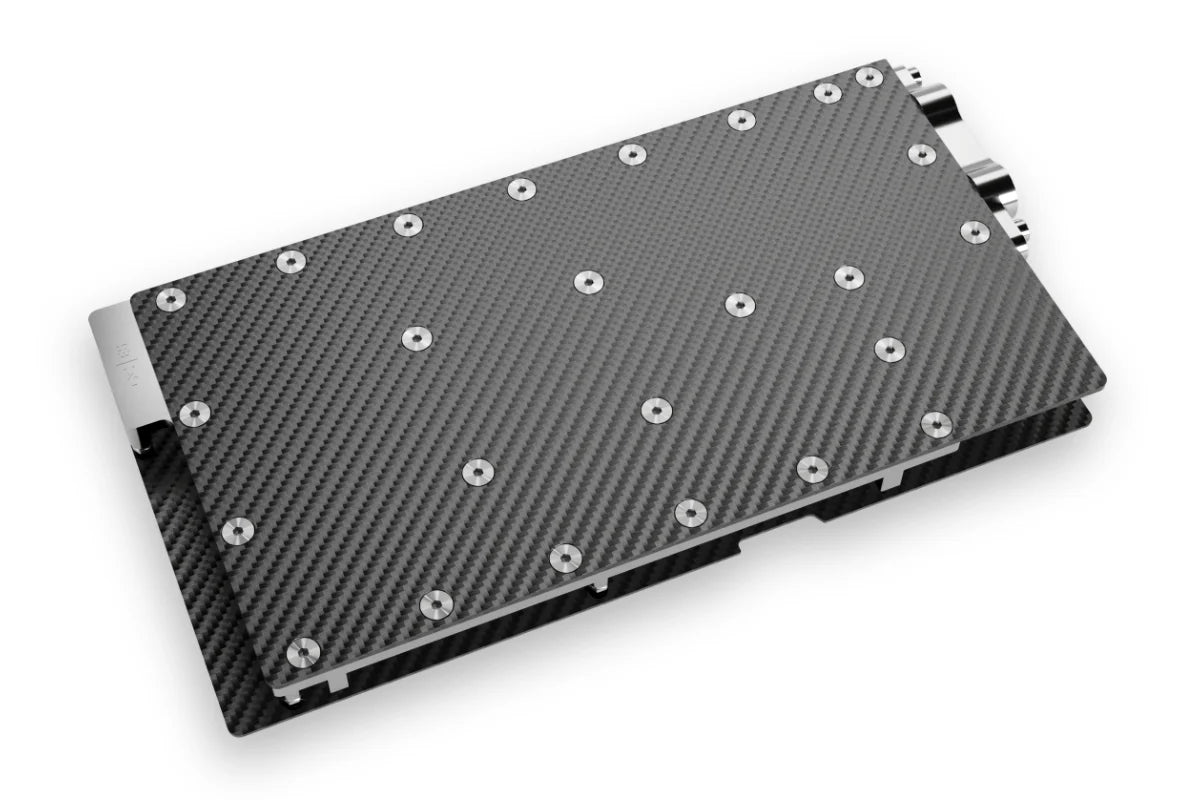

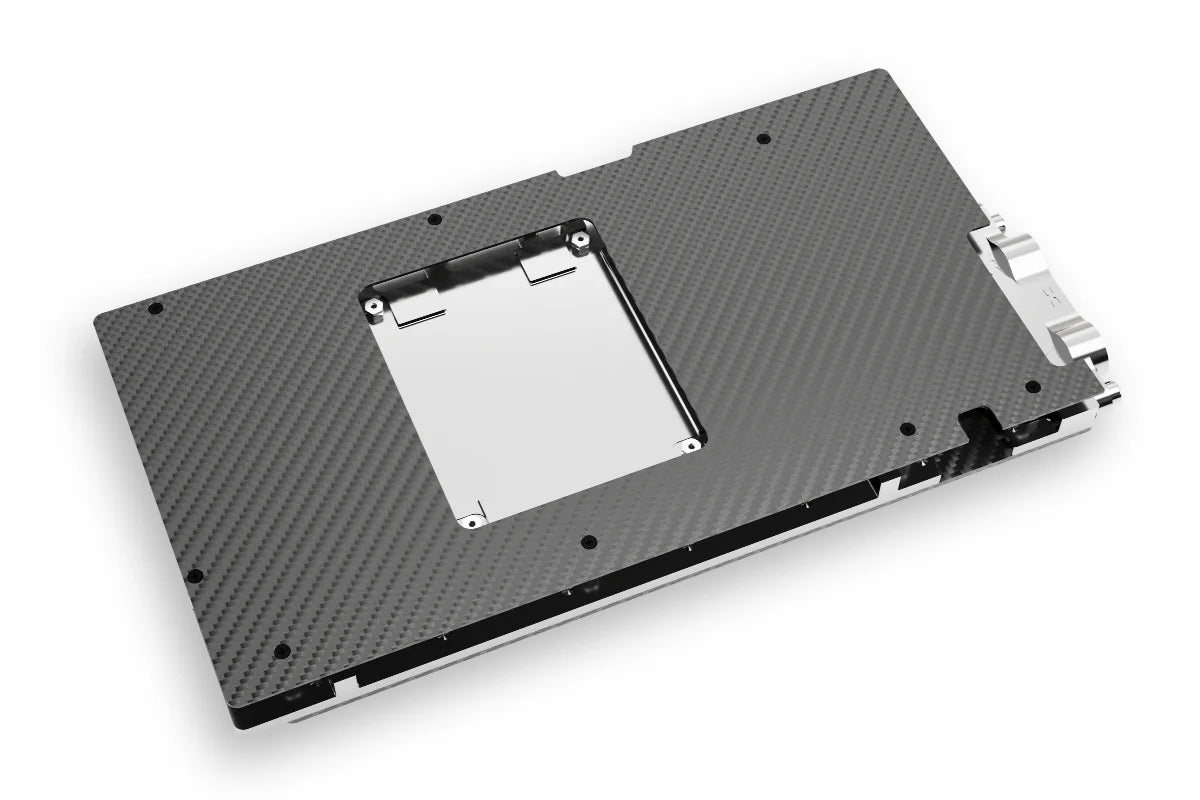

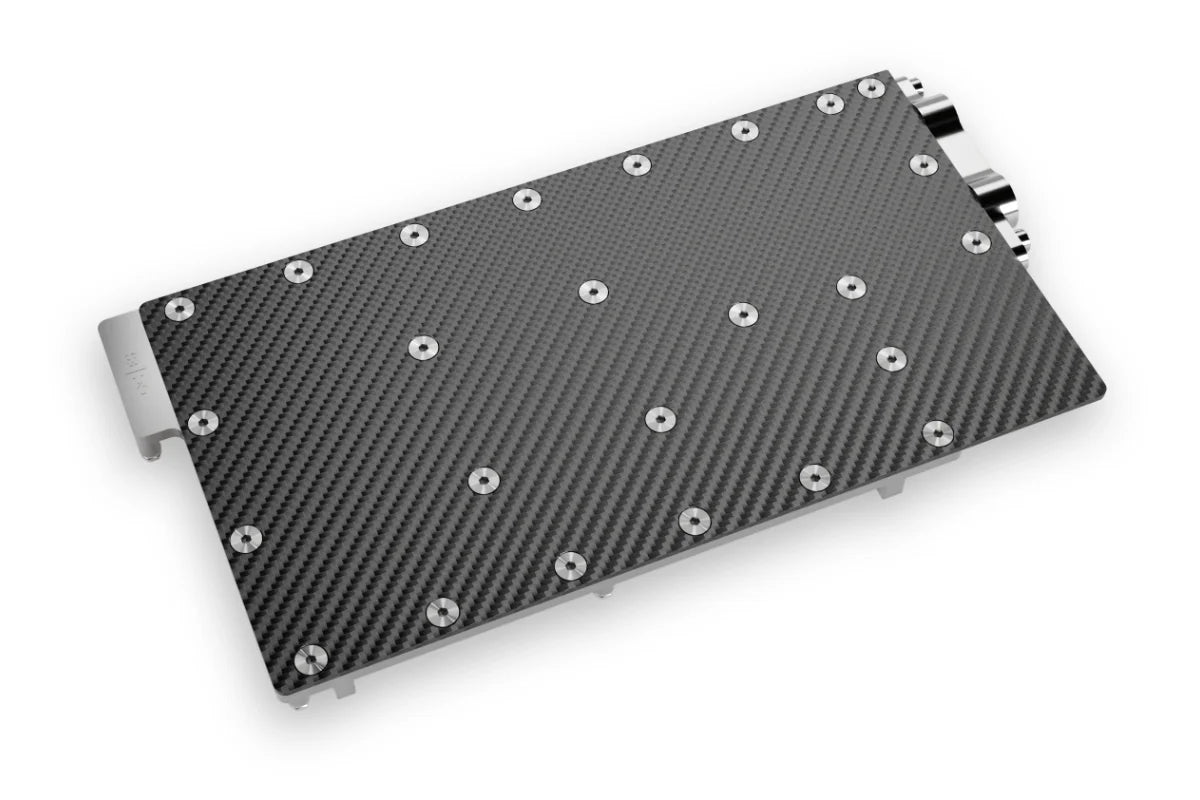

Thanks to the use of a thin and extremely stable carbon plate, this single-slot cooler could be designed without compromising the copper block. Combined with the rear-mounted brass fittings, multiple coolers can be easily stacked on top of each other or side-by-side in a server case. This well-thought-out design saves space, simplifies tubing, and allows for seamless integration into the water cooling loop.

High-quality copper is used for all water-bearing components, offering almost twice the thermal conductivity of aluminum. Furthermore, the copper is chrome-plated instead of nickel-plated, providing additional protection for the cooler. Chrome plating is more resistant to acids, scratches, and other damage, effectively preventing coating chipping.

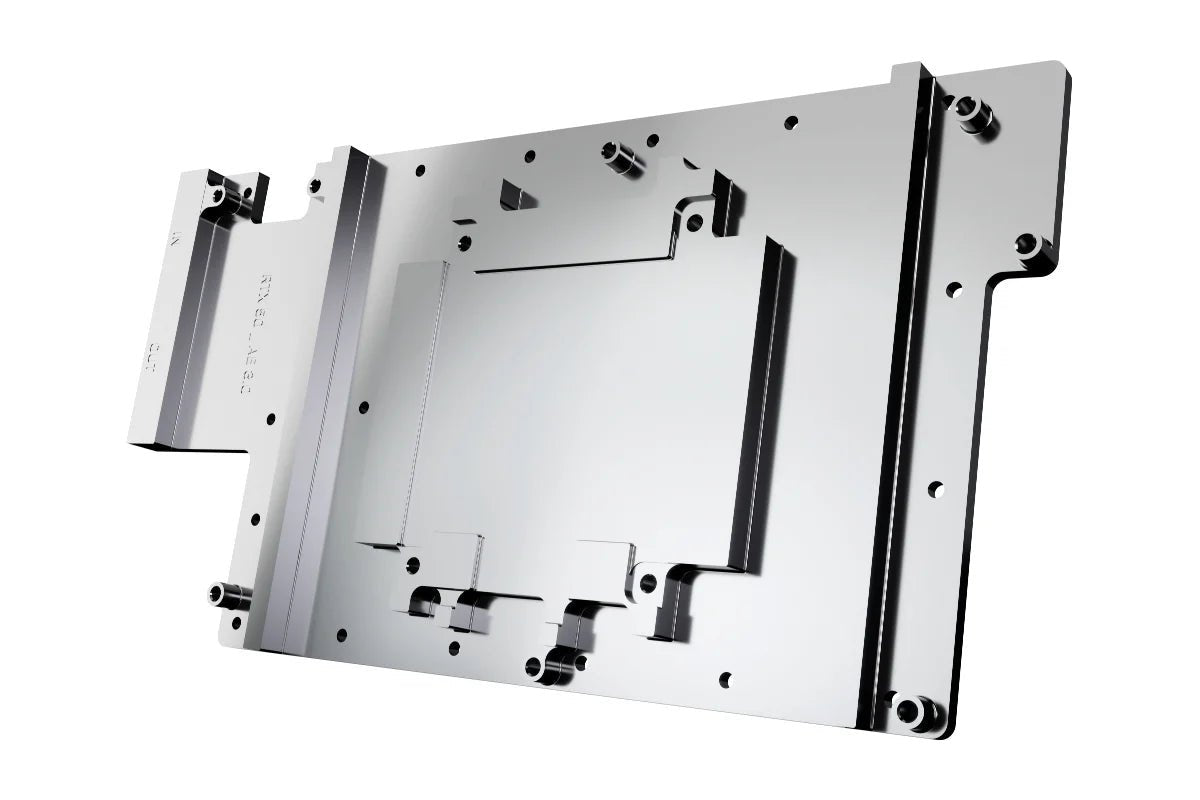

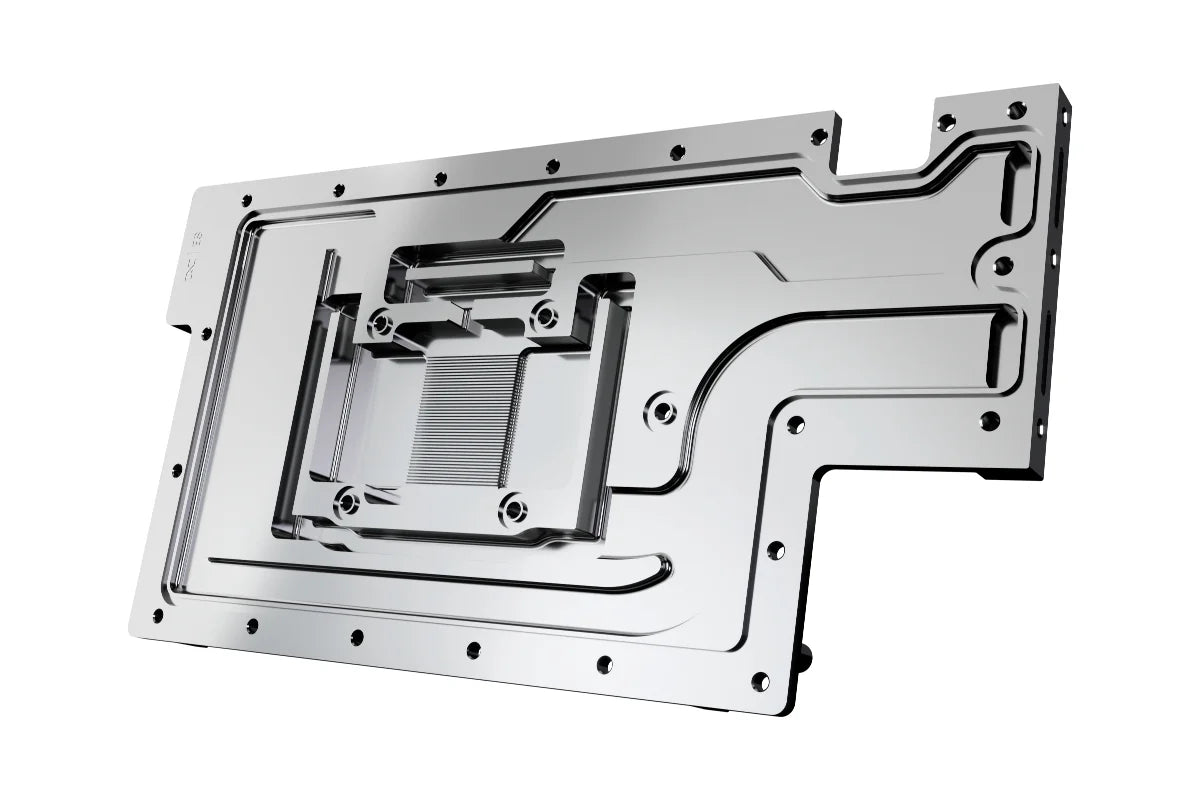

The GPU water cooler has been completely redesigned from a technical standpoint. To optimize cooling performance, the distances between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified through practical trials. These extensive tests allowed for improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new Nvidia GeForce RTX generation.

Compatibility:
- Gigabyte AORUS GeForce RTX 5090 MASTER 32G (GV-N5090AORUS M-32GD)
- Gigabyte AORUS GeForce RTX 5090 MASTER ICE 32G (GV-N5090AORUSM ICE-32GD)
- Gigabyte GeForce RTX 5090 GAMING OC 32G (GV-N5090GAMING OC-32GD)
- Gigabyte GeForce RTX 5090 WINDFORCE 32G (GV-N5090WF3-32GD)
- Gigabyte GeForce RTX 5090 WINDFORCE OC 32G (GV-N5090WF3OC-32GD)

Warranty: 3 years
🔗 Warranty terms and conditions

Instructions for use:
Please only use with clear, transparent water cooling fluids. The particles and additives in pastel-colored fluids can clog and permanently damage water cooling products such as radiators, pumps, coolers, and tubing. This may also void the manufacturer's warranty.
