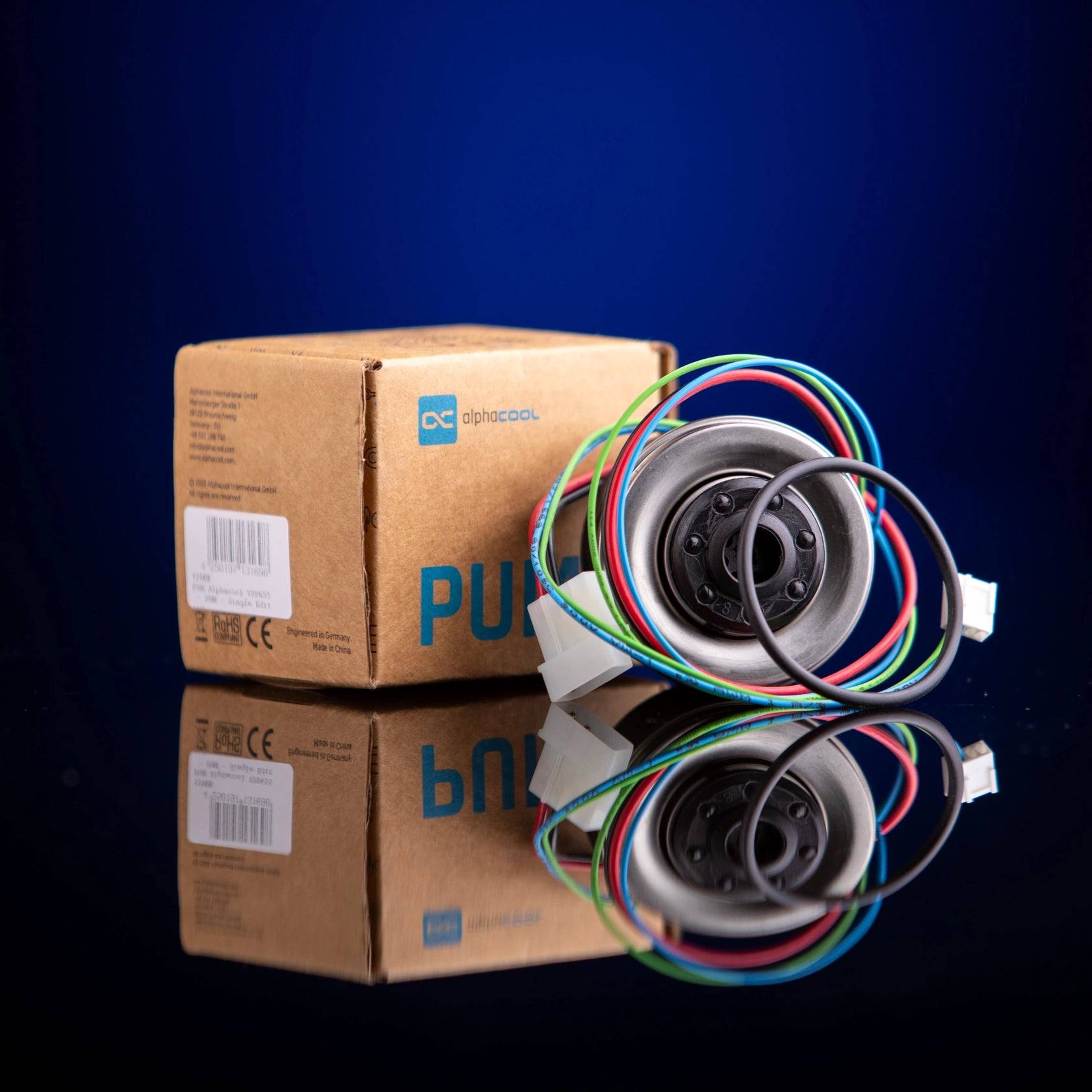

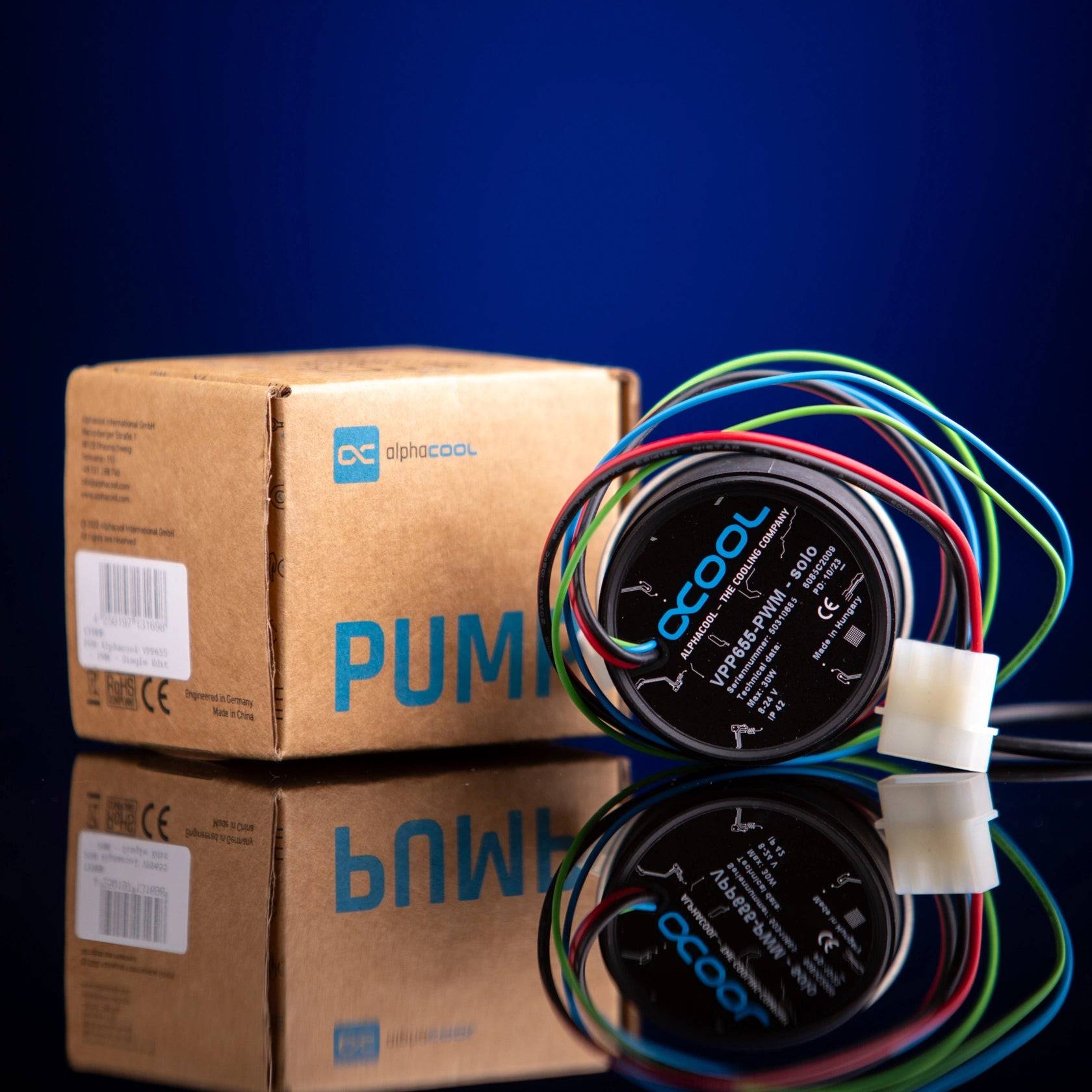

Alphacool VPP655 PWM Xylem D5 Pump Unit - Molex

Alphacool VPP655 PWM Xylem D5 Pump Unit - Molex

Regular price $140.00 AUD
Regular price Sale price $140.00 AUD
Sale Coming Soon!
GST included. Shipping calculated at checkout.

Alphacool's VPP 655 is manufactured by Xylem (also known as Laing or Lowara), who are known for their exceptional performance and reliability at an unbeatable price. The 12V pumps can simply be connected directly to the system PSU and the pump will start with your PC for maximum convenience and safety.

This pump is ideal for PC and other electronics water cooling. The DC pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic. The spherical bearing of the rotor offers many advantages: For example an increase of bearing play is impossible due to the design, allowing the pump to run quietly and smoothly over its whole lifespan. A separate magnetic shielding of the pump is not needed.

The ball motor design allows efficient operation of the pump in combination with excellent performance. The pump can simply be connected to a 12V Molex connector of the system PSU.

The special feature of this model is the fact that only the pump core itself is shipped. Why pay more for all the things you won't need when using this pump with a third-party pump top?

Datasheet D5 Pump VPP655


Voltage: 12V DC
Head Pressure 3.7m
Maximum Flow Rate 1500 l/h
Maximum Operating Temperature 60°C
Voltage Range 8-24V DC
Material Plastic, Ceramic
Maximum Power consumption 37W
Dimensions: 70 x 72 x 82mm

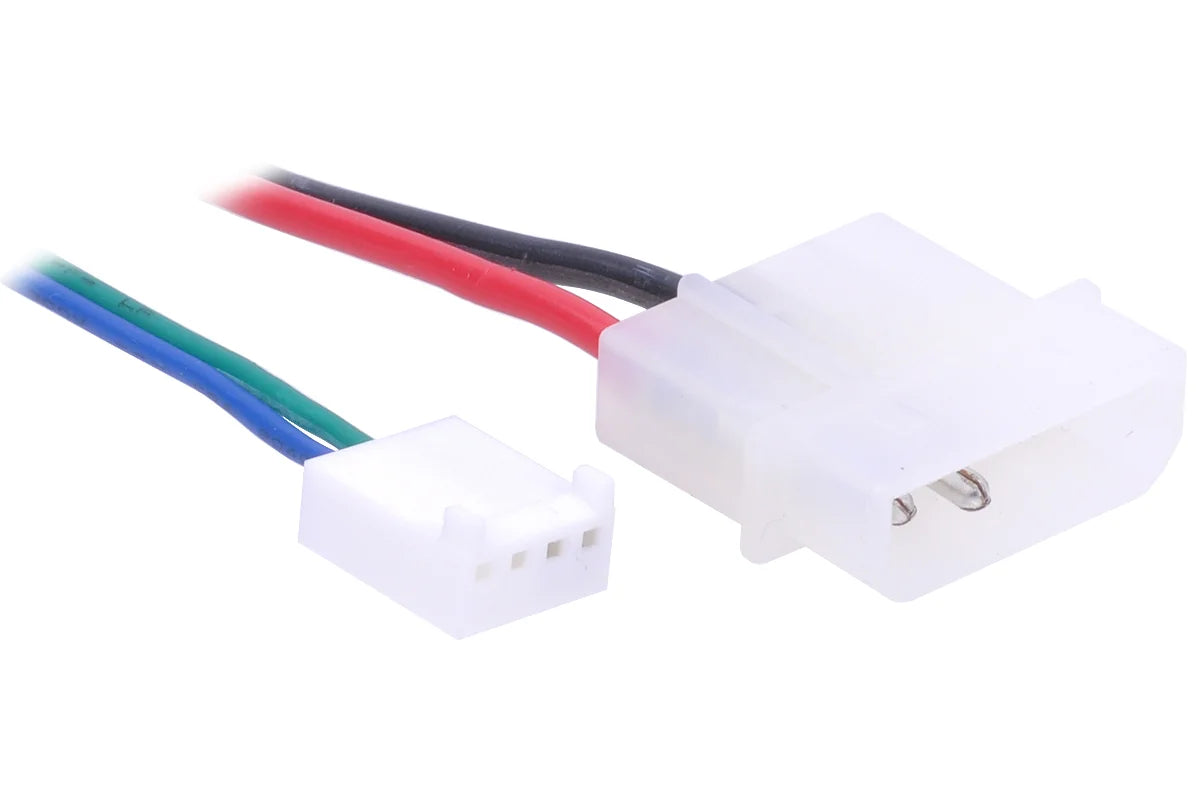

Cable Connections 4Pin Molex + 4Pin PWM


Not intended for continuous operation with fluids containing titanium dioxide or glycerin. Many solid pastel colours typically use these additives.

Alphacool's note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
