Aquacomputer LEAKSHIELD Leakage Protection System Standalone

Even before the water cooling system is put into operation for the first time, the LEAKSHIELD checks the system for leaks by creating a vacuum. The system is then checked for pressure changes.

It can also simplify filling by drawing the coolant directly from the bottle through a suction line.

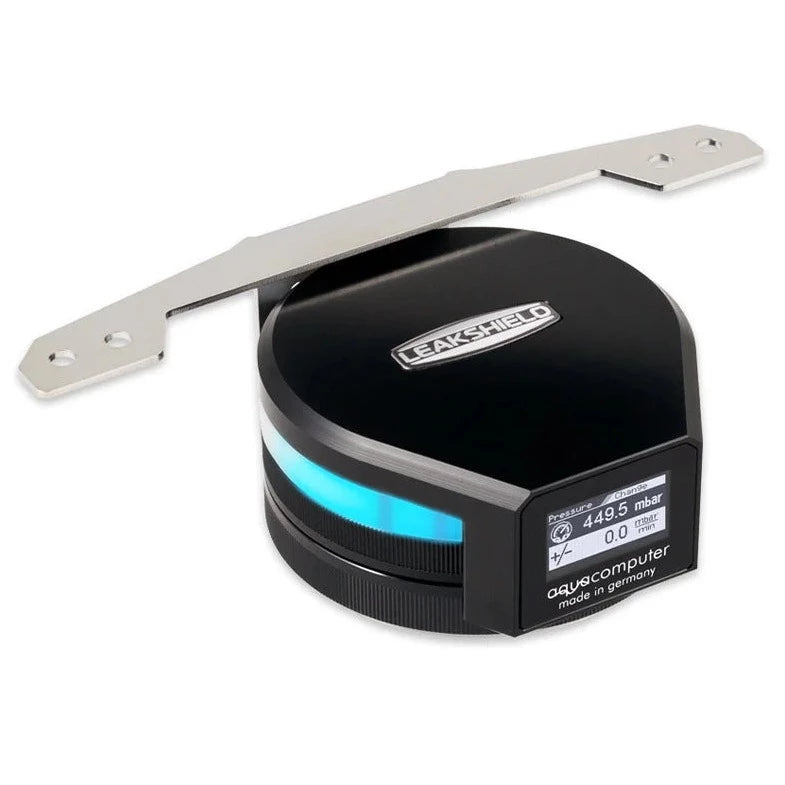

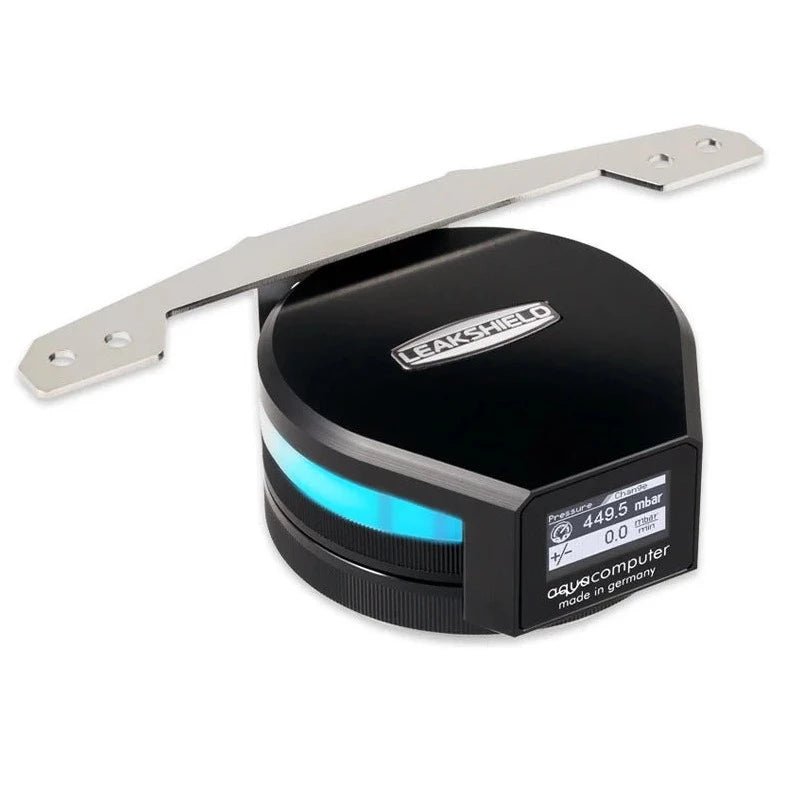

The operating status and the measured values of the LEAKSHIELD can be easily read on the OLED display. For an optimal perspective on the display, it can be rotated 360°. The integrated RGB LED lighting can be synchronised with the operating status or individually adjusted to the computer's lighting setup.

Together with the LEAKSHIELD and the aquasuite software, all data can be displayed on the PC via the USB interface. Other data from the aquasuite can also be called up on the OLED display.

An alarm can also be set so that the unit can make itself known through the integrated alarm buzzer if a value is under- or exceeded. The alarm can also be displayed via the OLED display and the RGB LEDs.

Technical Data:

• Dimensions without mounting bracket: approx. 72 x 77 x 36 mm
• Dimensions with mounting bracket: approx. 140 x 82 x 46 mm
• Connection thread size: G1/4
• Generated negative pressure: max. -450 mbar
• Supply voltage: 5 V DC via USB
• Current consumption: max. 500 mA
• Display: 128 x 64 pixels OLED

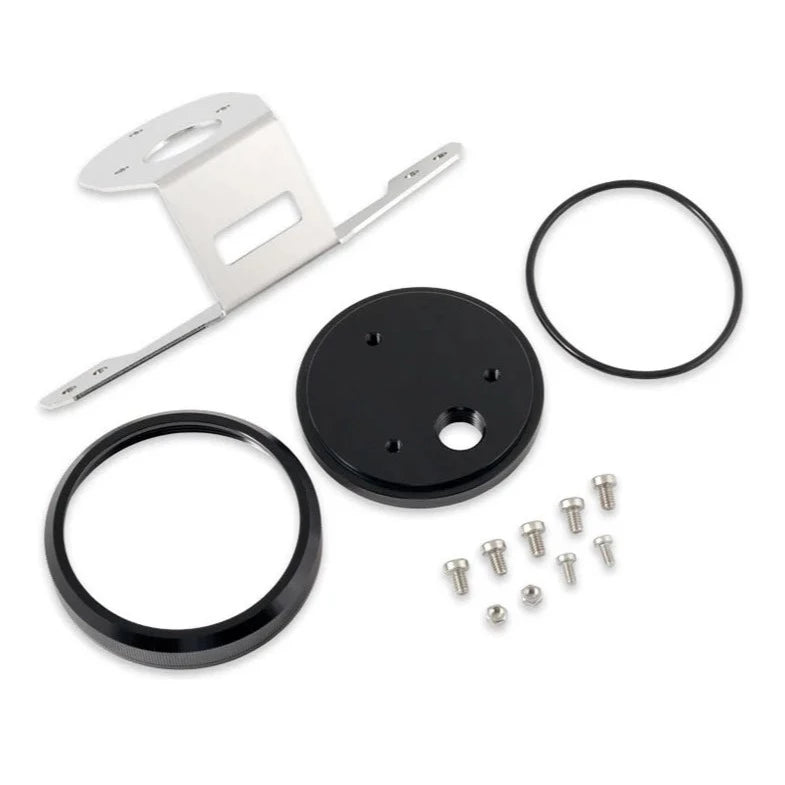

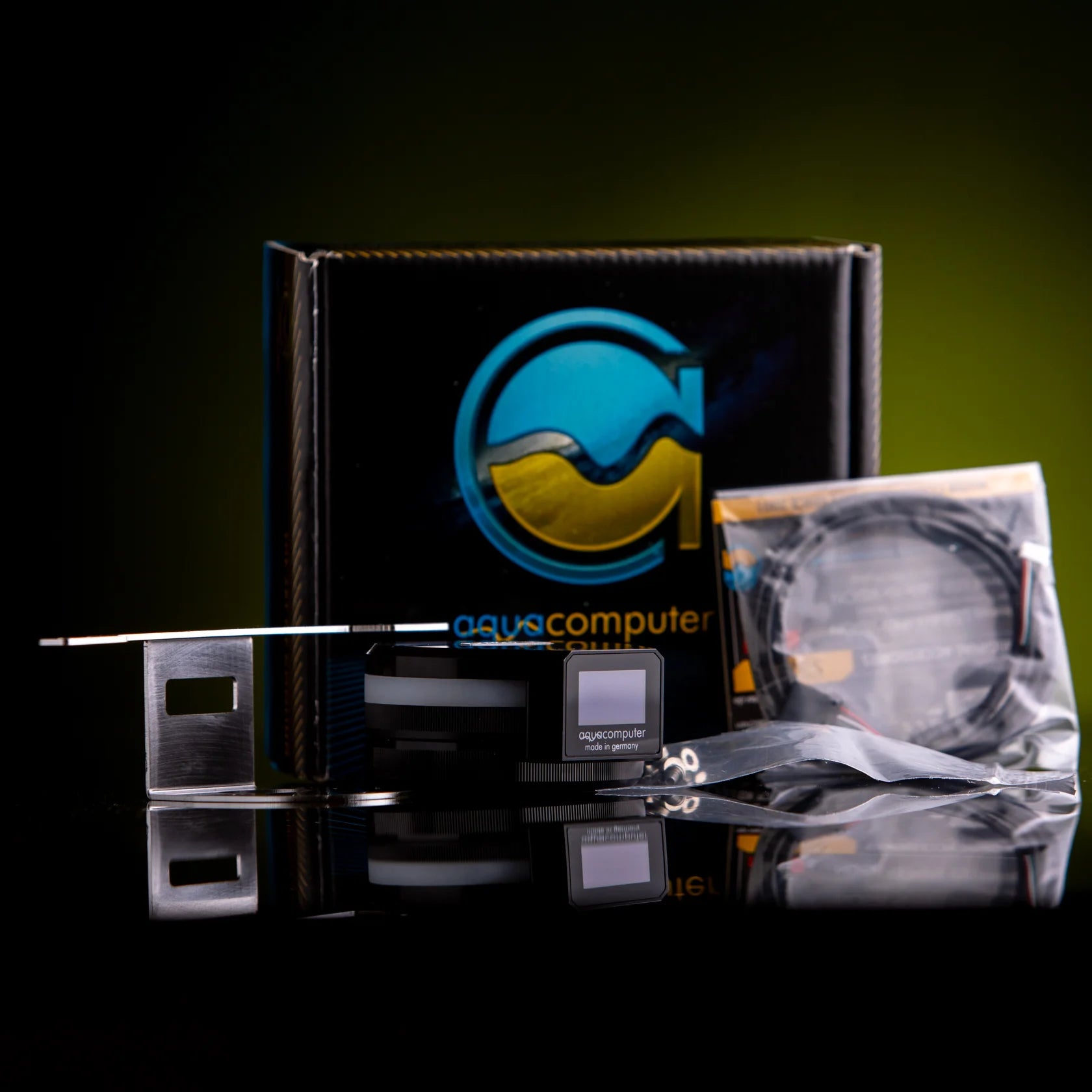

Scope of delivery:

• LEAKSHIELD Standalone

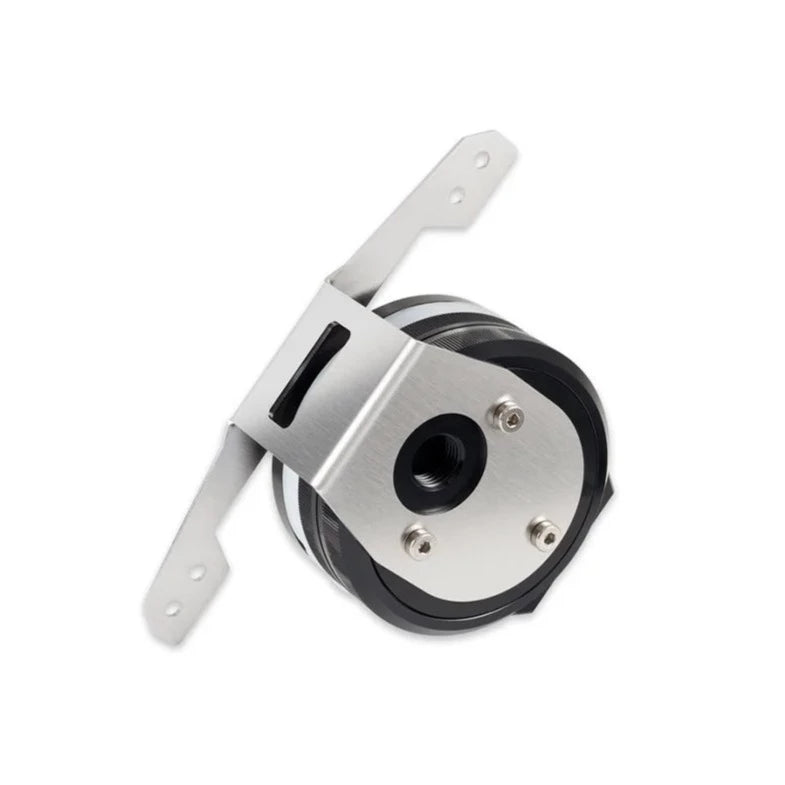

• Stainless steel bracket
• Mounting material
• One internal USB cable, length approx. 100 cm

System requirements:

• Windows 8.1 or newer
• Internal USB 2.0 port
