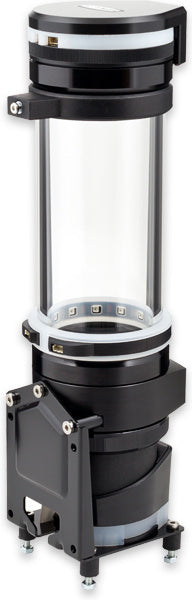

Aquacomputer Ultitube D5 150 PRO reservoir with D5 NEXT & Leakshield

All reservoirs of the ULTITUBE series are equipped with a borosilicate glass tube. In contrast to acrylic glass, which is often used for tube reservoirs, borosilicate glass is extremely hard and scratch-resistant, features superb thermal and chemical resistance and a very low thermal expansion. The glass tube has an outer diameter of 65 mm and a wall thickness of 5 mm. Black anodized aluminum rings are securely bonded to both ends of the glass tube, and the rings do not get into contact with the coolant. Base and lid of the ULTITUBE series reservoirs are made from resilient acetal and screwed to the glass tube. After unscrewing the lid, a large opening ensures easy filling.

At the bottom of the reservoir, an integrated stainless steel mesh filter element effectively separates both particles and air bubbles from the coolant. The mesh filter is integrated into a molded rubber part and can be rinsed with tap water. The gasket between glass tube and lid is also a molded rubber part, designed to be securely held in the right position during fastening of the lid.

The PRO version of the ULTITUBE D5 features a pressure equalization membrane, directly integrated into the lid of the reservoir. The membrane allows gases to pass and thereby continuously equalizes the internal pressure of the liquid cooling loop and the ambient pressure, while completely blocking coolant from leaking.
Also included in delivery is a RGBpx compatible LED ring with 13 addressable LEDs that can be used for effective illumination of the reservoir. An Aqua Computer device with RGBpx output is required for LED operation (for example D5 NEXT, not included in delivery). A connector at the end of the strip can be used to connect another RGBpx component consecutively.
For additional, vibration dampening fixation of the reservoir in the upper area of the glass tube, a fixation ring made from rubber with a stainless steel insert is included.

All D5 pumps produced by Aqua Computer can be installed into the base of the reservoir, additionally identically constructed pumps by other manufacturers. The reservoir has been designed for optimum flow characteristics, reducing noise and vibration of the pump to a bare minimum. The pump is secured using a slim threaded ring made from black anodized aluminum. The reservoir can not be used without a pump.

Mounting material for installation to a side/rear panel or to the bottom of a PC case is included in delivery. For decoupling, four soft rubber buffers are included.

Technical details:
Coolant capacity: approx. 350 ml
Connection threads: G1/4
D5 NEXT Supply voltage: 5V, 12V
D5 NEXT Maximum power consumption: 65 W (including fan and RGBpx output)
D5 NEXT Maximum fan output power: 25 watts
D5 NEXT Maximum pump head: 3,7 m / 370 mbar

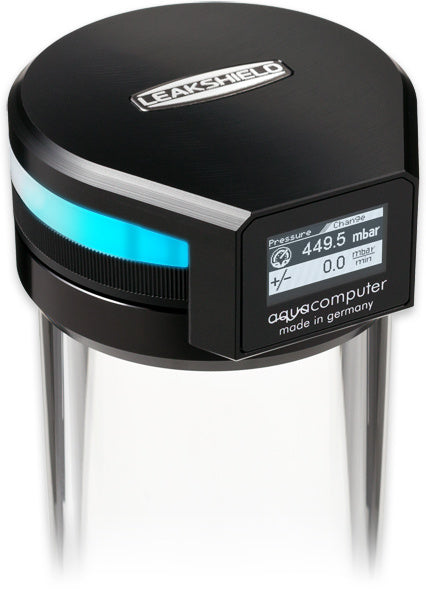

LEAKSHIELD Generated negative pressure: max. -450 mbar
LEAKSHIELD Supply voltage: 5 V DC via USB
LEAKSHIELD Current consumption: max. 500 mA

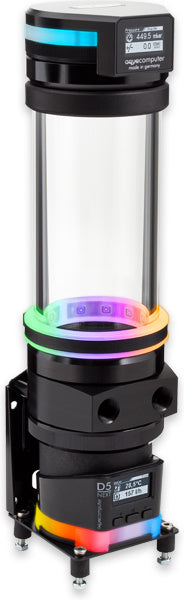

Dimensions incl. D5 NEXT pump and LEAKSHIELD: approx. 72 x 77 x 277 mm
(All dimensions without mounting material)
The number 50/100/150/200 in the Ultitube series product name refers to the length of the glass tube in millimeters.

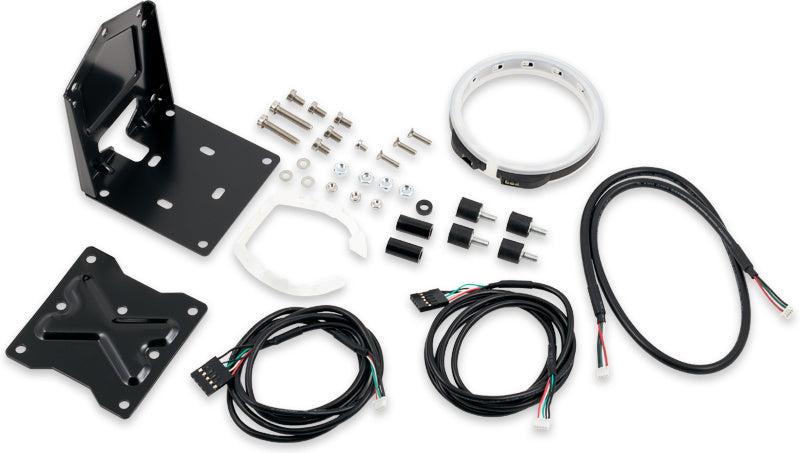

Scope of delivery:
One reservoir with integrated pump
RGBpx compatible LED ring
RGBpx cable, length 50 cm
Rubber fixation ring with stainless steel insert
Two internal USB cables, length approx. 100 cm
Mounting material

System requirements
Windows 10 or newer
Internal USB 2.0 port

Notes on the aquasuite software:
When you activate this product you will receive the current version of the aquasuite software including an upgrade service for at least eighteen (18) months. After expiration of the upgrade service you may use and reinstall the latest version available during the upgrade period without a time limit.
The update service can optionally be extended or renewed at any time for a fee.
Please note that an internet connection is required for the installation and activation of the aquasuite software.
Further information about the update service and the activation of the aquasuite software can be found here.

Please note: Fittings are not included in delivery, please order separately.
