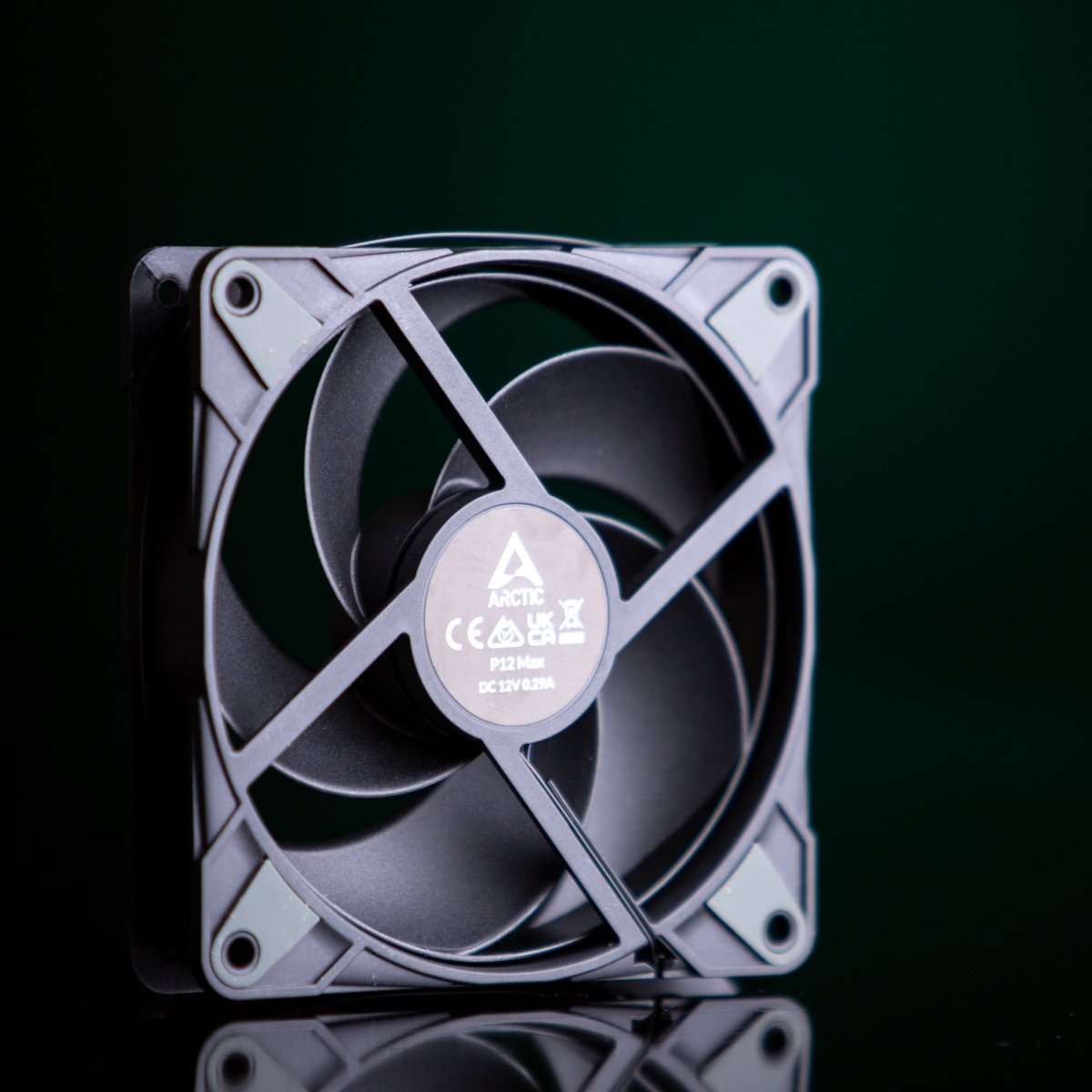

Arctic Cooling P12 MAX PWM 120mm High Performance Fan

Arctic Cooling P12 MAX PWM 120mm High Performance Fan

Regular price $17.00 AUD
Regular price Sale price $17.00 AUD
Sale Coming Soon!
GST included. Shipping calculated at checkout.

Designed for Continuous Operation

The ball bearing of the Japanese manufacturer NMB ensures a particularly long service life. Compared to sleeve bearings, ball bearings produce a significantly higher bearing noise. Therefore, the P12 Max is the perfect choice if you want to ensure permanent operation at high speeds. For silent enthusiasts, we recommend models with sleeve bearings, such as the P12 PWM PST.

Extremely Wide Speed Range

Building upon the success of the P12 PWM, the P12 Max extends the controllable speed to an impressively wide range from 200 rpm up to 3300 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P12 Max provides a significant performance boost to existing air and water cooling solutions.

Maximum Performance — Without Compromises

The P12 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes, and mesh. Therefore, the P12 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.

0 dB Mode - Zero rpm

The fan speed can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P12 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.

Improved Stability

The P12 Max features a closed fan-wheel design. The advantage of this fan wheel combination is pressure stability without compromise. In scenarios with high-pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.

Maximum Smoothness, Minimum Vibration

Due to a sinus-magnetizing, the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.


General Data Performance
Fan Speed: 200–3300 rpm, (0 rpm under 5% PWM)
Airflow: 81.04 cfm | 137.69 m³/h
Static Pressure: 4.35 mmH2O
Noise Level: 0.6 Sone, 26.3 dB
Operating Ambient Temperature: 0—40 °C
MTTF: > 500.000 Hours
Warranty: 6 Years
Fan Frame: Standard
Control Type: Pulse Width Modulation — PWM
Connector: 4-Pin Connector
Fan Bearing: Dual Ball Bearing
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 3.9 V
Current | Voltage: 0.29 A | 12 V DC
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 184 g
