Noctua NF-A12X25 G2 PWM 120mm Fan chromax.black
Noctua NF-A12X25 G2 PWM 120mm Fan chromax.black
Couldn't load pickup availability
State-of-the-art quiet cooling performance for PC cases and water cooling radiators in a sleek all-black design: The chromax.black version of the award-winning NF-A12x25 G2 120mm fan.
Succeeding the iconic NF-A12x25, the NF-A12x25 G2 has quickly established itself as a new benchmark for premium quality quiet 120x25mm fans. Its advanced aerodynamic engineering featuring a novel Progressive Bend impeller design with a Centrifugal Turbulator hub, winglets, and a record tight tip clearance of only 0.5mm enables the G2 model to provide a significant boost in performance-to-noise efficiency over its renowned predecessor: Whether it’s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on water cooling radiators, where its etaPERF™ motor with SupraTorque™ allows leveraging extra torque headroom, the NF-A12x25 G2 is a proven winner.
The chromax.black edition combines the NF-A12x25 G2’s Sterrox® liquid-crystal
Next-generation performance
Building upon the success of the original NF-A12x25, the G2 version
introduces a refined blade geometry and a novel motor design, both of
which enable a significant boost in performance-to-noise efficiency. This
enables the NF-A12x25 G2 to achieve superior results across various
applications, including water cooling radiators, heatsinks, and case fan
setups.
Highly optimised P/Q curve for all applications
The NF-A12x25 G2’s sophisticated aerodynamic design allows for a pressure to airflow (P/Q) curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 G2 is a true jack-of-alltrades with excellent performance in both static pressure demanding and airflow demanding applications.
Excellent on-application acoustics
While many fans produce unpleasant, high-pitched noises when installed in typical applications such as on heatsinks or radiators, the NF-A12x25 G2 has been carefully fine-tuned for optimal on-application acoustics. It produces a smooth, pleasant frequency profile and surprisingly low sound pressure levels (SPL) when working against back pressure.
6-year manufacturer’s warranty
Noctua fans are renowned for their impeccable quality and outstanding
longevity. Like all Noctua fans, the NF-A12x25 G2 features an MTTF
of more than 150,000 hours rating and comes with a full 6-year
manufacturer’s warranty.
Key specifications
|
Size (Form factor)
|
120 x 120 x 25 mm (square)
|
|
Speed range
|
0 – 1800 rpm
|
|
Airflow (max.)
|
107.3 m³/h (63.15 CFM)
|
|
Acoustical noise (max.)
|
22.5 dB(A)
|
|
Static pressure (max.)
|
3.14 mm H₂O
|
|
Rated voltage
|
12 V
|
|
Connector
|
4-pin
|
|
Colour
|
Black
|
|
Warranty
|
6 years
|

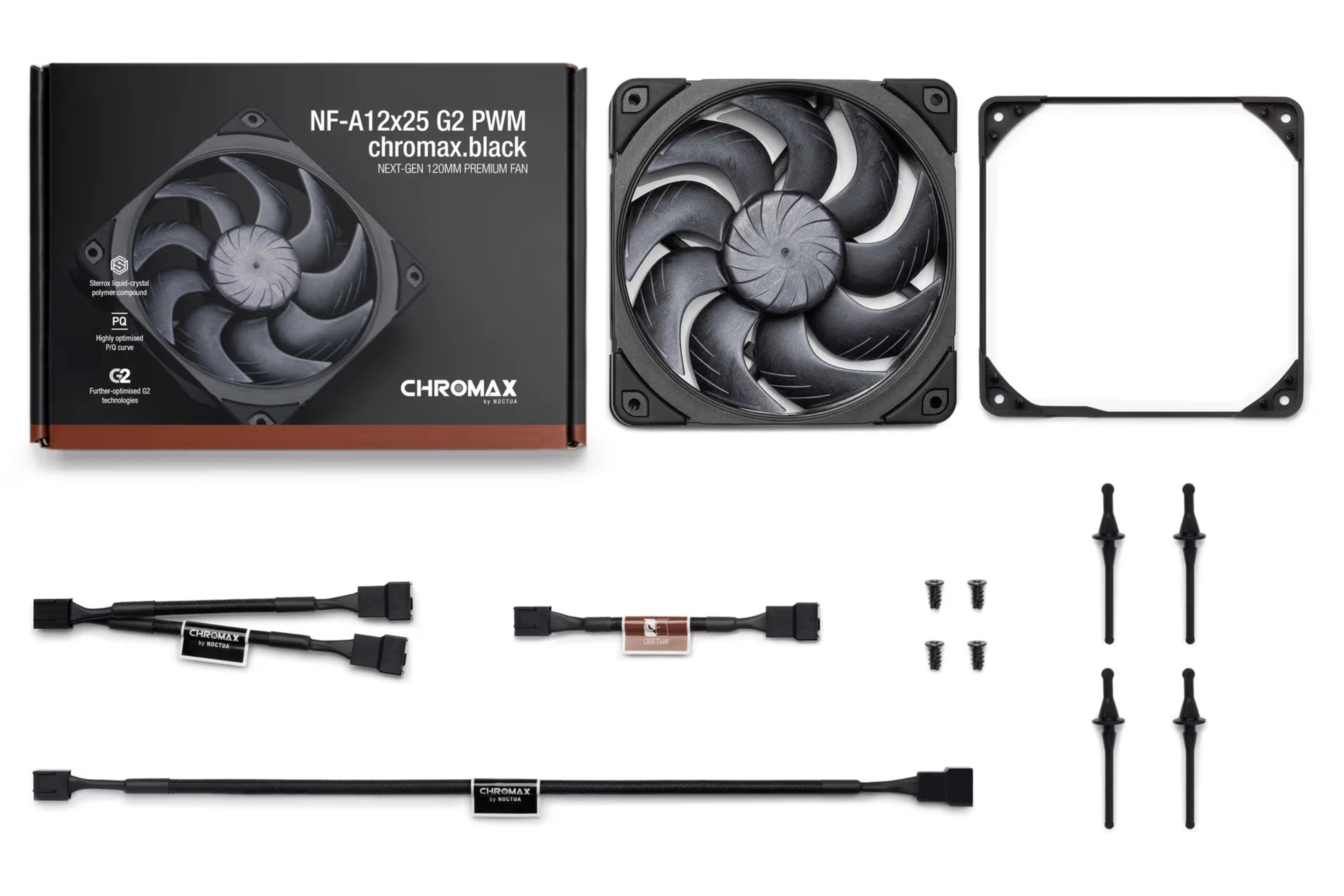

Scope of delivery
- NA-RC7 Low-Noise Adaptor (L.N.A.)
- NA-YC1 chromax.black 4-pin PWM splitter cable
- NA-EC1 chromax.black 30 cm extension cable
- 4x NA-AV2 black anti-vibration mounts
- NA-AVG1 chromax.black anti-vibration gasket for water cooling radiators
- Fan screws
