SPECIFICATION
|
| Product Name |
FORKIS DDC ULTRA |
| Product Number |
0R40B00265 |
| Q'ty |
1 pcs |
| Dimension [W×D×H] |
80×84×45 mm |
| Material |
Aluminum (exterior, not in contact with coolant) + POM + nickel-plated |
| Weight |
680 g [w/o clip] |
| Screw Threads |
G 1/4" |
|
PUMP
|
| Bearing type |
Ceramic Bearing |
| Maximum Head |
4 meters [Max.] |
| Maximum Discharge |
750 L/H |
| Maximum Pressure |
21.7 PSI |
| Life Expectance |
50,000 hrs |
| Noise Level |
45 dBA [Max.] |
| Speed |
1800~4,800 RPM |
| Voltage Rating |
DC12V |
| Input Current |
1.5A ±10% |
| Connector |
PWM 4-PIN header /SATA header |
|
APPLICATION
|
| Intel® |
All Socket LGA 18xx / 17xx / 115x / 1200 / 1366 / 201x / 2066 CPU (Core™ i3 / i5 / i7 / i9 CPU) |
| AMD® |
All AM5/AM4/AM3+/AM3 CPU |

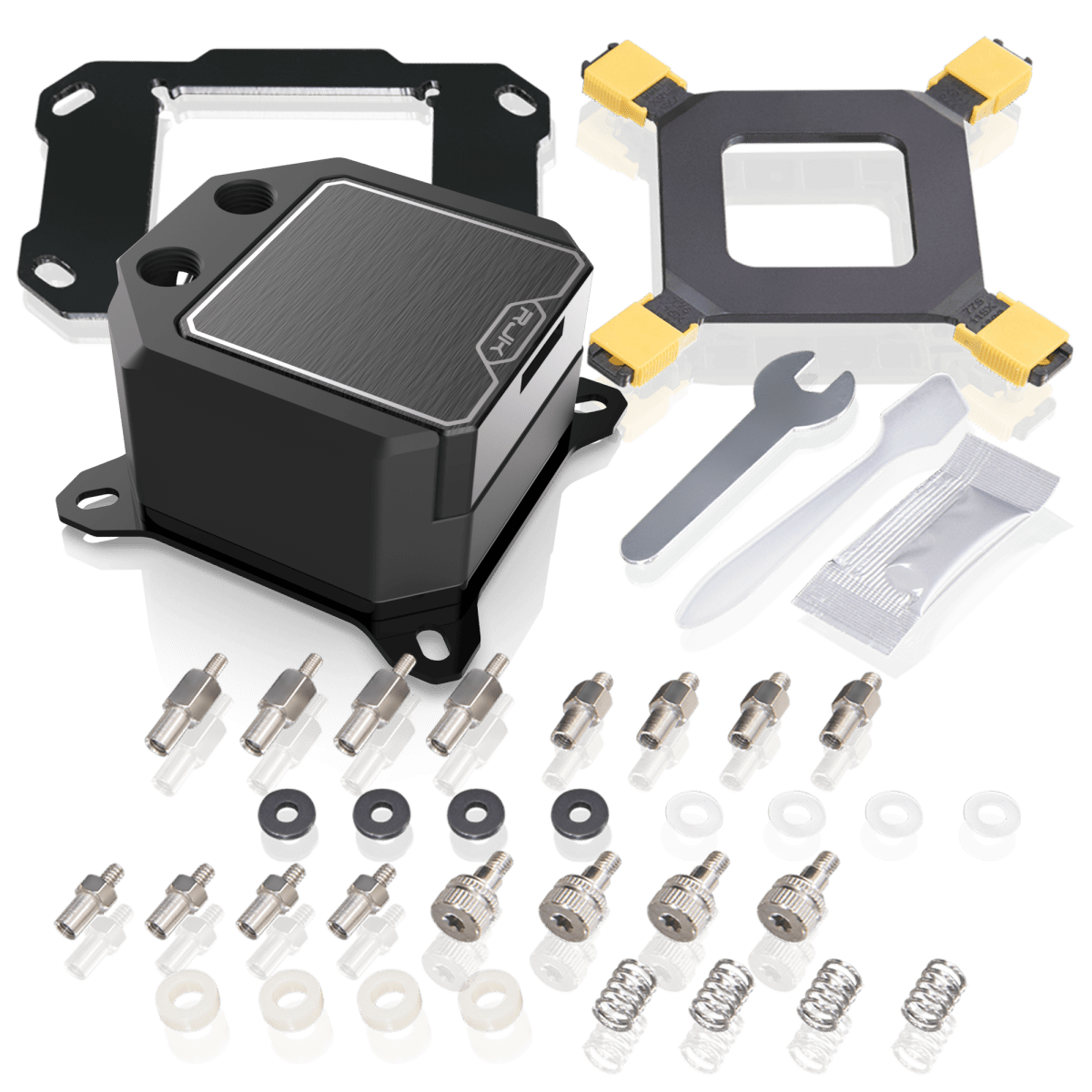

Scope of delivery:
FORKIS DDC ULTRA × 1
Intel Back plate × 1
AMD Bracket × 1
Cross Metal screw × 4
Spring × 4
Washer × 4
Intel LGA 115X/1700 × 4
Intel LGA 2011/2066 × 4
Intel LGA 115X/1700 × 4
AMD AM2/3/4 × 4
AMD AM2/3/4/5 × 4
Thermal grease × 1
Plastic brush × 1
Wrench × 1
Installation Guide × 1
