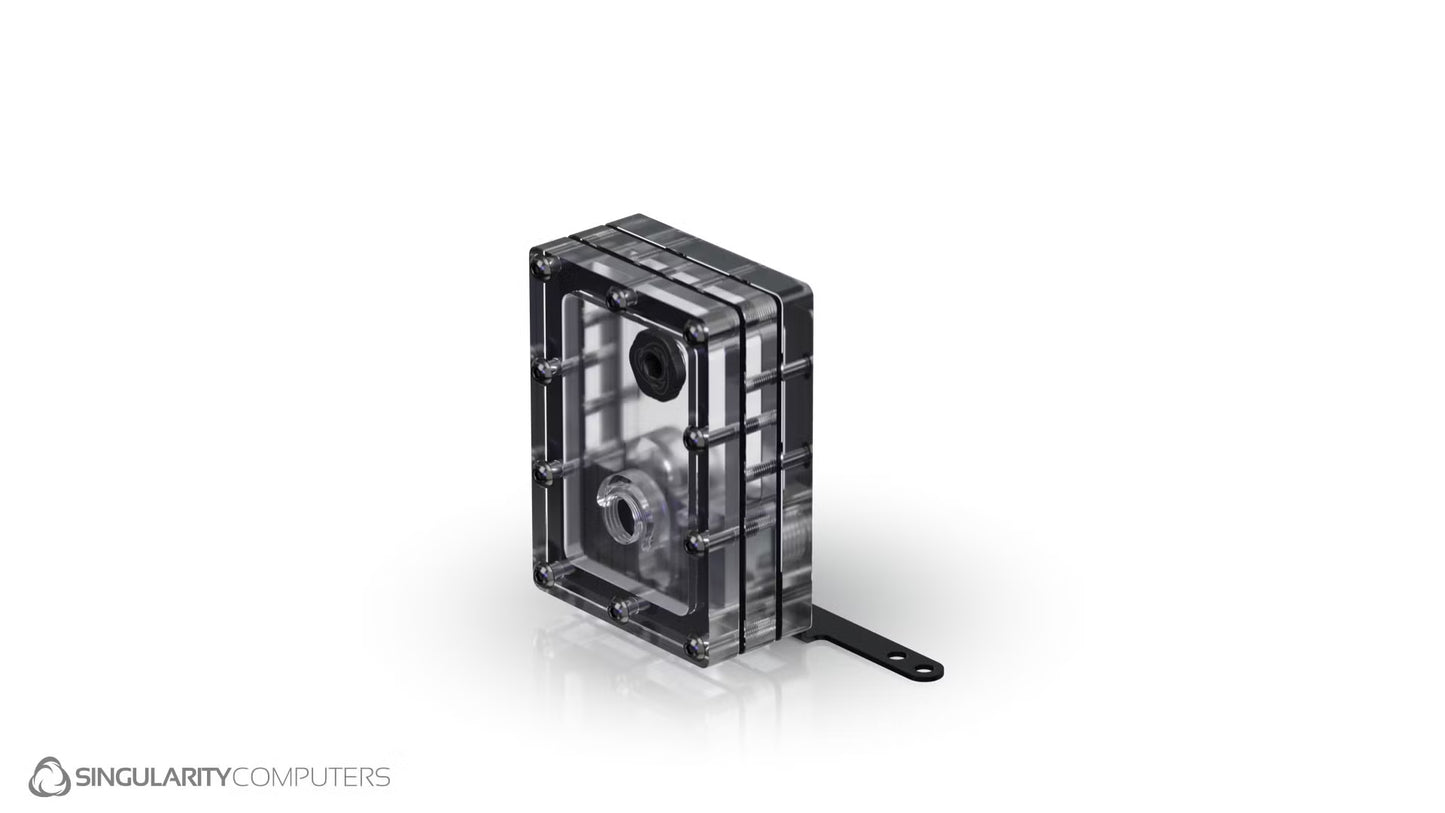

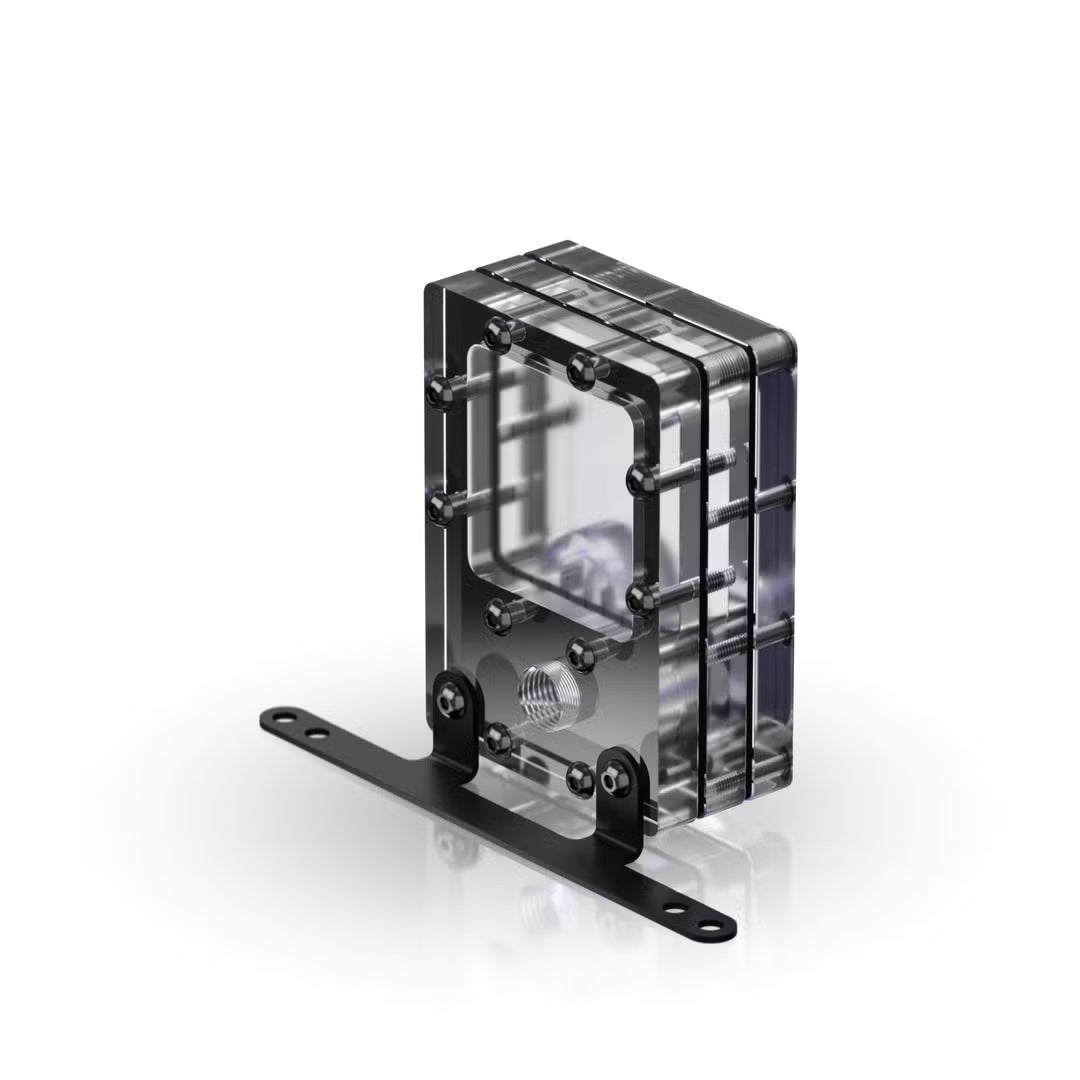

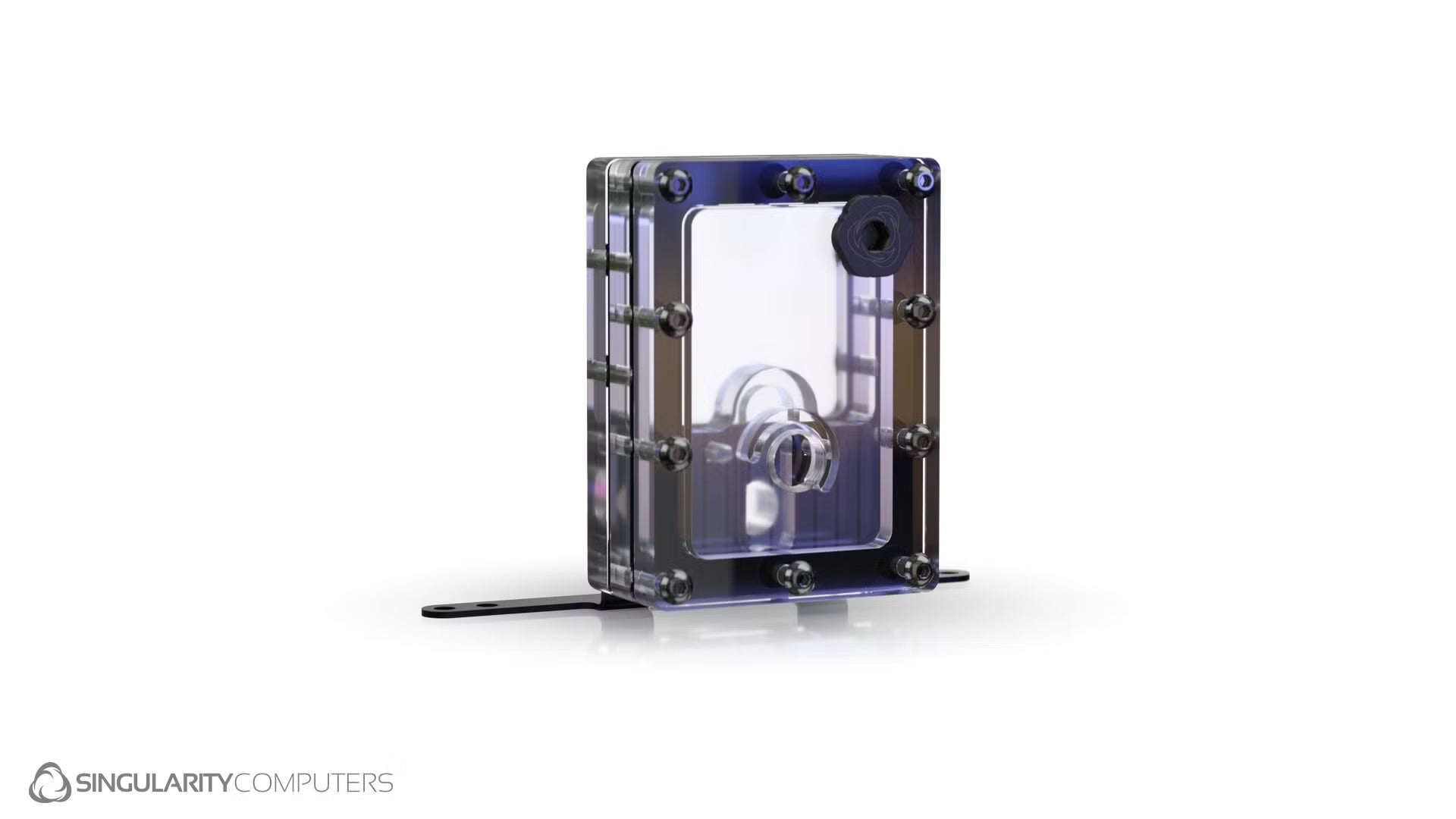

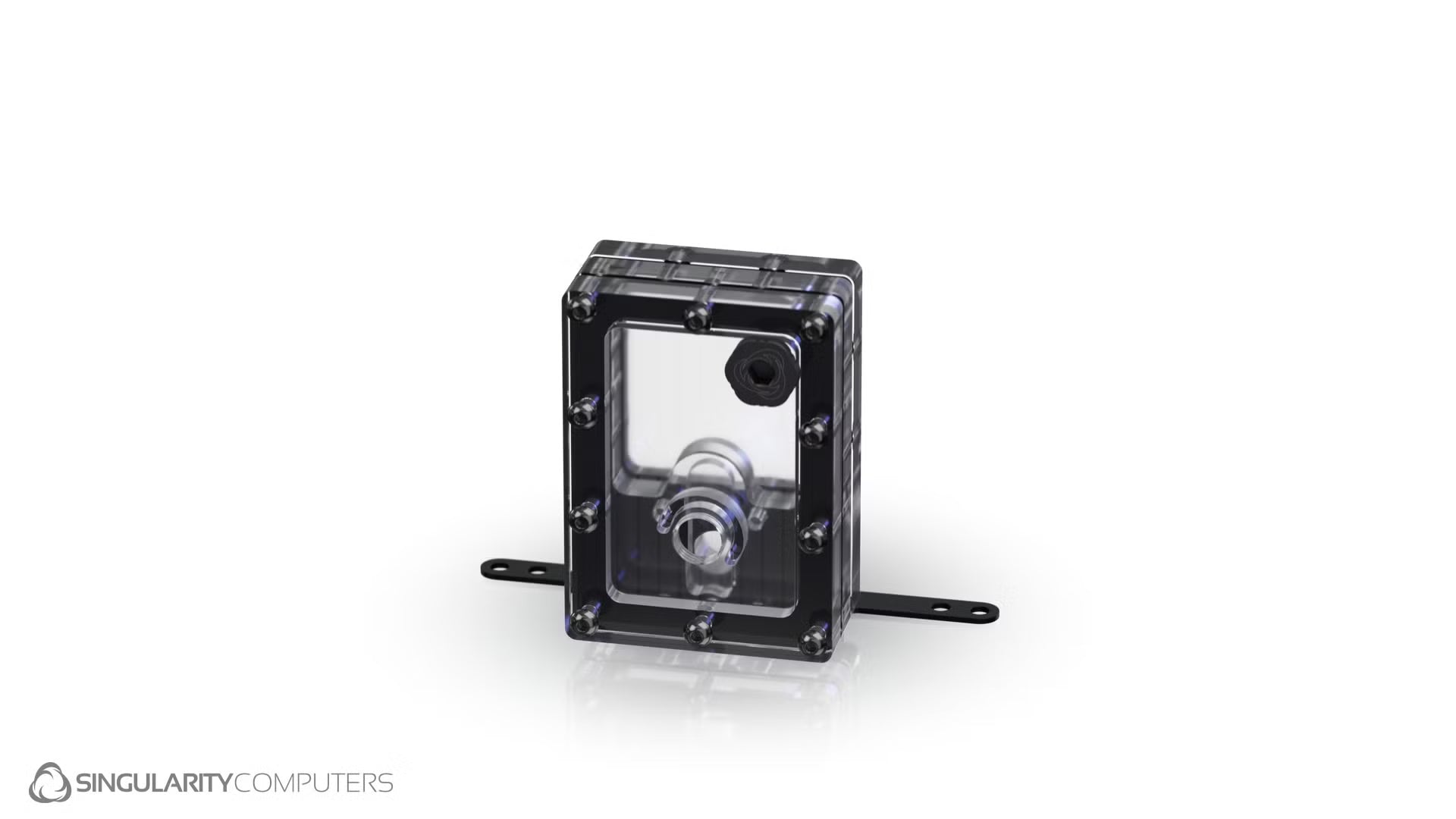

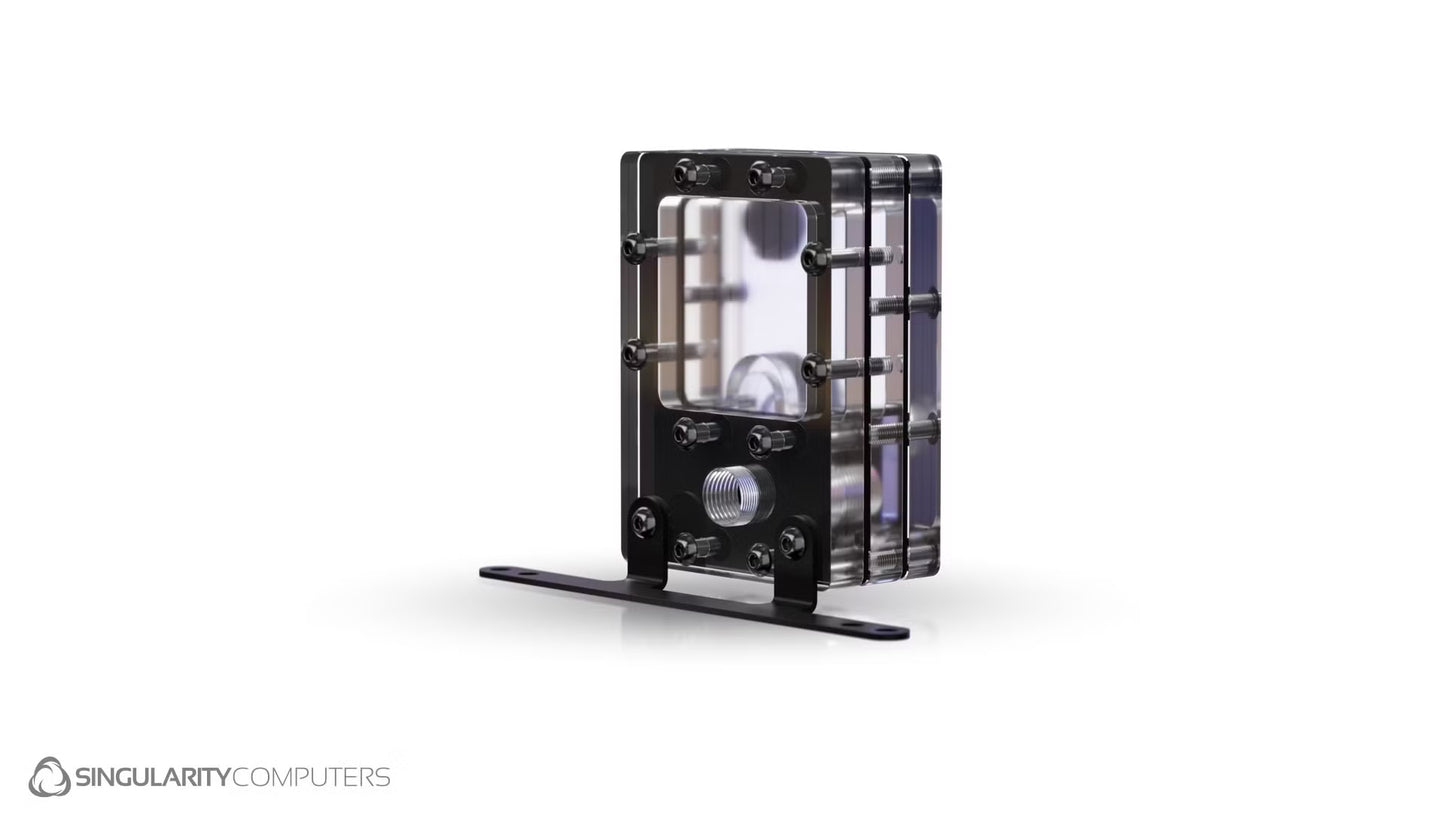

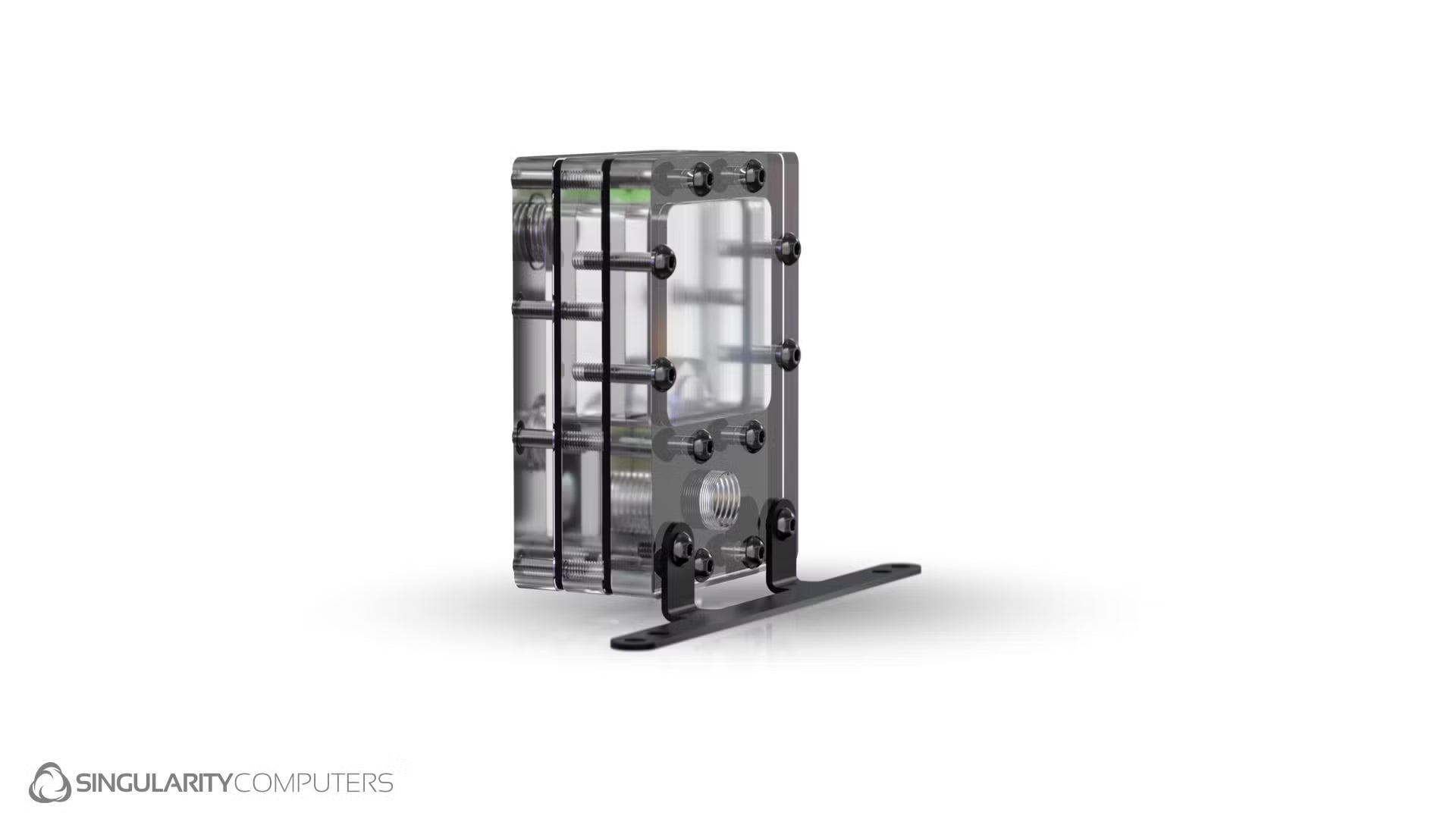

Conduit Mini Reservoir Distribution plate is a compact reservoir which can fit into any water-cooled build but is specifically designed for SFF and compact builds being our smallest reservoir. It mounts onto 120mm or 140mm wide radiators, fans or fan mounts, and can fit on any radiator from 120mm all the way up to 560mm. The fluid volume is small due to its compact size, but it has been designed for easy air removal.
Specifications: Conduit Mini Reservoir Distribution Plate. Mount. Folded 2mm Steel Black Powder coated. Mounts to 120mm and 140mm wide radiators fans, or fan mounts. Fasteners: Stainless Steel. Gaskets: Silicone. Materials: Cast Acrylic. Manufacturing Process: CNC Router. Assembly: Assembled by hand and pressure tested. Dimensions: L: 94mm x W: 86mm x H: 40.6mm. Packaged Dimensions: L: 150mm x W: 150mm x H: 100mm. Weight: 0.5kg. Packaged Weight: 0.8kg.
Installation: Installs onto any 120mm or 140mm wide radiator, fans or fan mounts.
