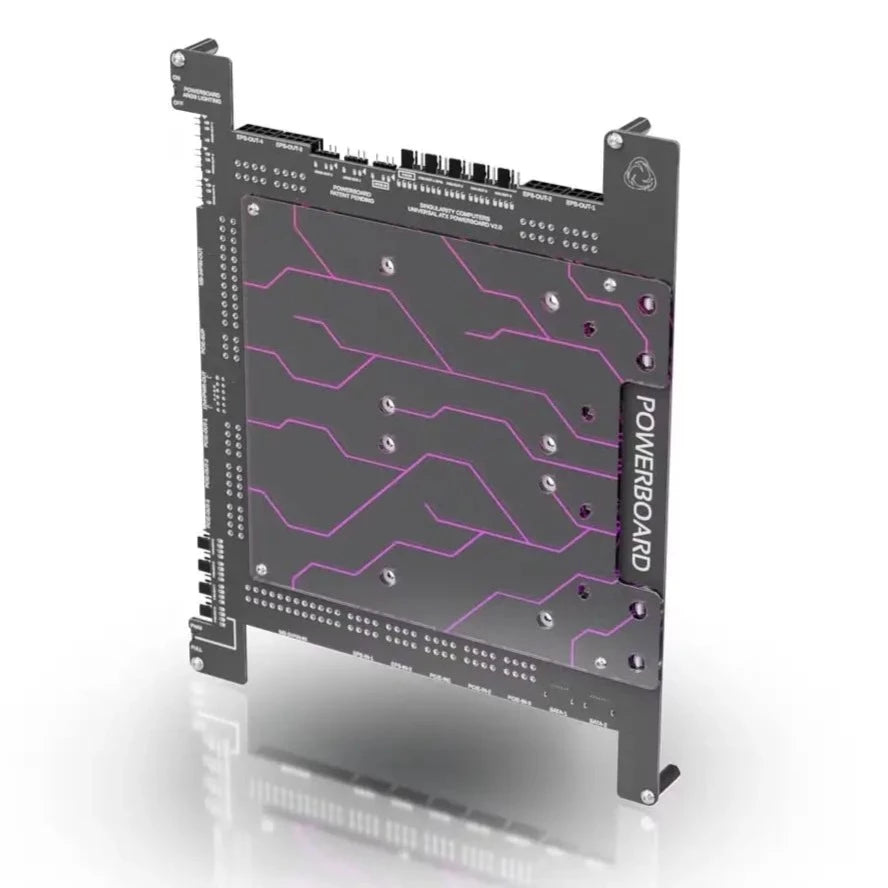

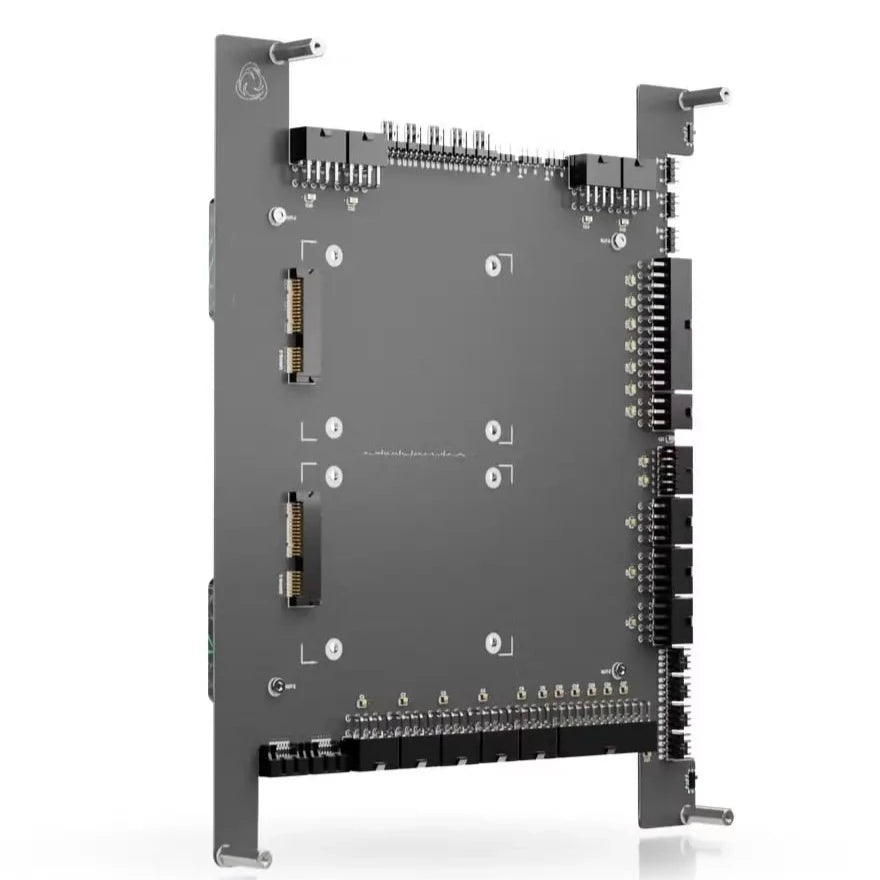

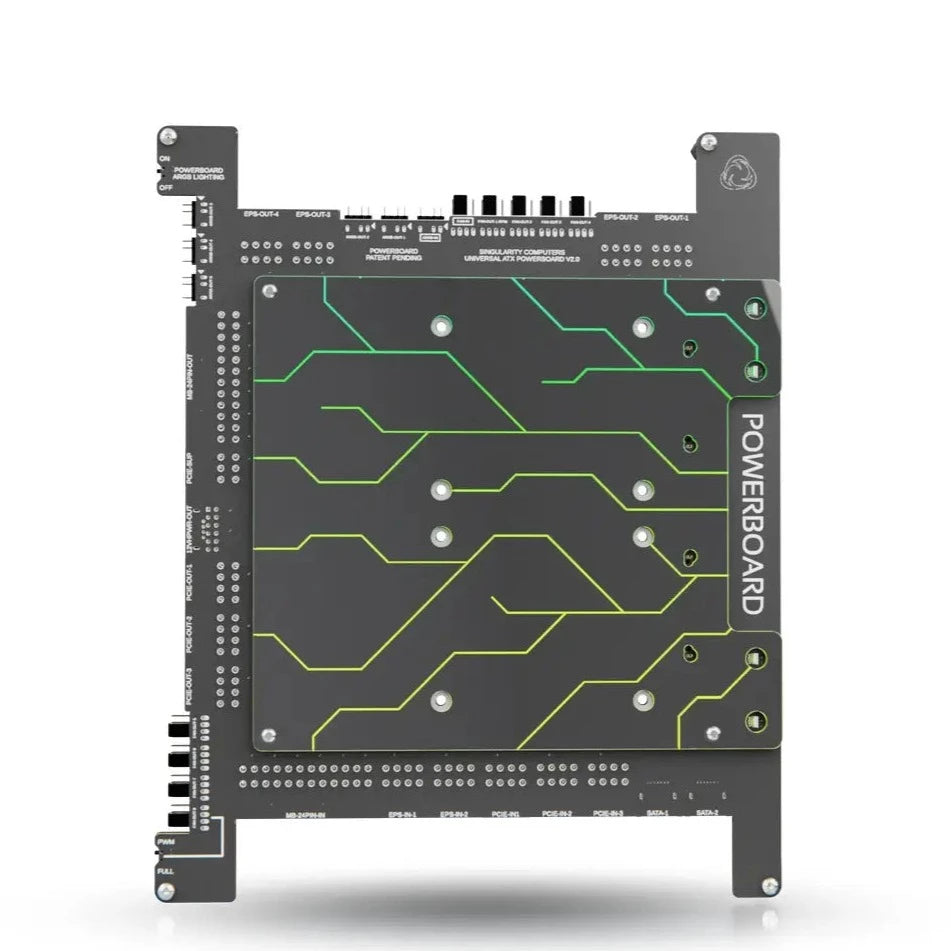

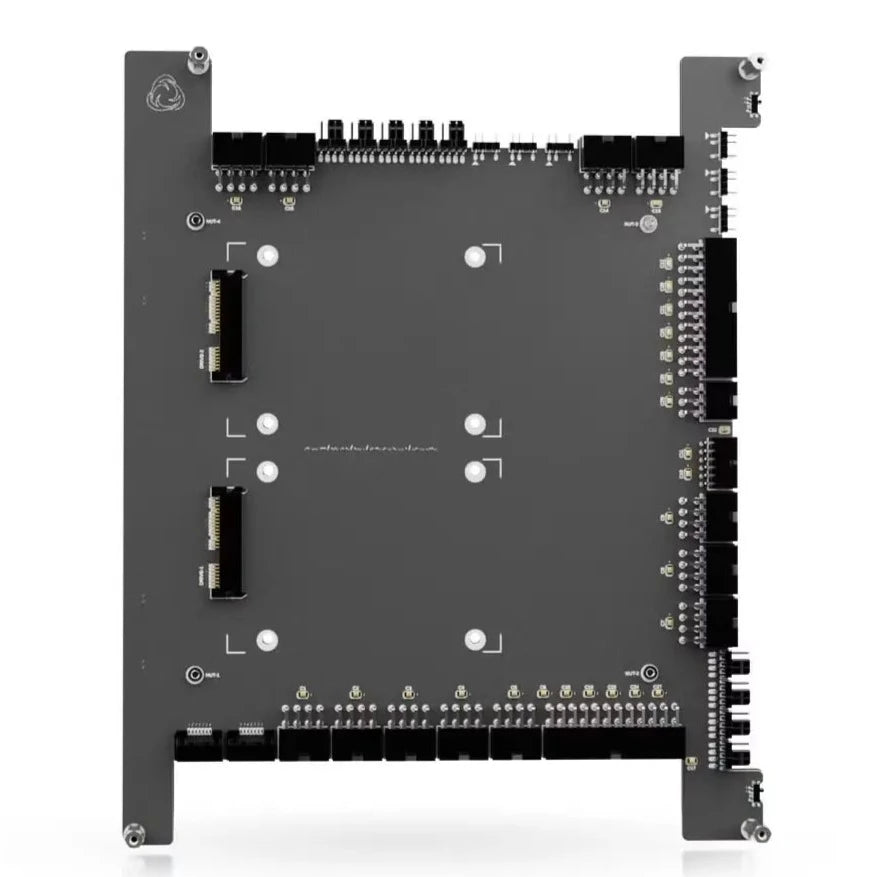

Singularity Computers PowerBoard ATX/E-ATX Universal

The PowerBoard Universal is the first PowerBoard which was not designed specifically for one case, instead it is designed to fit as many ATX and EATX cases as possible. The PowerBoard Universal has the 24pin integrated and it has 4x 8pin EPS connections in different locations for different motherboard layouts. It has a 6pin PCIE extra power connection for motherboards which require it. It has 3x 8pin PCIE connections and a 12VHPWR connection. The EPS can be used as 4pin or 8pin and the PCIE can be used as 6pin or 8pin with different cables. It has an inbuilt PWM hub with x8 output connections and an ARGB hub with x5 output connections. It also has x2 direct mount SATA 2.5” connections and 4 ARGB LEDs built in to light up the rear laser etched acrylic cover.

Note: We have a compatibility list (Here) for the PowerBoard Universal. These are only the cases we have looked at or tested so far. Please contact us below with your requests for case compatibility and we can check and get back to you.

Specifications & Included Items:
PowerBoard ATX/E-ATX Universal
Cables: PowerBoard Linking Cables: 18AWG wire black sleeved: 24pin x1. 8pin EPS x2. 8pin PCIE x3. PWM Fan Extension Cable Black Sleeved 50cm. RGB Extension Cable Black 50cm.
Electronics Integration:
Inputs: 24pin x1. 8pin EPS x2. 8pin PCIE x3. PWM x1. ARGB x1. SATA x2.
Outputs: 24pin x1. 8pin EPS x4. 8pin PCIE x3. 12VHPWR x1. SATA Direct Mount x2. PWM x8. ARGB x5. ARGB built in LEDs x4 and on/off switch. Power and Reset Buttons.
Product Dimensions: H: 395mm x W: 391.5mm x Thickness: 25mm.
Product Weight: 1kg.
Packaged Dimensions: W: 395mm x L: 430mm x H: 50mm.
Packaged Weight: 1kg.
Fasteners: Stainless steel.
Manufacturing Process: PCB. Laser.
Materials: PCB. Clear Cast Acrylic.

This is a consignment item which will be shipped directly from Singularity Computers
