Singularity Computers Spectre Integra-M Black ATX Case
Singularity Computers Spectre Integra-M Black ATX Case

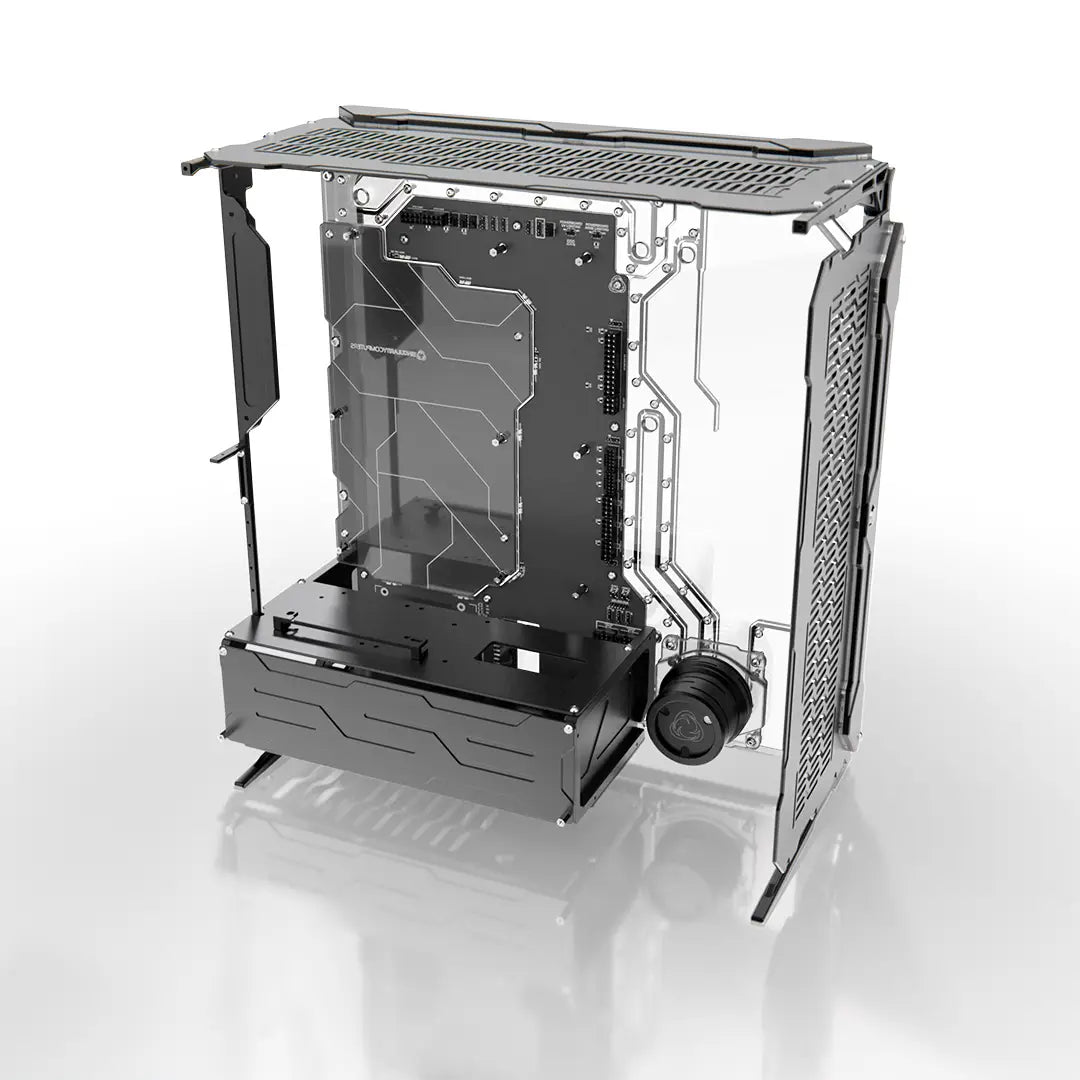

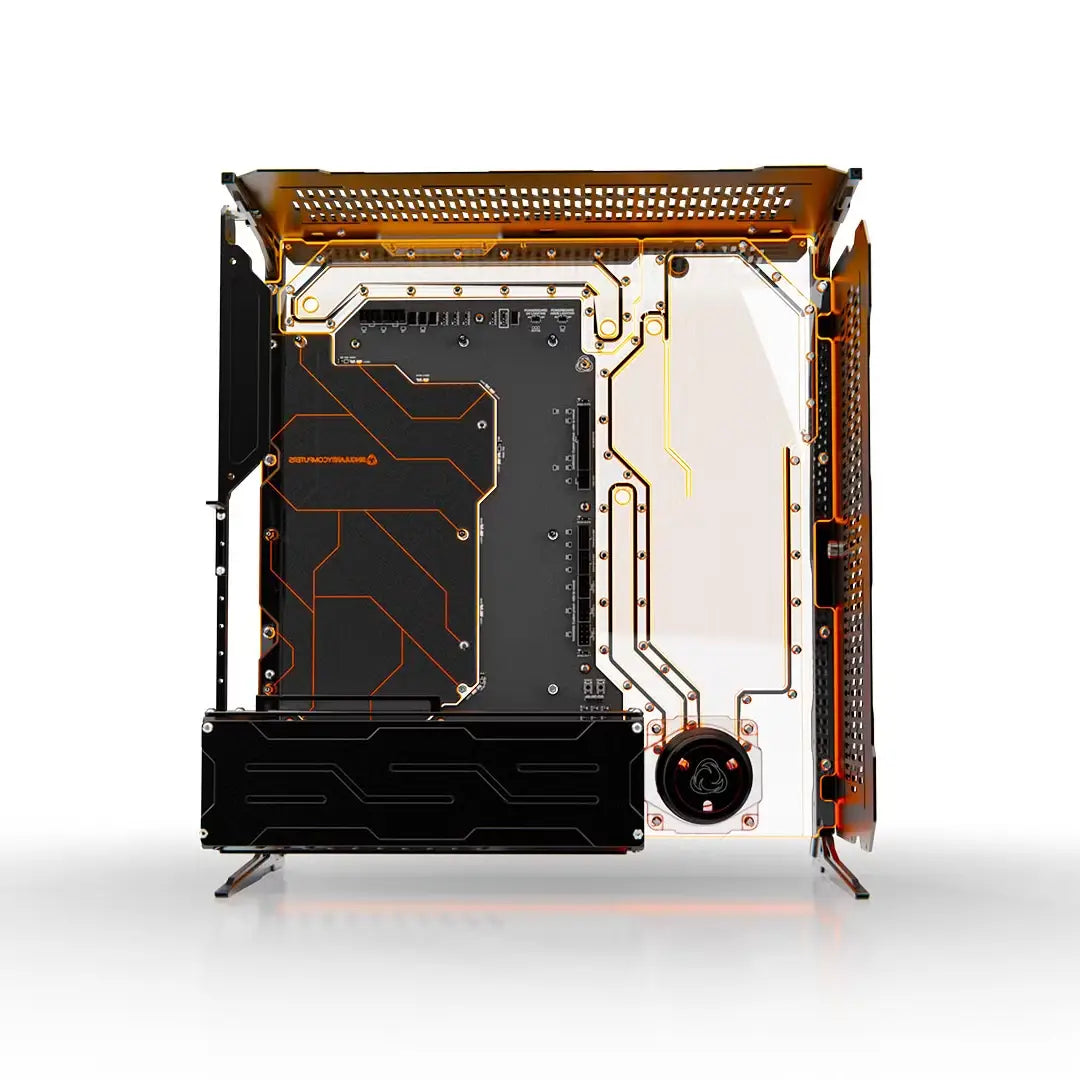

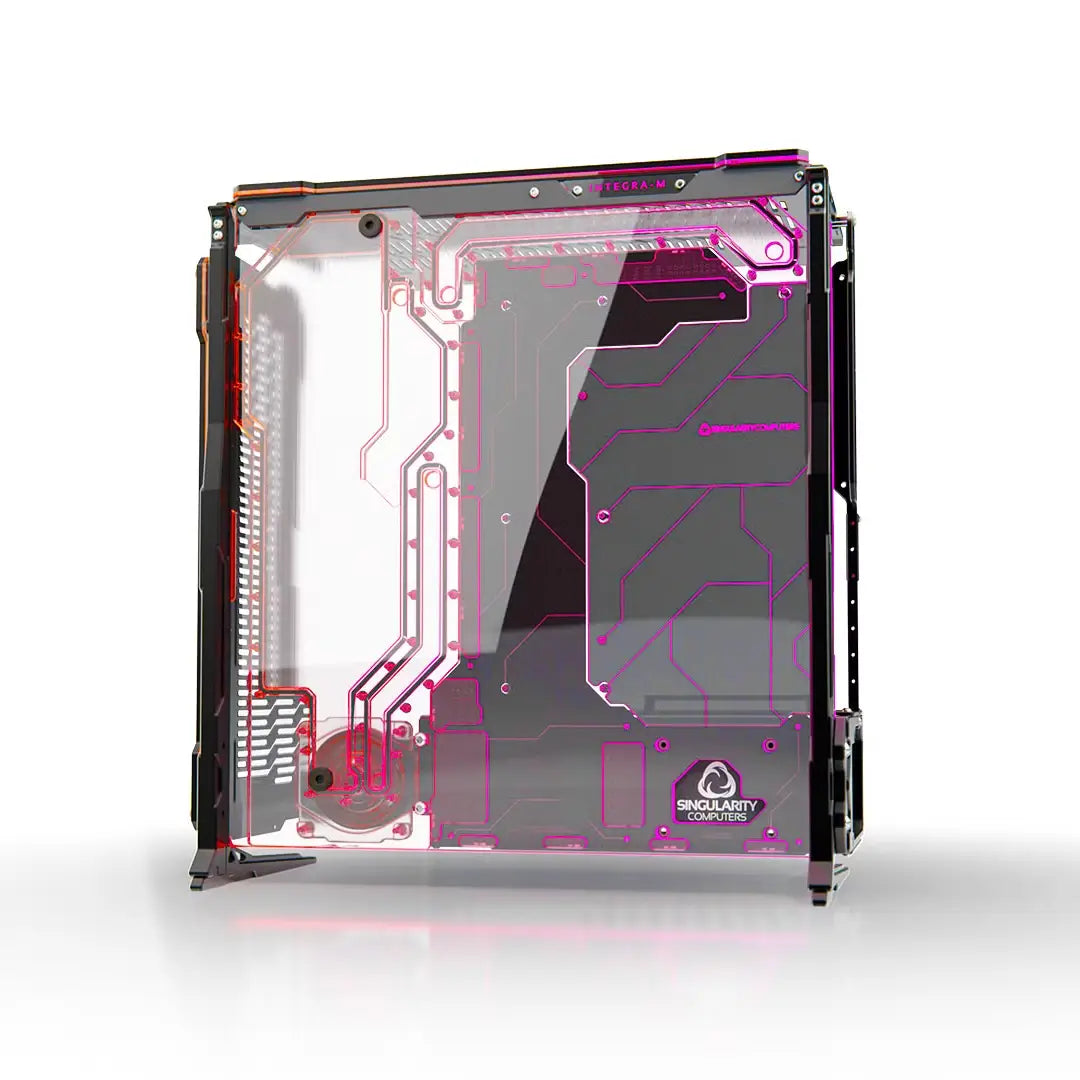

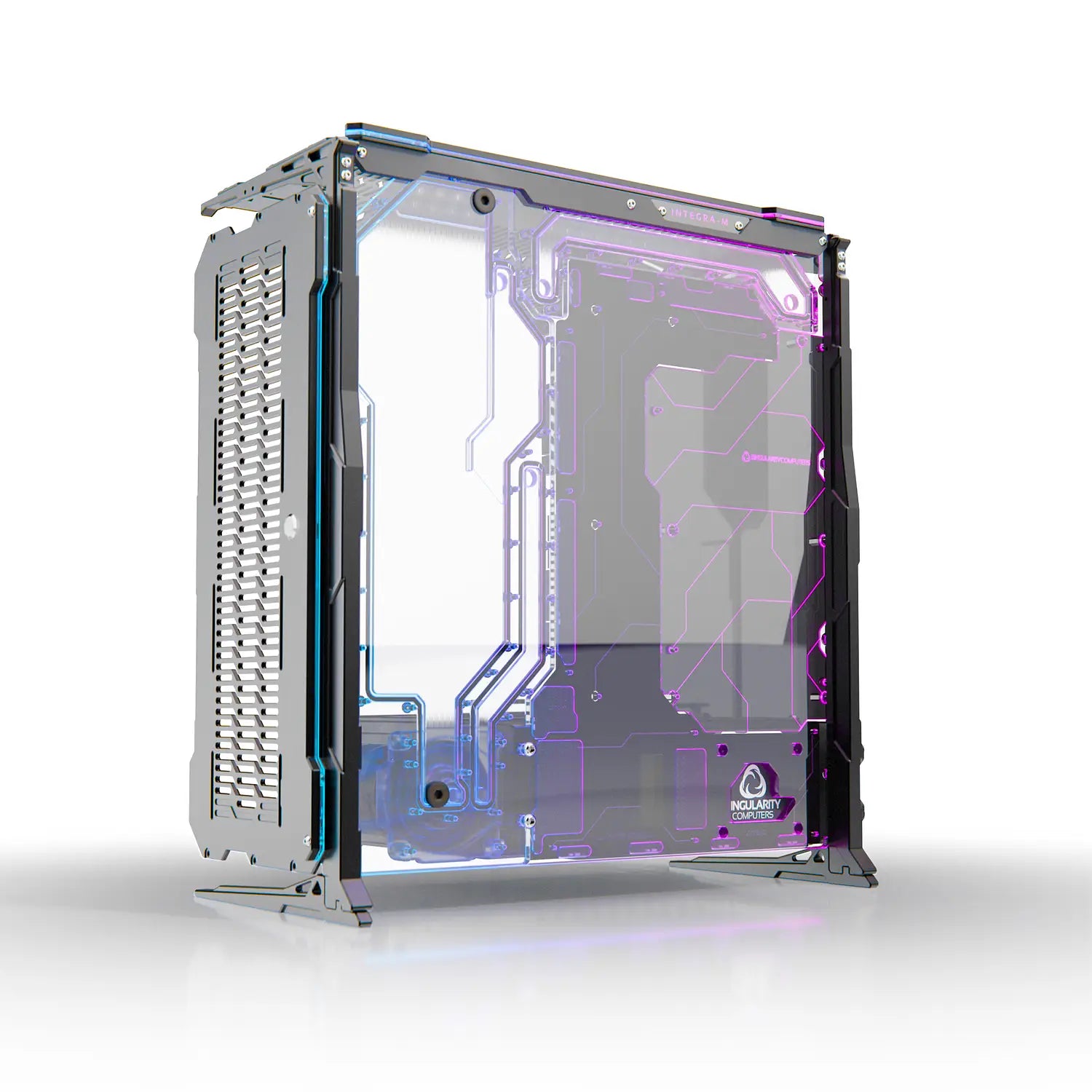

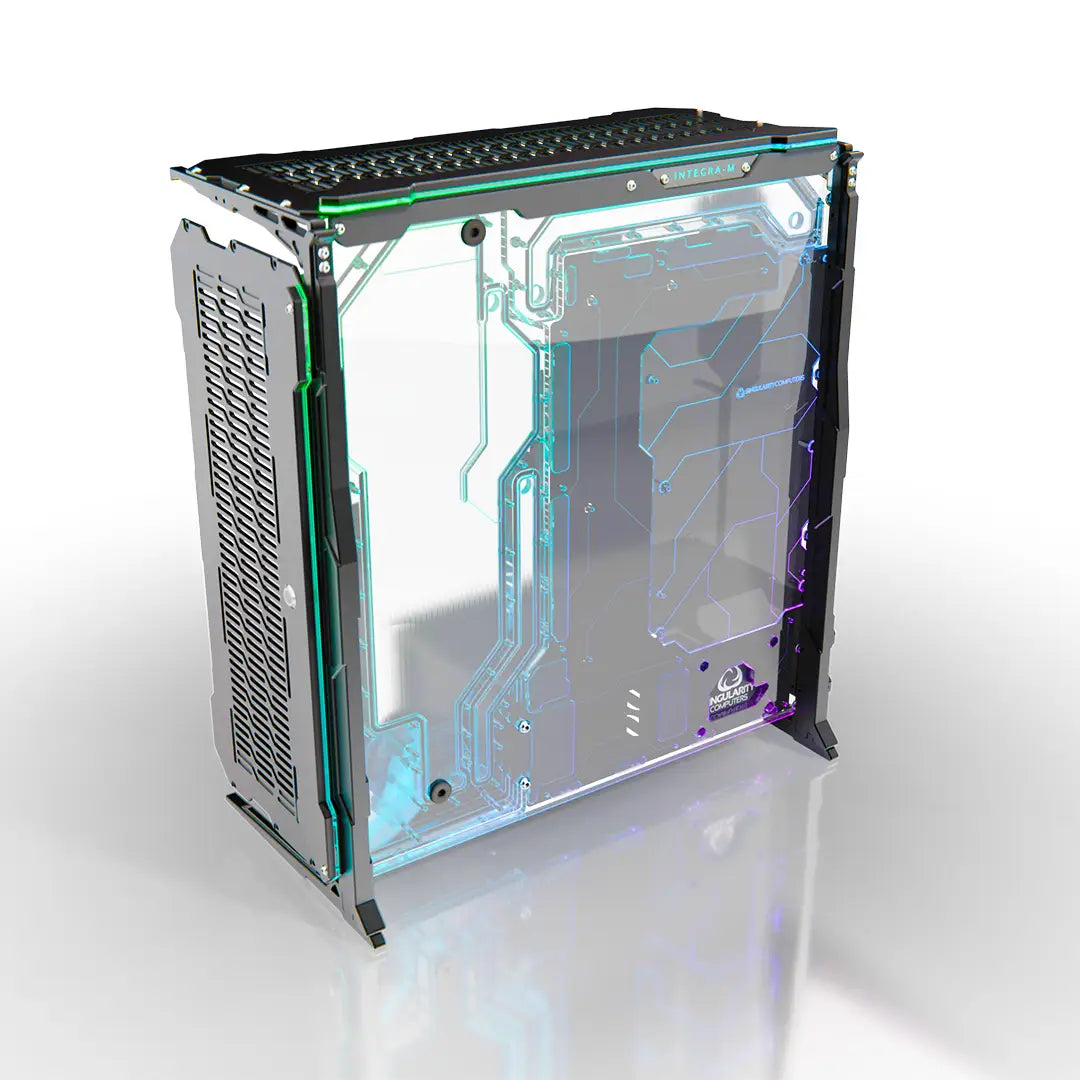

Spectre Integra-M has much of the water-cooling loop integrated along with a fully integrated solution/replacement for cables with the Singularity Computers PowerBoard. The reservoir, pump top, pump cover, fill and drain ports and part of the cooling loop are integrated.
The PowerBoard supports the most high-end components and features built in filter capacitors, more integrated LEDs facing inwards and outwards, integrated direct connect SATA, power, and reset buttons, and a touch activated power button. There is now no rear access needed to the case due to the PowerBoard, all cables can be connected from the front and little to no cable management is required.

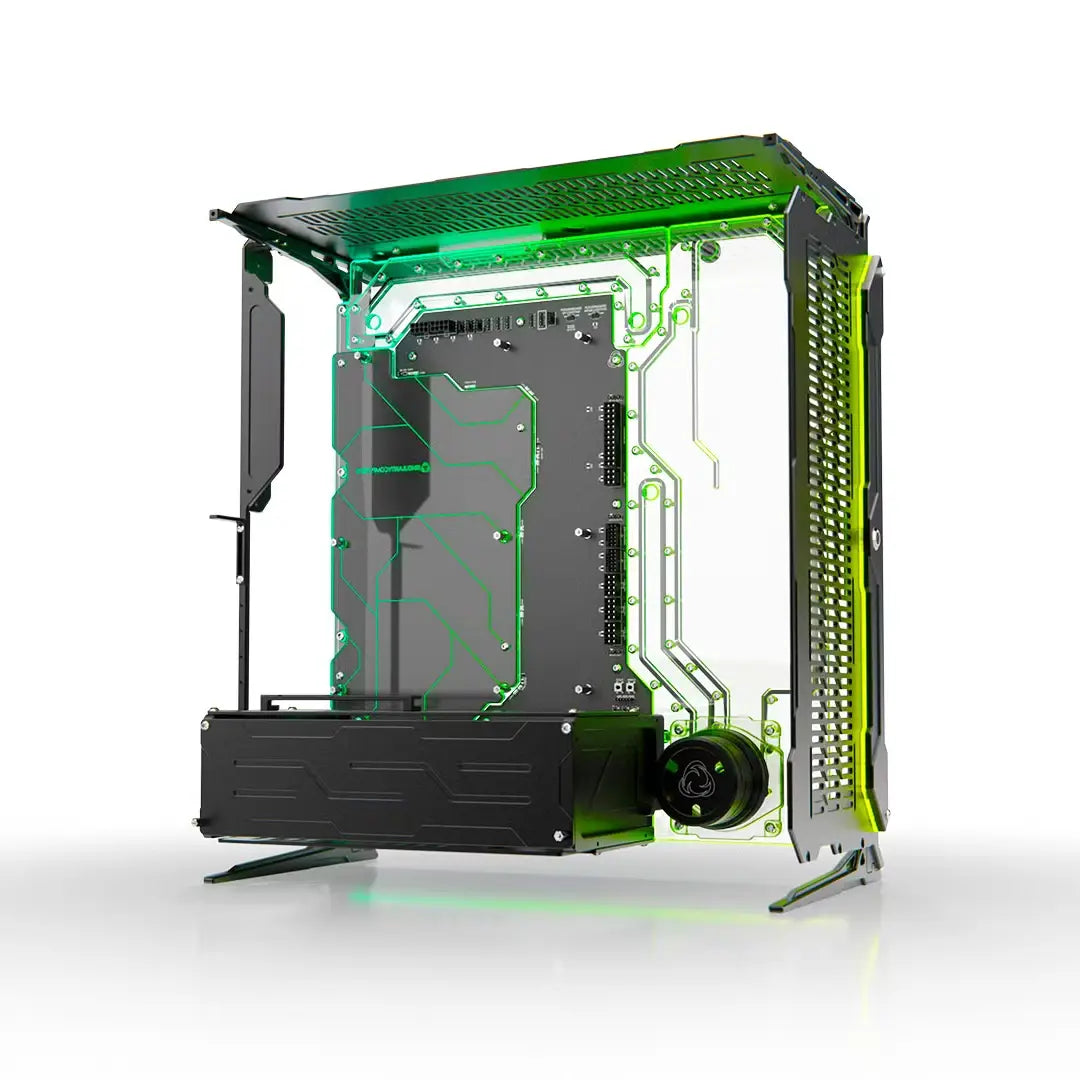

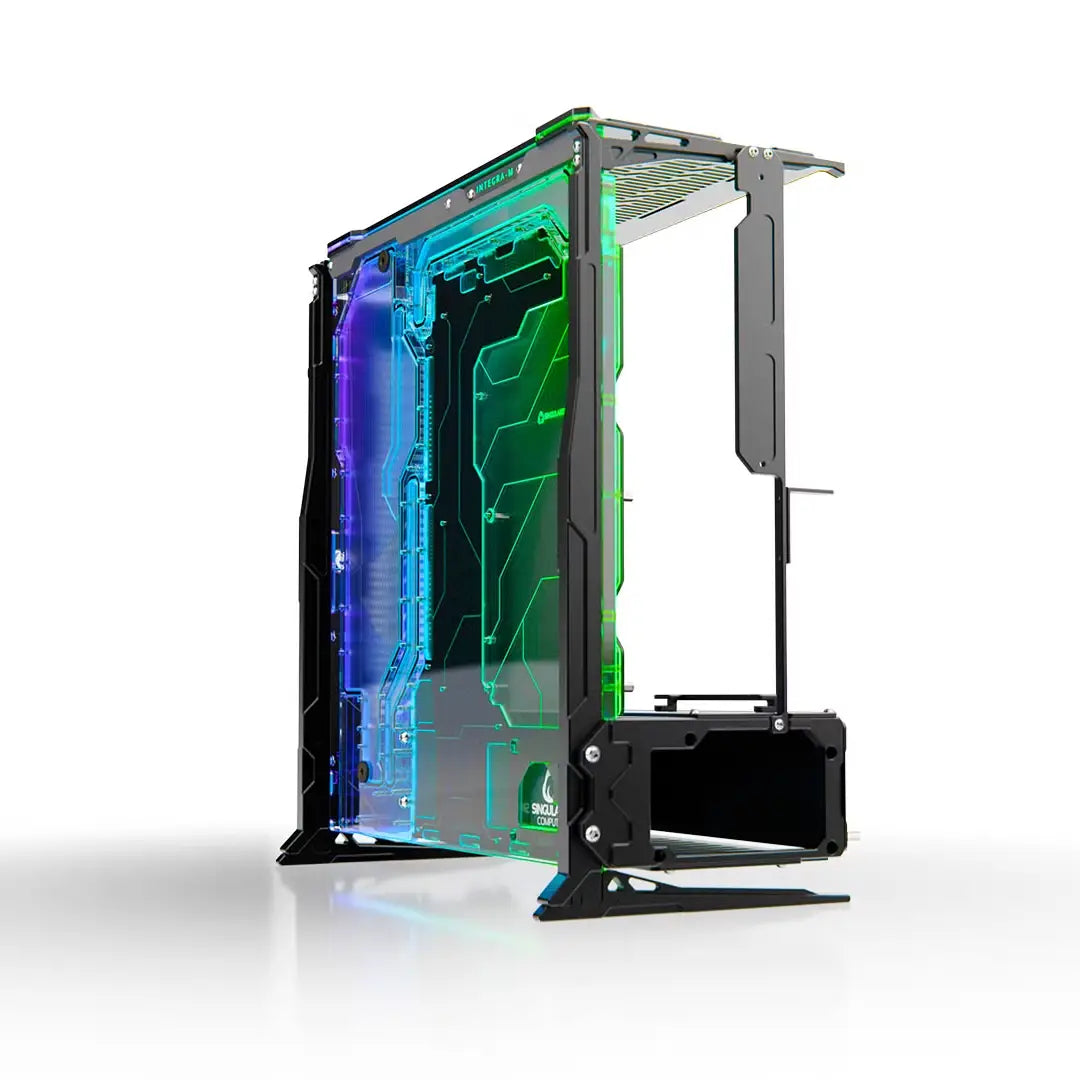

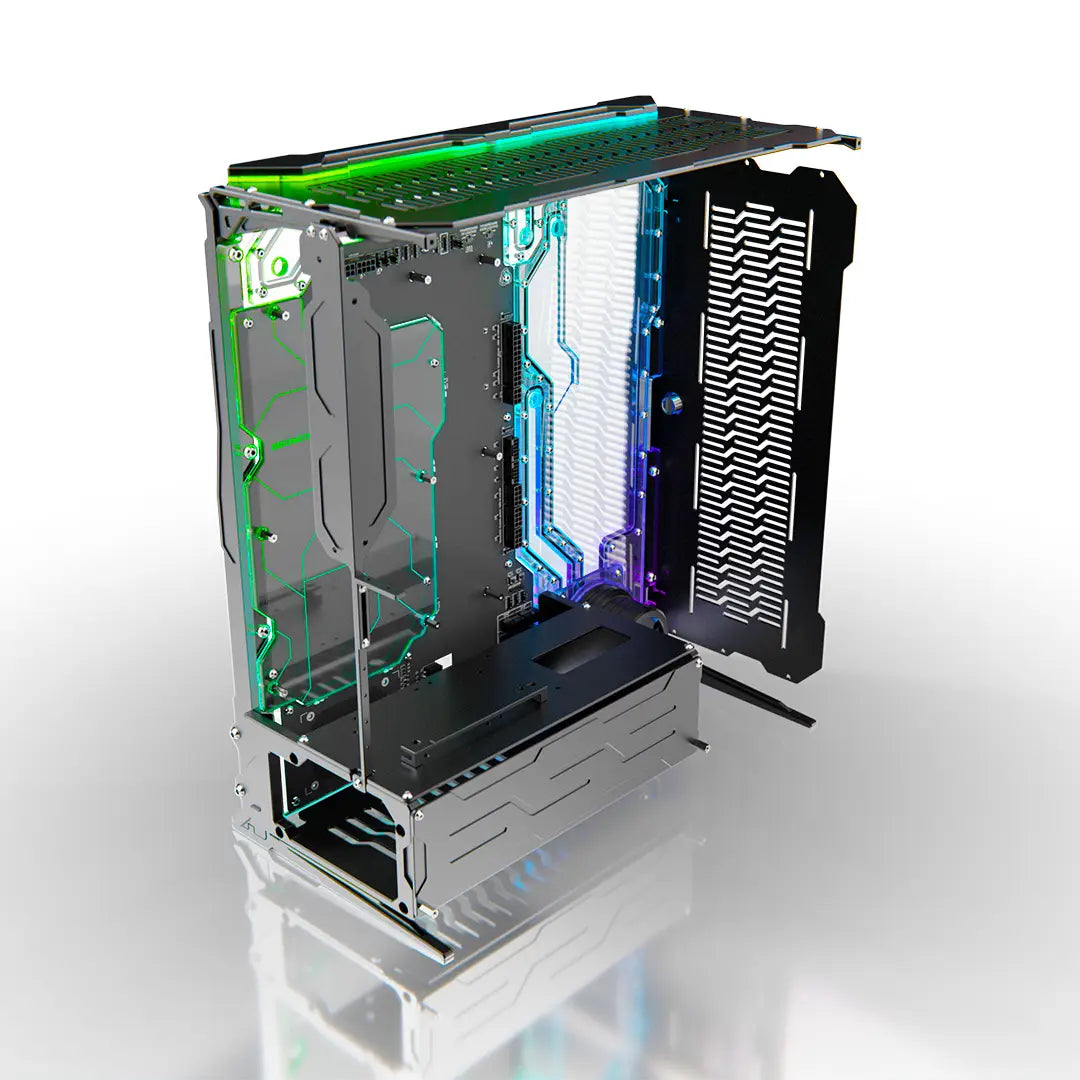

A standard set of black sleeved linking cables are included with the case. Integra-M has integrated PowerBoard LEDs facing inwards towards the motherboard tray and outwards towards the distribution plate. There are two separate sets of LEDs for ARGB or UV, and they can be switched on or off, or from UV to ARGB via two switches on the PowerBoard.
Note: Motherboards with 90 degree 24pin, EPS and/or 6pin Supplementary connections will require PowerBoard Shift Adaptors
A 24pin ATX and two 8pin EPS cables are provided with the case. Three 8pin PCIE cables are also supplied by default. If you need 12VHPWR , please specify if you need fixed 600W (Non-ATX 3.0) or ATX 3.0 ones.
This item will be shipped directly from the local supplier.
Integrated Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x6 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Pump: (Not included): Compatible with all D5 pumps.
Connections: 24pin x1. 8pin EPS x2. PCIE 8pin x3. 12VHPWR x2. 6pin PCIE MB Supplementary x1.
Hubs: PWM: x3. ARGB: x10 (Single input for each).
LEDs: x24 Integrated ARGB 90-degree LEDs and x24 UV 90-degree LEDs facing around the internal and external perimeter of the PowerBoard. There are two switches on the PowerBoard one switches the ARGB on or off and the other switches the UV on or off.
Touch sensing Power Button. Extra Power and Reset Buttons. PowerBoard LED on/off switch.
PowerBoard 2.5” SATA 3.0 6Gb/s Direct Mount x1.
Cables: PowerBoard Linking Cables Standard Set: 24pin x1. 8pin EPS x2. 8pin PCIE x3. 18AWG Black Headshrinkless Sleeve. PWM Female to Female 50cm Black Sleeved x1. ARGB Female to Female 50cm Black Sleeved x1. Touch Power Button and extra Power and Reset Button Cables 20cm x4.
LED Strips: x2 50cm ARGB LED Strips with 50cm cables. (Attach to case panels on specific mounting points for front and top panel glow).
Accessories: Hex Keys: M3: x1. M4: x1. M6: x1. Stop Fittings: x2.
5v ARGB LED Strip 50cm: x2.
Motherboard Form Factor: ATX, M-ATX, Mini-DTX, Mini-ITX.
Expansion Slots: x7.
Case Form Factor: Mid Tower.
Package Dimensions: L: 640mm W: 620mm H: 110mm (Case is flat packed and requires partial assembly).
Package Weight: 14kg.
Case Dimensions: L: 486mm H: 528mm W: 245mm.
Case Weight: 12kg.
Storage: 7x 2.5”. x2 are on top of the PSU shroud and cannot be used when the GPUs are vertically mounted. x4 are inside of the PSU Shroud. x1 is on the PowerBoard behind the PSU.
Radiators: 360mm x 40mm with x1 set of standard 25mm fans.
Maximum GPU Length: 410mm with radiator installed.
Maximum GPU Height: 170mm in standard orientation. Unlimited in vertical orientation.
Maximum CPU Cooler Height: 170mm.
Maximum PSU Length: 220mm (Space allowed for cables inside of PSU shroud).
Front Panel I/O: No Front I/O. Vandal Switch 16mm white LED.
Vertical GPU Mount: x2 with 3 slot (60mm) spacing. x1 is included. 2nd Vertical GPU Mount Available Separately Here. Riser cable not included, compatible with Linkup PCIE 4.0 Riser Cables.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Stainless Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, PCB.
Assembly: Distribution Plate Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.
Integrated Reservoir, D5 Pump Top, D5 Pump Cover, Fill Port, Drain Port, parts of the cooling loop.
The PowerBoard is a PCB integrating 24pin, EPS, PCIE, 12VHPWR, PWM and ARGB Hubs, SATA and Power and Reset Buttons. The Spectre Integra-M PowerBoard also has an integrated touch sensing Power Button. The PowerBoard has x24 ARGB and x24 UV LEDs positioned around the external and internal perimeter to optimally light up the distribution plate. Essentially the PowerBoard is a distribution plate for cables also integrating other features and functions. It is a new method for cables allowing standardisation of cable lengths and making cable management no longer necessary. Spectre Integra-M comes included with a standard set of black sleeved linking cables including 24pin x1, 8pin EPS x2, 8pin PCIE x3 meaning that these cables don’t have to be purchased separately.
With the pump top, reservoir, fill and drain ports, half of the water-cooling loop, the core component cables, PWM and ARGB hubs all integrated there is less assembly to be done. Less fittings and tubes are needed and no cable management is needed for the core component cables.
A large portion of the case cost is due to the integration. These are components you do not have to purchase for your build. The pump top, reservoir, cables, hubs, less fittings, less tube, no cable combs, or cable management components.
Each port and connector were positioned based on an average of a vast range of components.
Spectre 3.0 Integra fits up to ATX motherboards and has 7 expansion slots. It is designed to fit the largest and most high-end GPUs horizontally or vertically mounted. For the water-cooling system it can fit x2 360mm radiators up to 40mm thick. The PowerBoard has been designed for extremely high-power output and includes capacitors for power stability.
The radiator mounting panels have a large range of adjustment to help with port alignment to the distribution plate.
Spectre Integra-M has 7x 2.5” Drive positions. Two are on the top of the PSU shroud, four inside of the PSU shroud and there is one integrated on the PowerBoard. The two on top of the PSU shroud cannot be used with vertically mounted GPUs.
This is a consignment item which will be shipped directly from Singularity Computers
