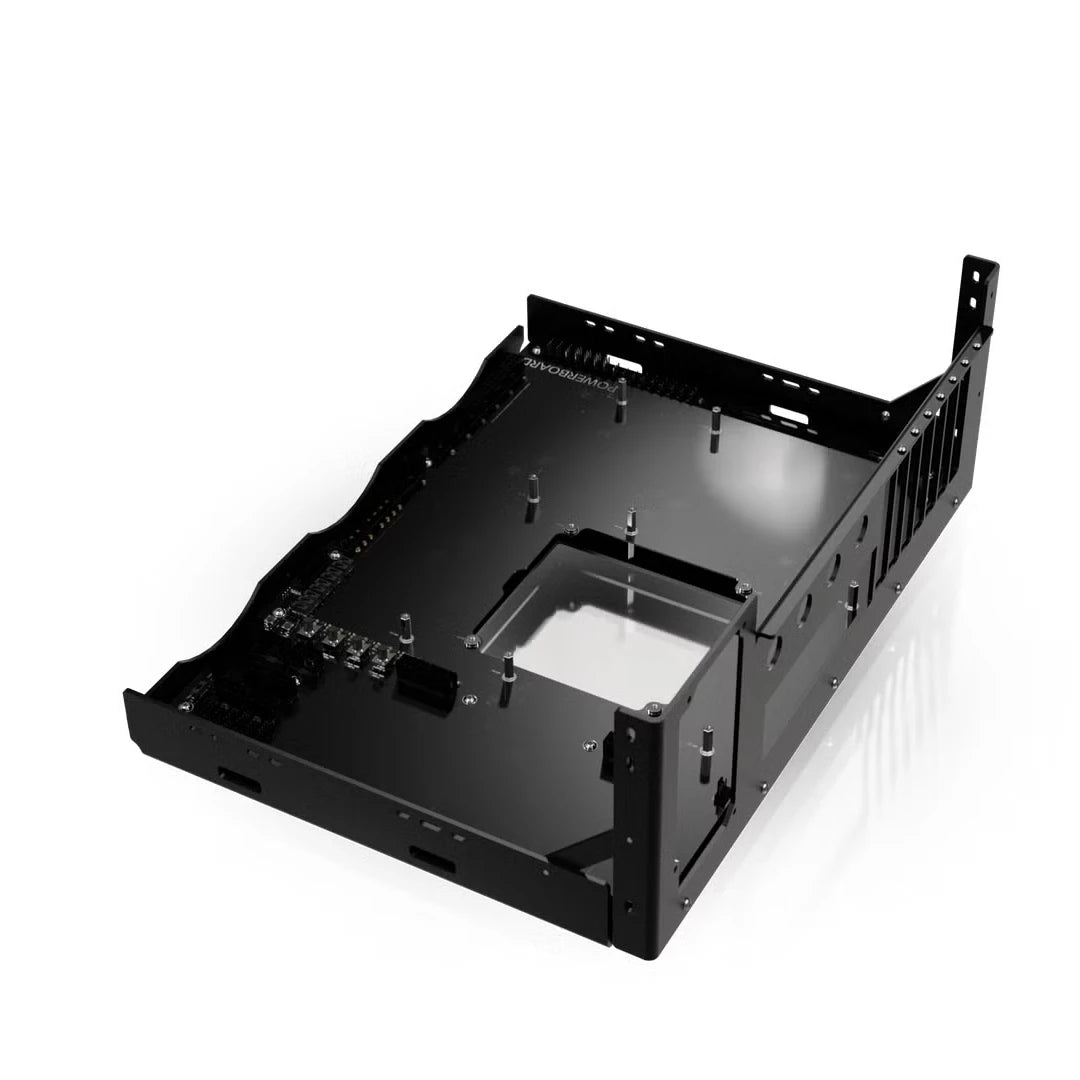

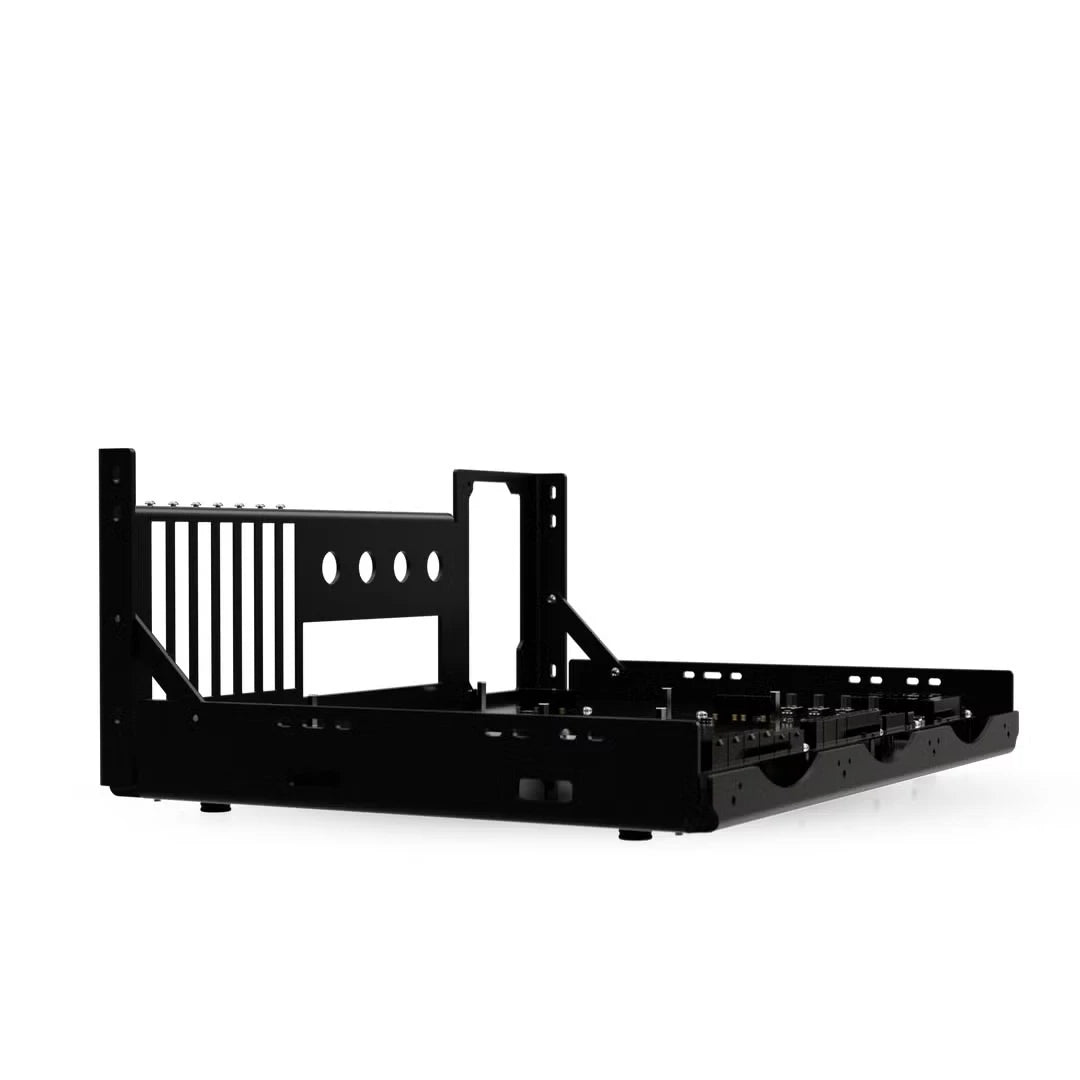

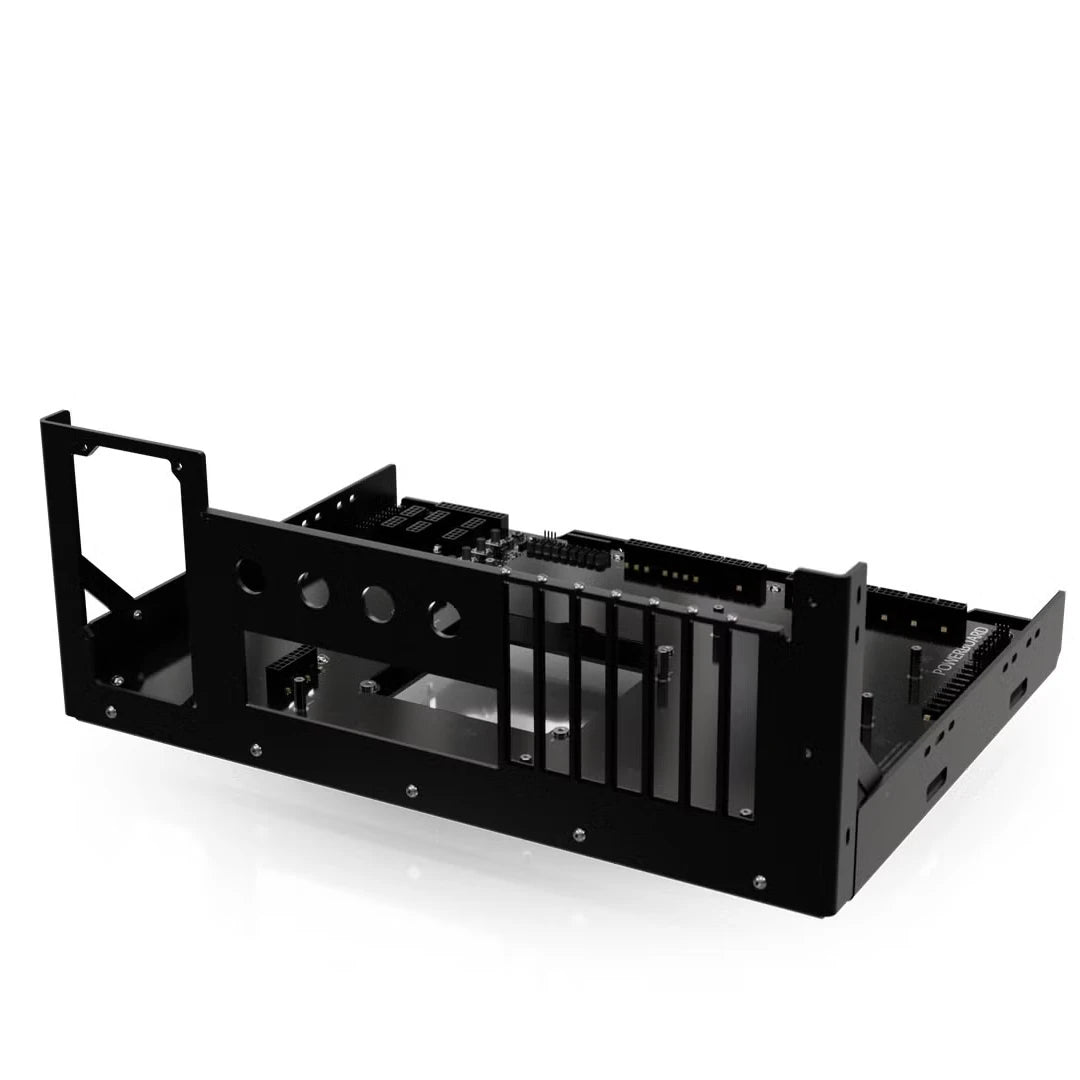

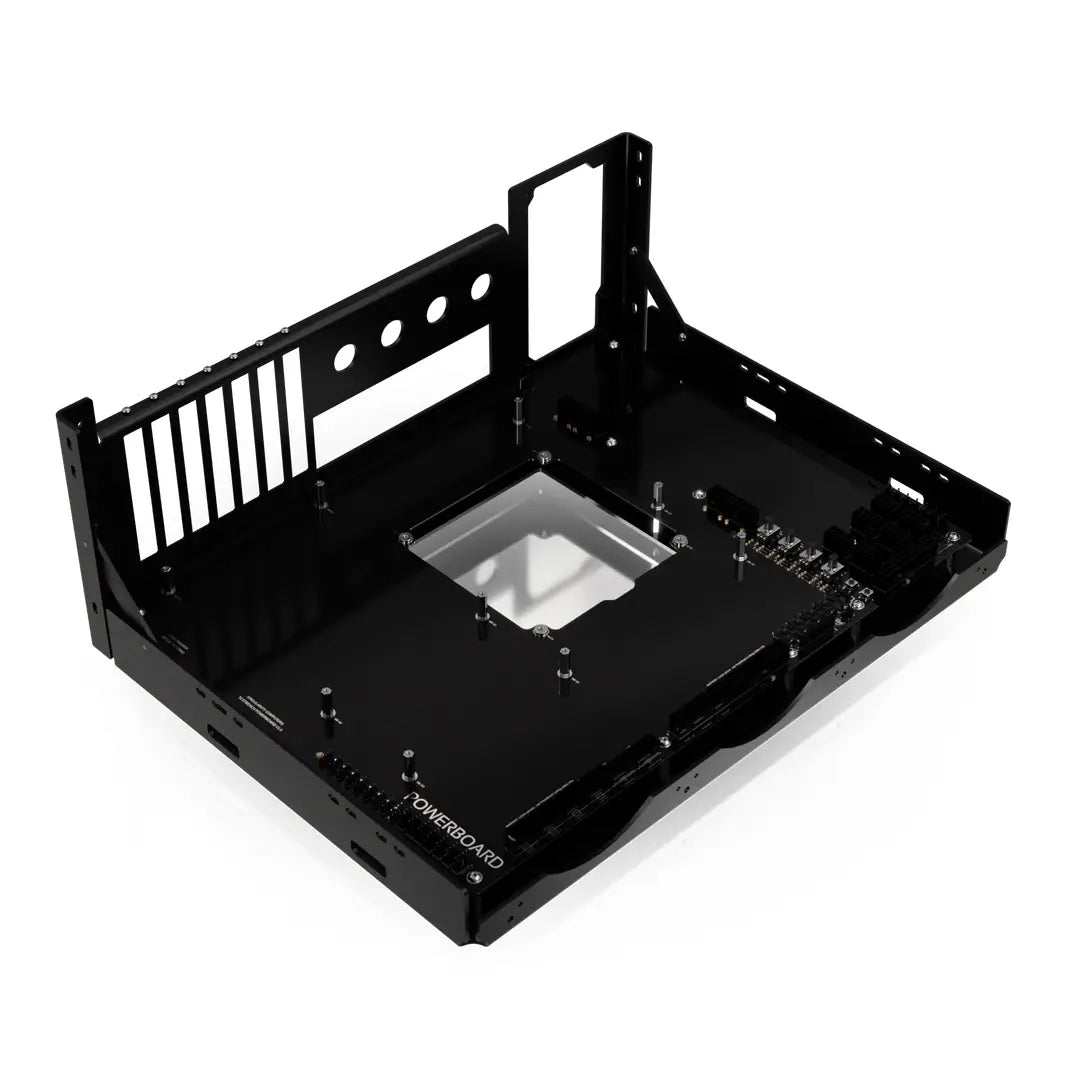

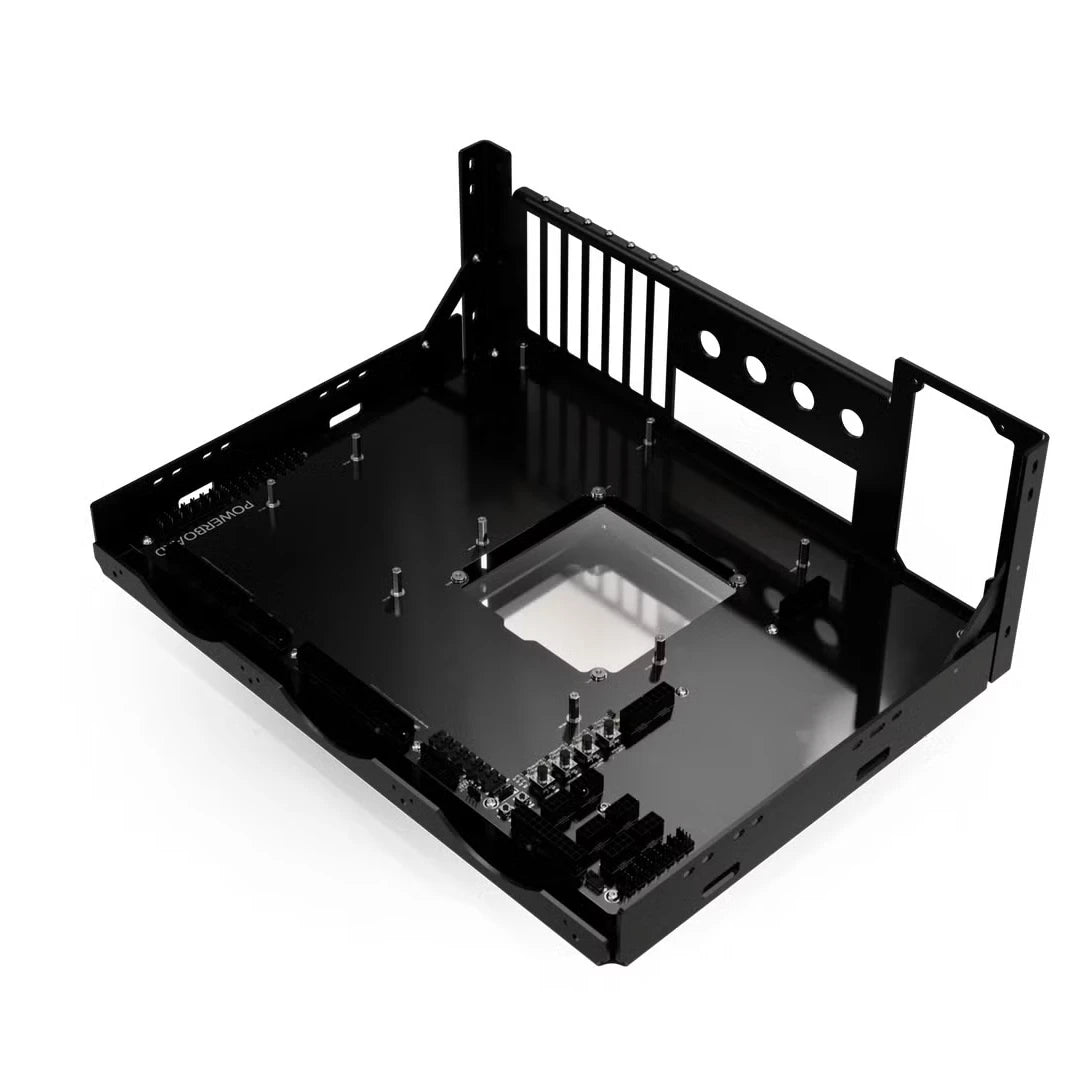

Singularity Computers Test Bench - Open Air Case

Singularity Computers Test Bench - Open Air Case

Regular price $1,000.00 AUD
Regular price Sale price $1,000.00 AUD
Sale Coming Soon!
GST included. Shipping calculated at checkout.
CPU Cables

The SC Test Bench eliminates the need for cable management thanks to the PowerBoard. Built into the PowerBoard are many features which are useful to have on a test bench and in any system particularly if it is water-cooled. The SC Test Bench fits radiators on both sides up to 480mm or 560mm and x3 more 140mm fans on the front. There will also be a pump/reservoir distribution plate addon which will mount onto the front.

Available from March 15th Onwards. Preorders now open

Specifications & Included Items:
SC Test Bench Enclosure: 6061 Aluminum. CNC Machined. Anodized.
SC Test Bench PowerBoard: PCB.
Fasteners: Stainless Steel.
Motherboard: ITX, DTX, ATX, EATX (up to 285mm wide).
PSU: ATX (up to 220mm long).
Expansion slots: x7.
Radiators: Up to 480mm or 560mm.
Fans: 140mm x3 (front). 120mm/140mm x2 per side.
Drive mounts: Total of 3x 2.5” drive mounts, 1x on the rear panel and 2x on the bottom panel.
External Water-cooling Passthroughs: x4 to connect external radiators with up to 2 separate loops.
Dimensions: W: 476.5mm x H: 190mm x D: 361.5mm.
Packaged Dimensions: W: 500mm x H: 200mm x D: 400mm.
Weight: 8.5kg.
Packaged Weight: 9.5kg.

Electronics Integration:
Connectors: 24pin x1. PCIE 8pin x4. 12VHPWR x2. 8pin EPS x4. PCIE 6pin Supplementary x1. PCIE 8pin Supplementary x1. (Equal inputs and outputs must be used).
Hubs: PWM Fan Hubs x2 each with x1 input and x4 outputs. Pump inputs and outputs x2. Each fan hub and pump output have coolant temperature-based RPM control or can be switched to motherboard RPM control. The built-in RPM control on the PowerBoard is independent of the motherboard and no software is needed.
Dedicated PWM header for 140mm fan which can be mounted behind the motherboard. Controlled by PWM fan hub 1.
PWM Control: 4x potentiometers to set the minimum PWM speed.
ARGB: x8 outputs with one input.
Temperature sensor inputs: x2 for up to two loops. Compatible with any water-cooling brand plug temperature sensor or inline sensor if it is a 10K NTC thermistor.
Power and Reset Buttons.
4pin ATX header to power up to two pumps with custom cables from the PowerBoard.
12pin header for future controller addon.
PSU jump-start switch to run the pump/s without booting so that you can run only the pump for filling the loop.
