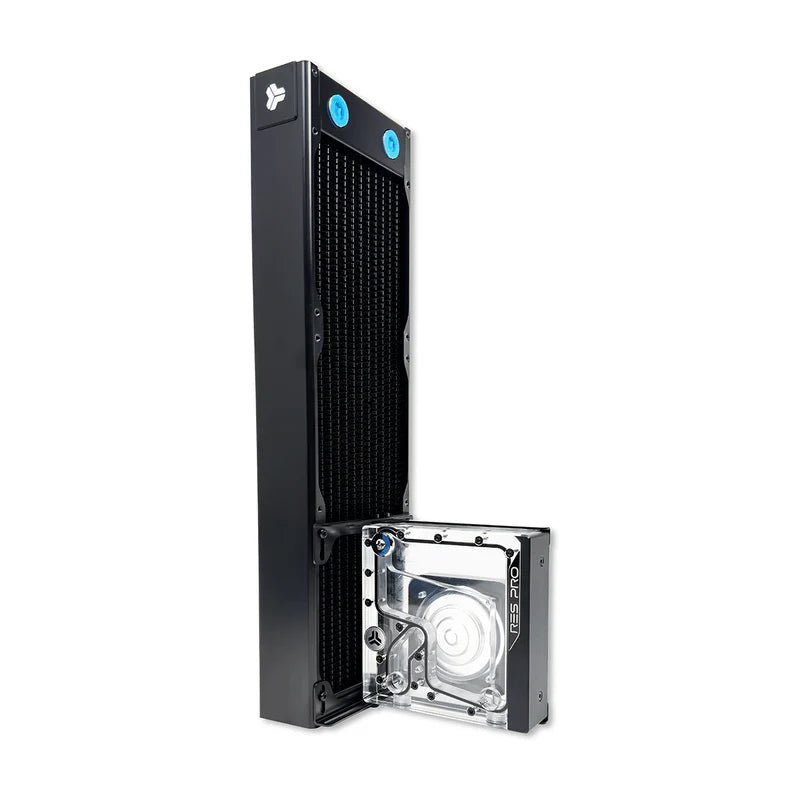

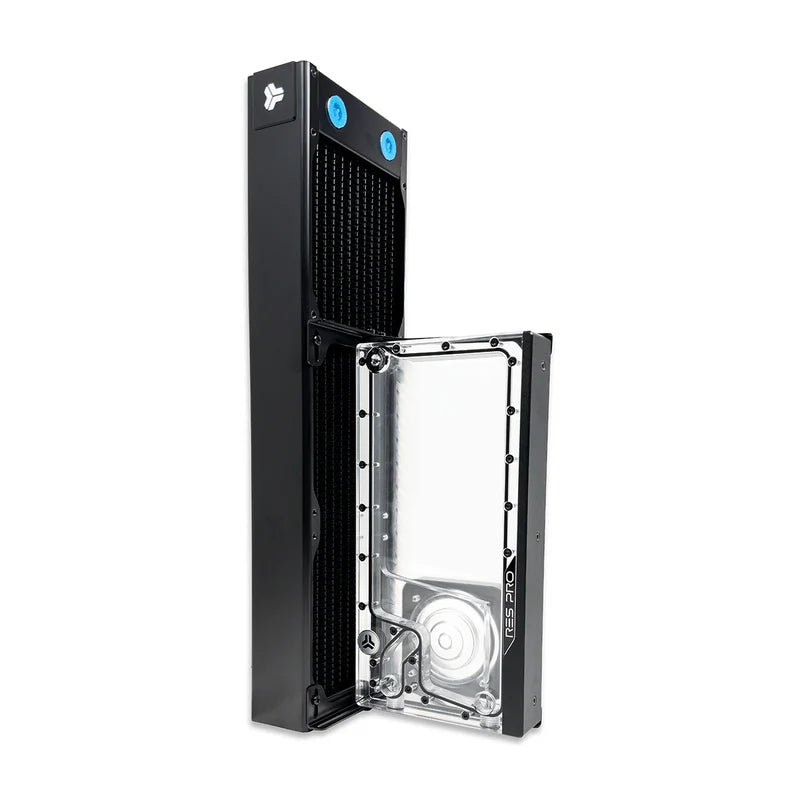

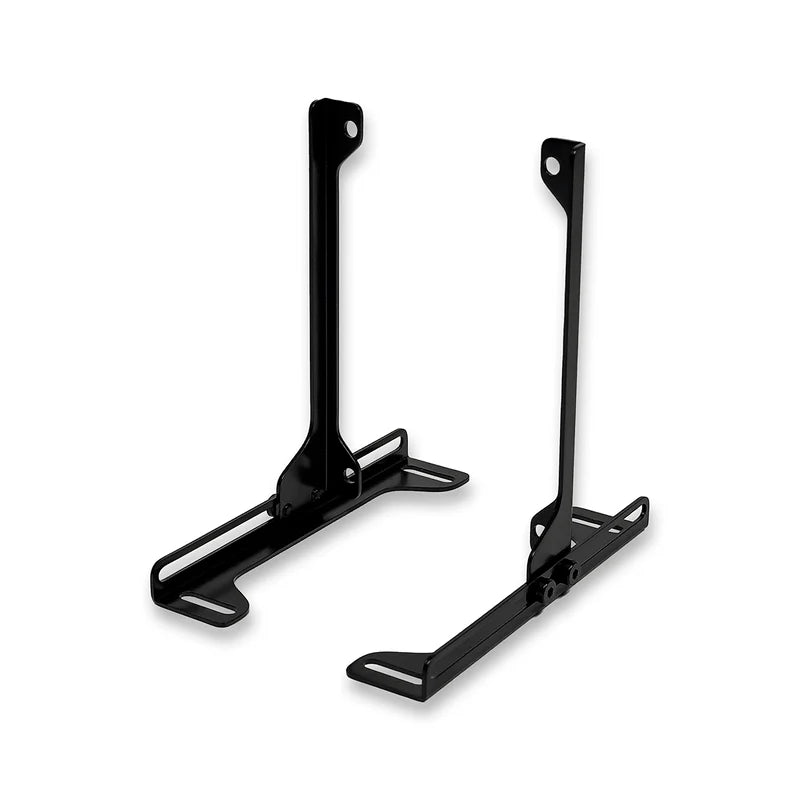

The SC-UNI Angled Bracket – 120/120 mm is a sturdy bracket made from 1.5 mm thick coated steel. It allows you to mount our ResPro pump combo reservoir series vertically to 120 mm fan mounting holes (105 mm hole spacing).
This design improves airflow within the case while also enabling new mounting options that are not supported by the case itself.
Flexible orientation and mounting options

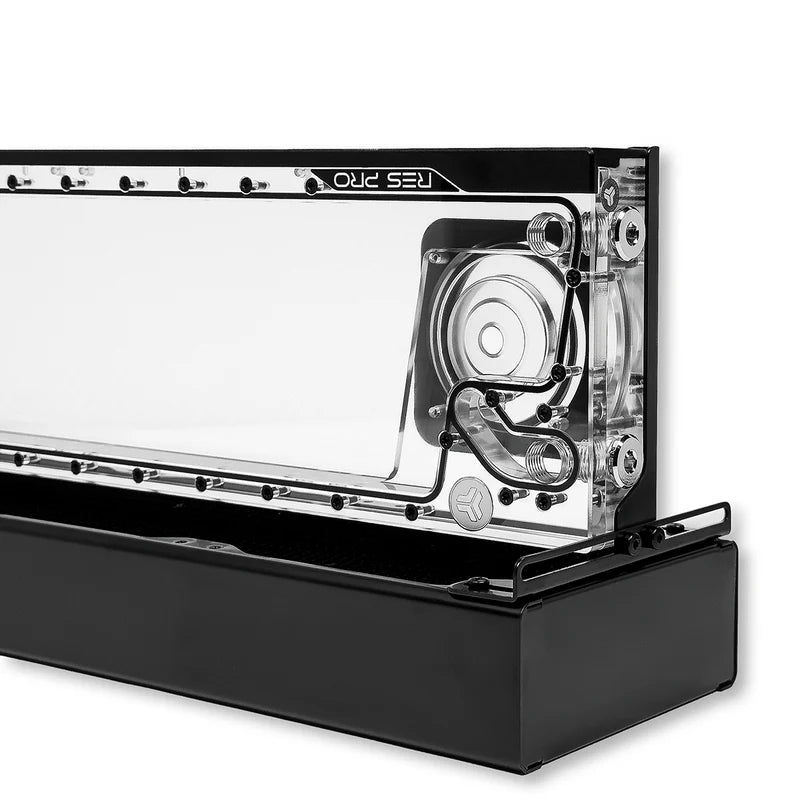

Thanks to the clever rail system, the mounted product can be shifted approximately 52 mm in any direction. This gives you greater flexibility in positioning and allows you to make optimal use of the available space.

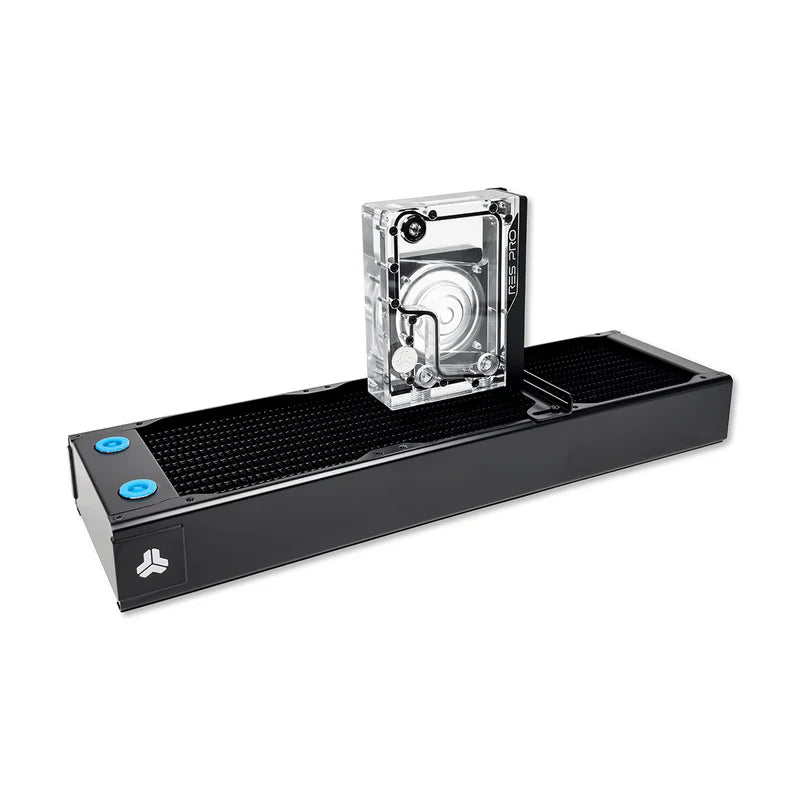

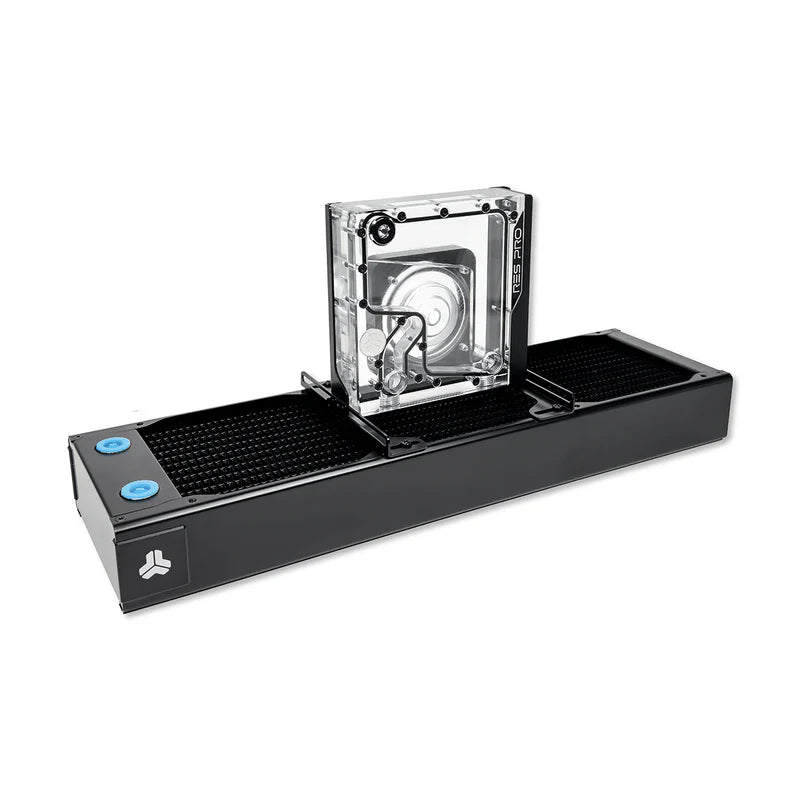

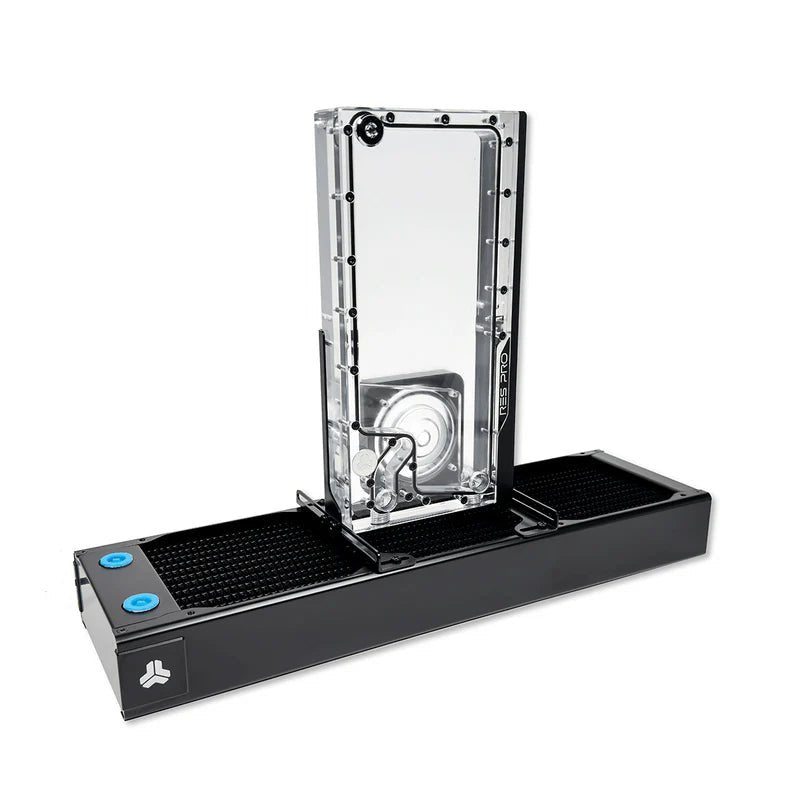

The bracket is designed so that you can use either the long or the short side of the reservoir. This opens up numerous positioning and installation possibilities.
Versatile use
Although the bracket was specifically developed for the ResPro series, it is not limited to it. With a bit of creativity, it can also be used for radiators or other hardware with 120 mm fan mounting patterns.
This makes the SC-UNI Angled Bracket – 120/120 mm suitable for a wide range of custom builds – from space-saving water cooling systems to elaborate show PCs.
Scope of delivery
- SC-UNI Angled Bracket – 120/120 mm (left + right + base bracket)
- 8× M4×10 screws
- 4× M4×4 screws
- 4× M4 nuts
- 4× M4 washers
- 4× 2 mm acetal spacers
- 2.5 mm Allen key
