Stealkley SK-UNI 360D Distroplate D-RGB Black Edition

Stealkley SK-UNI 360D Distroplate D-RGB Black Edition

Regular price $400.00 AUD
Regular price Sale price $400.00 AUD
Sale Coming Soon!
GST included. Shipping calculated at checkout.

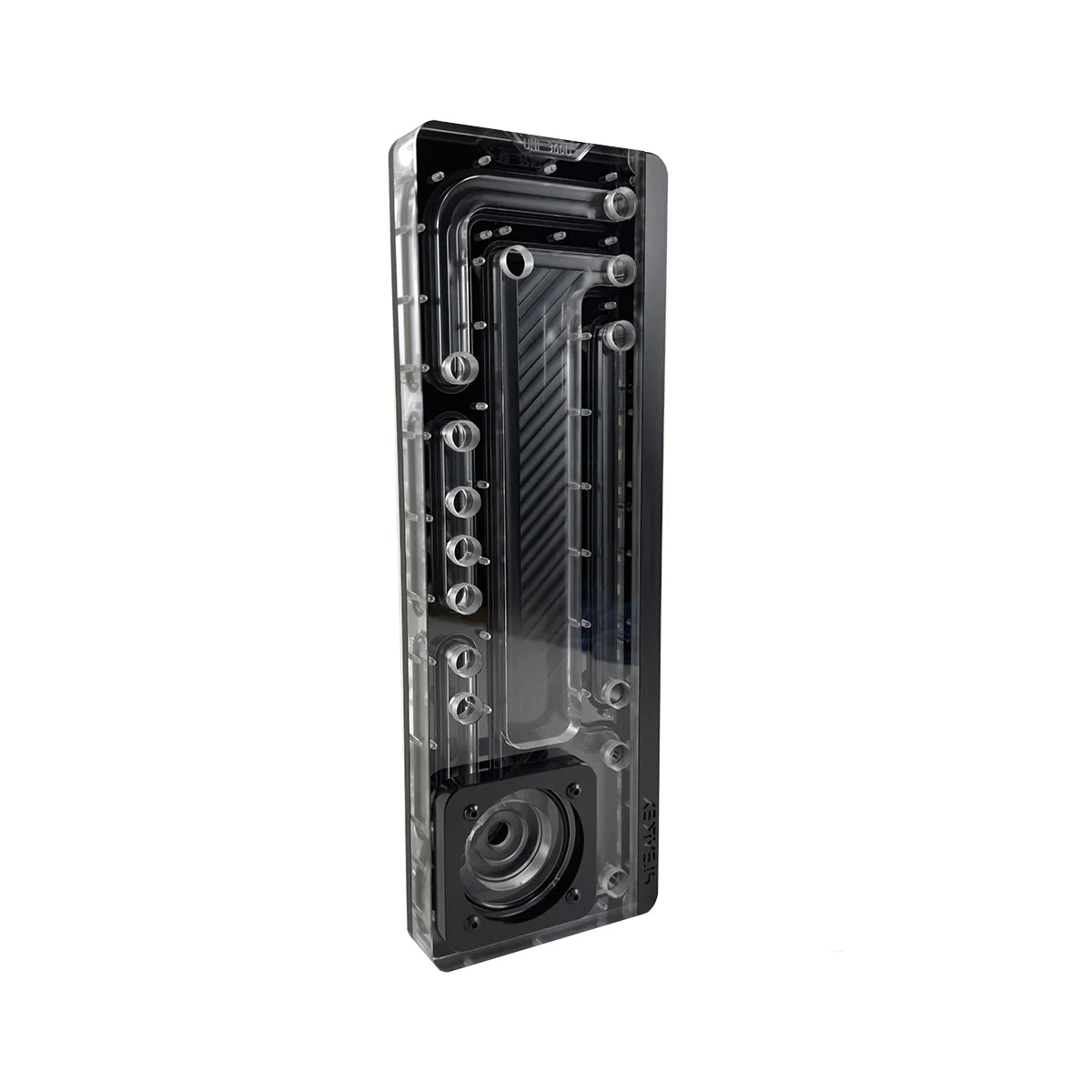

The Stealkey Customs UNI 360D Distroplate offers a variety of functions that make it an indispensable part of any water cooling system. As an expansion tank, efficient coolant flow system and pump solution (compatible with D5 & DDC pumps), it is perfectly suited to ensure the optimal supply of coolant.

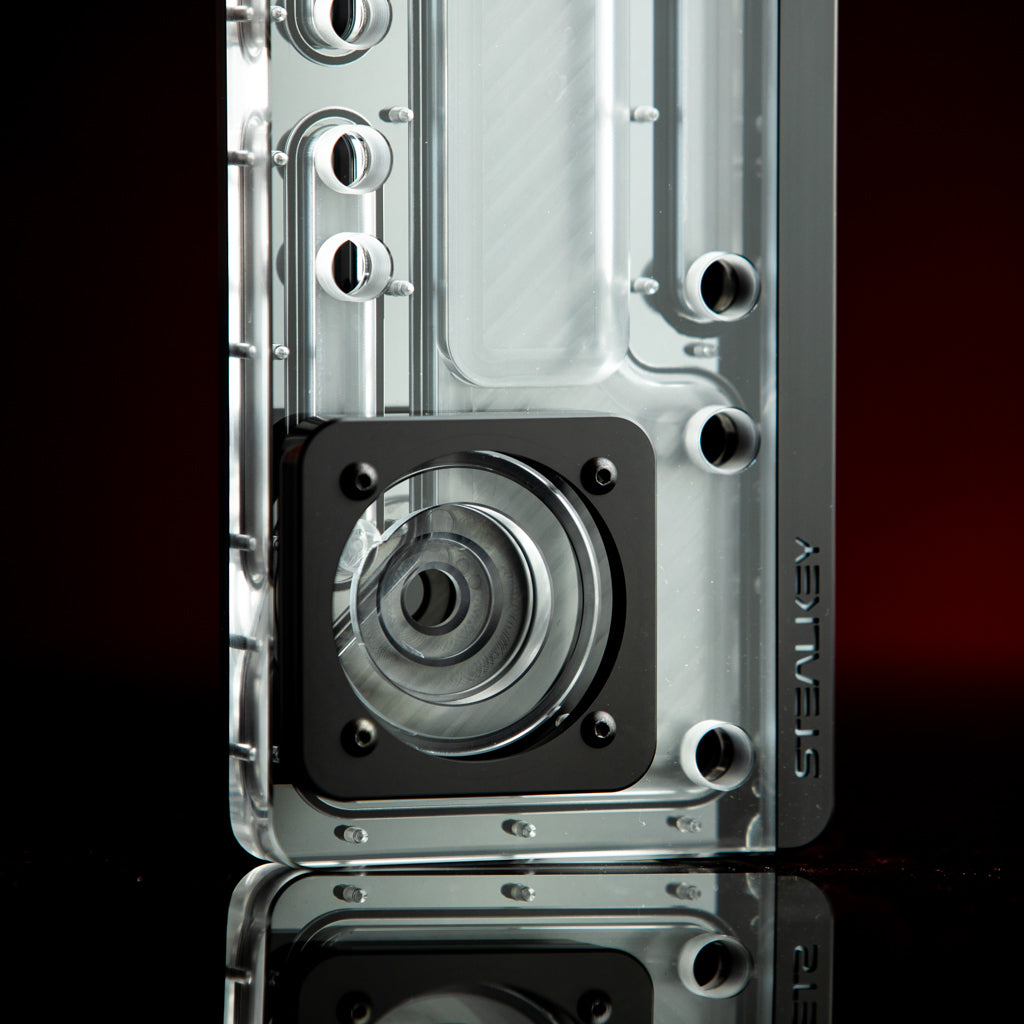

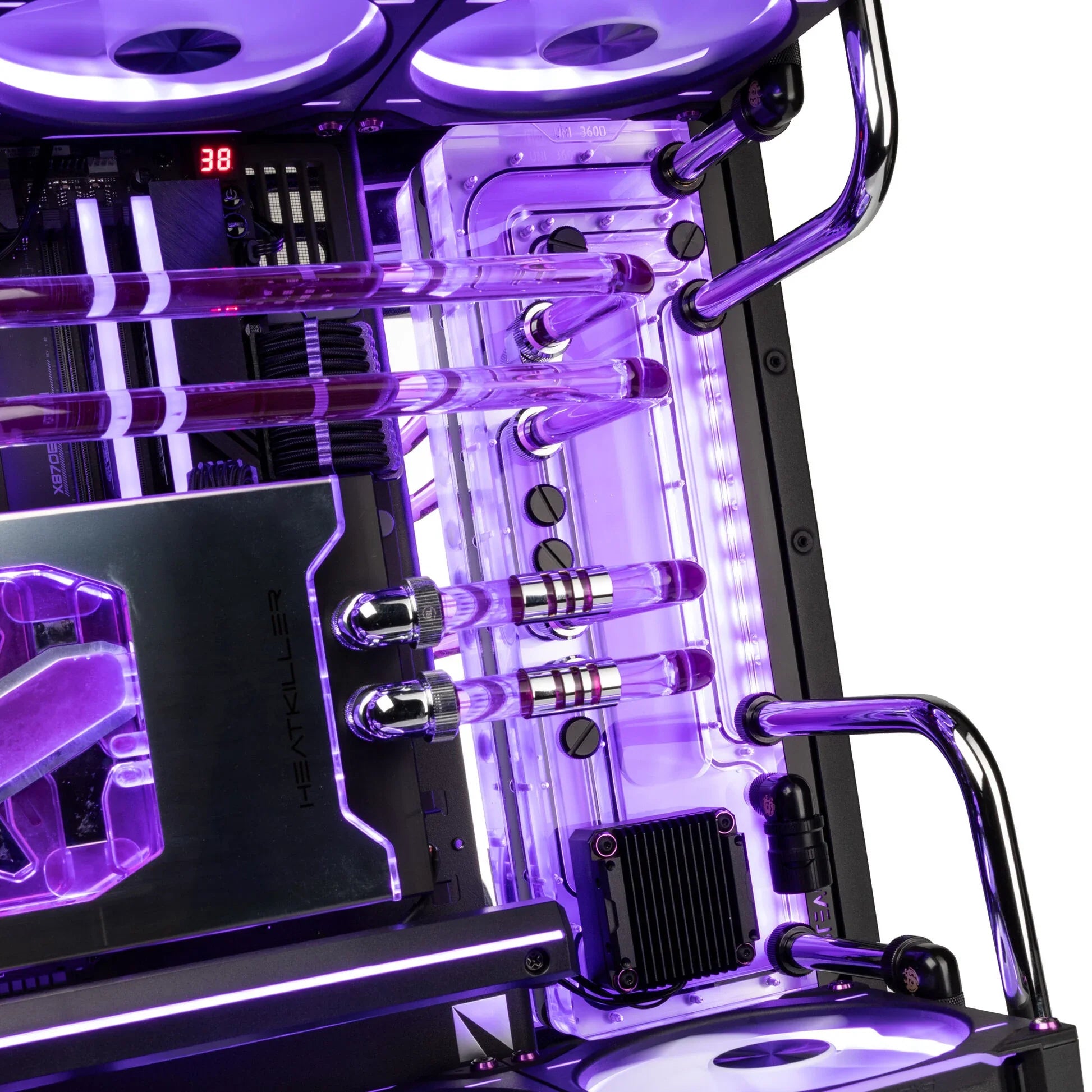

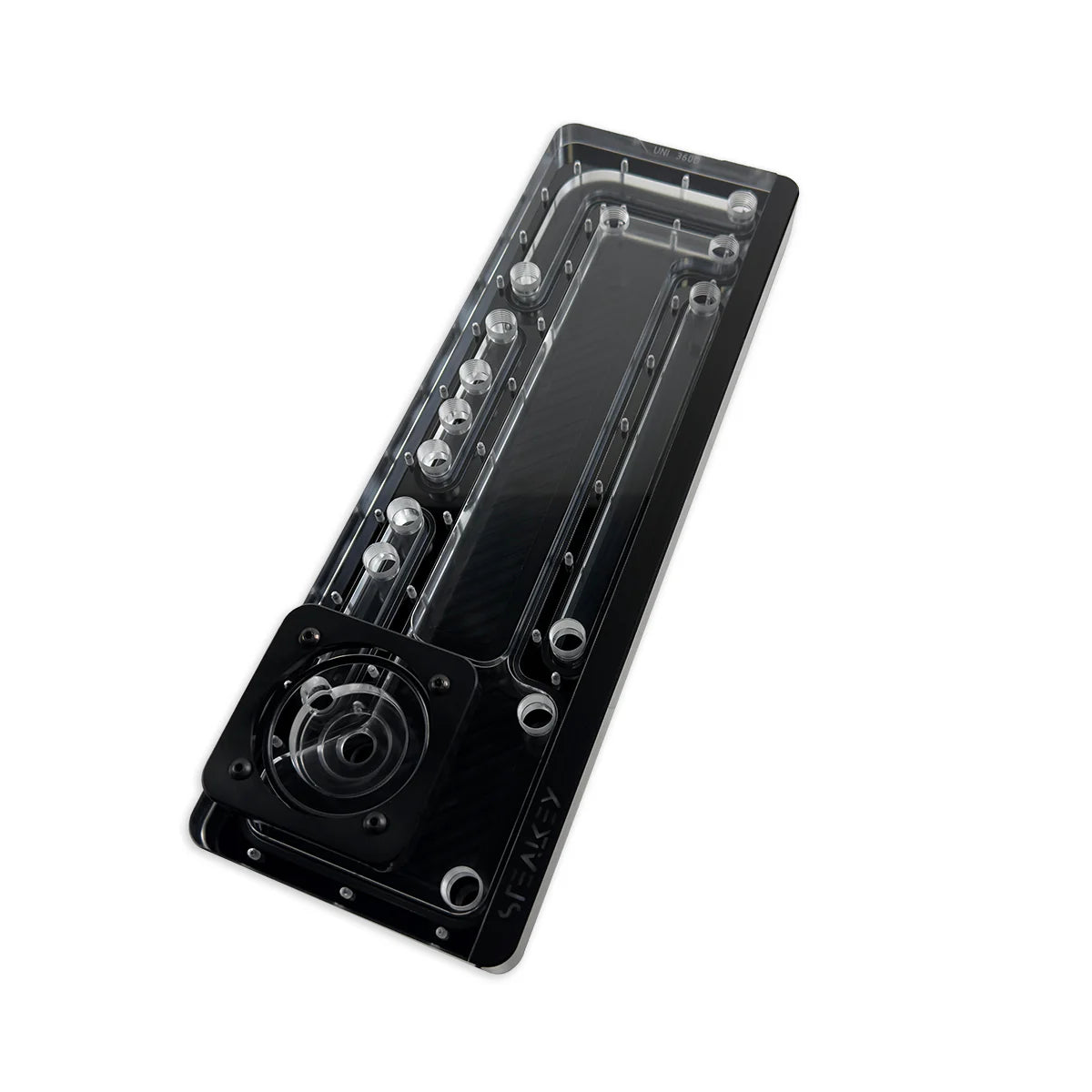

The pump is located on the front so that the UNI 360D can be mounted directly to the 360mm fan mount without additional brackets.

This not only saves space, but also makes installation much easier. With dimensions of 360x120mm, the UNI 360D is a particularly compact pump combo distroplate. Its slim design, combined with the pre-installed D-RGB lighting, gives every water cooling system an aesthetically pleasing look.

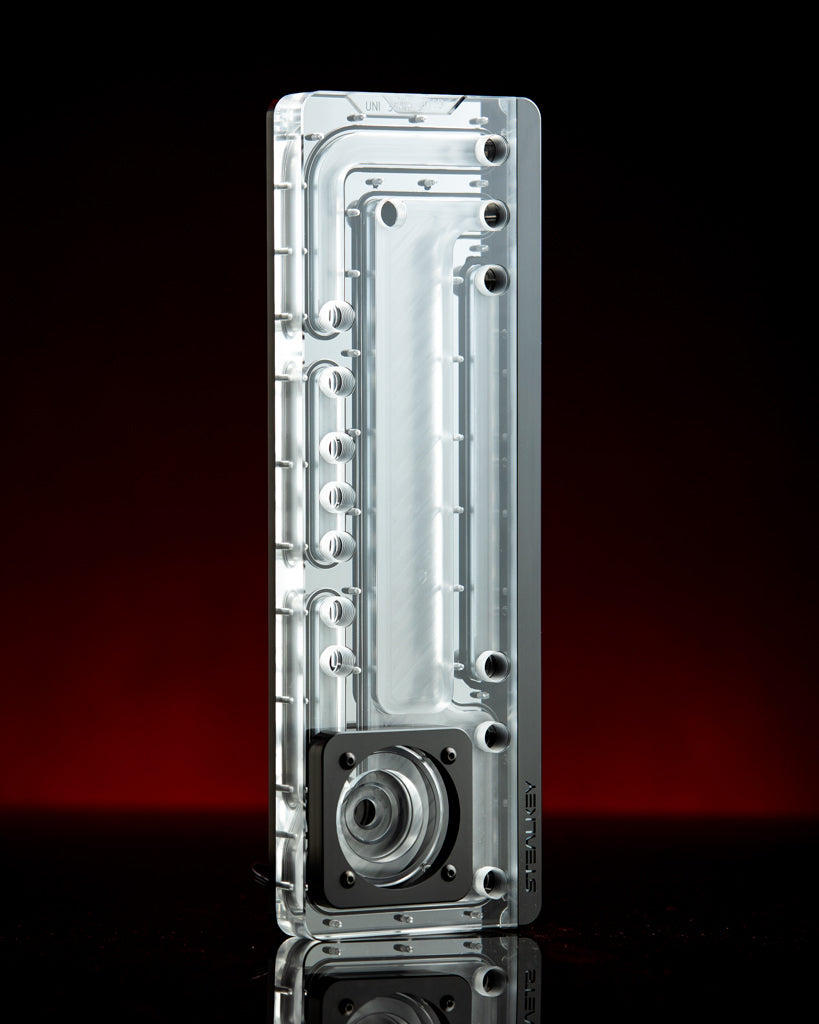

The use of high-quality materials such as glossy black material in combination with a transparent front panel not only ensures an aesthetic upgrade, but also a high quality and durability of the distroplate. With a filling volume of 265ml, the UNI 360D offers sufficient capacity for efficient cooling of GPU (horizontal/vertical), CPU and up to 2 radiators . This ensures optimal provision of the cooling medium and thus reliable cooling performance.

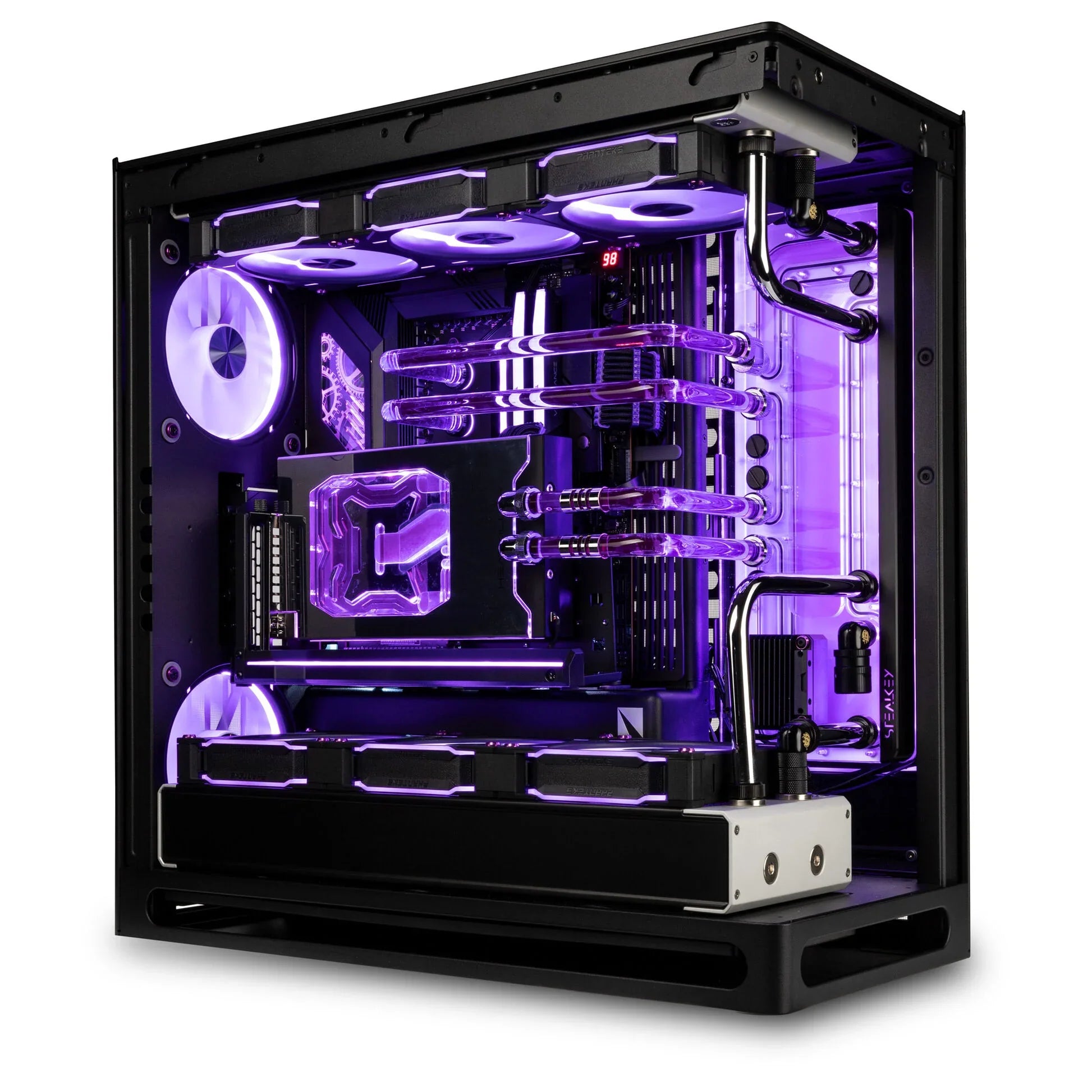

The port layout of the UNI 360D allows for easy use of straight tubing, further simplifying the installation and operation of the water cooling system. The UNI 360D is designed to fit in all cases with a 360mm fan mount, regardless of the manufacturer (Lian Li, Phanteks, Fractal, etc.).

Features in Detail

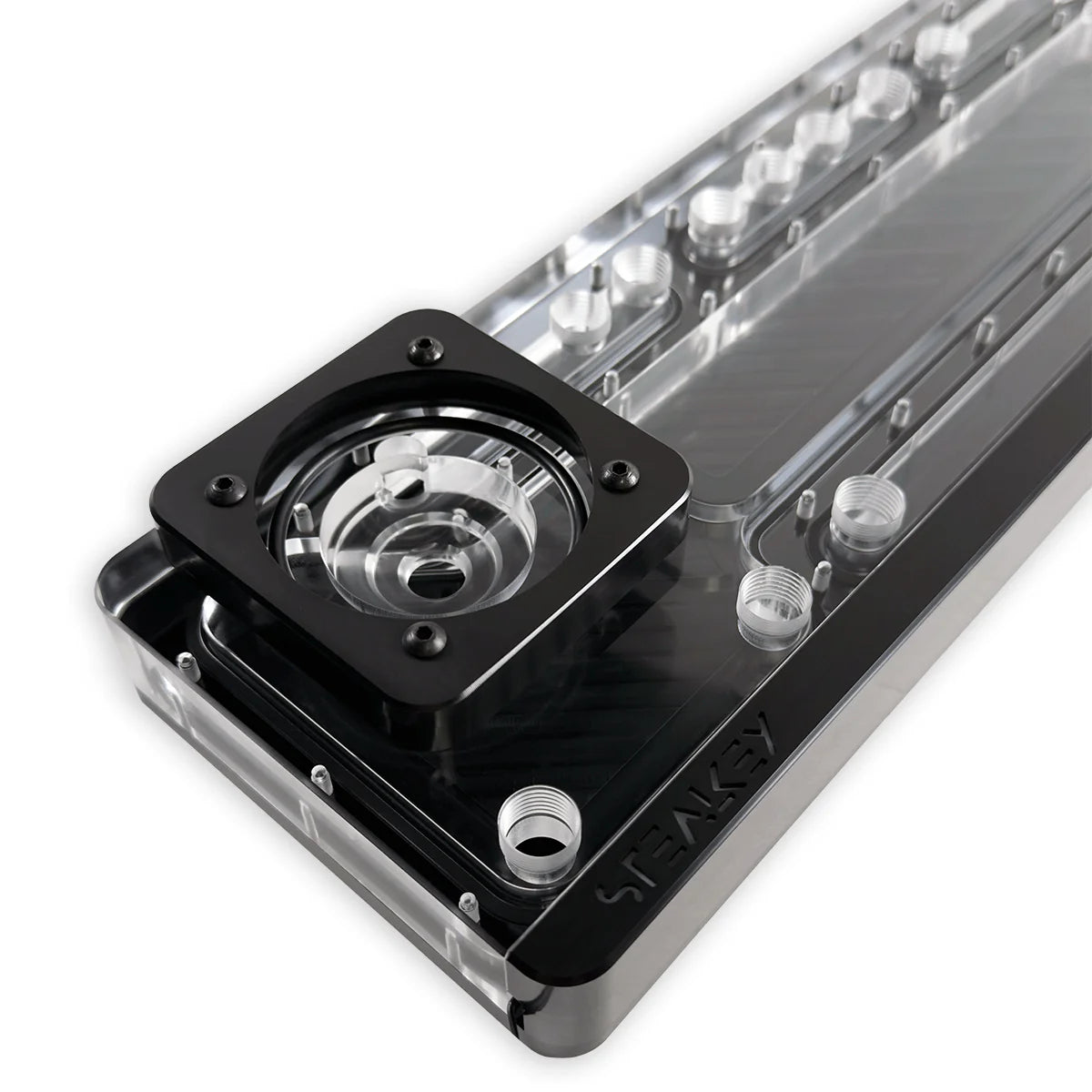

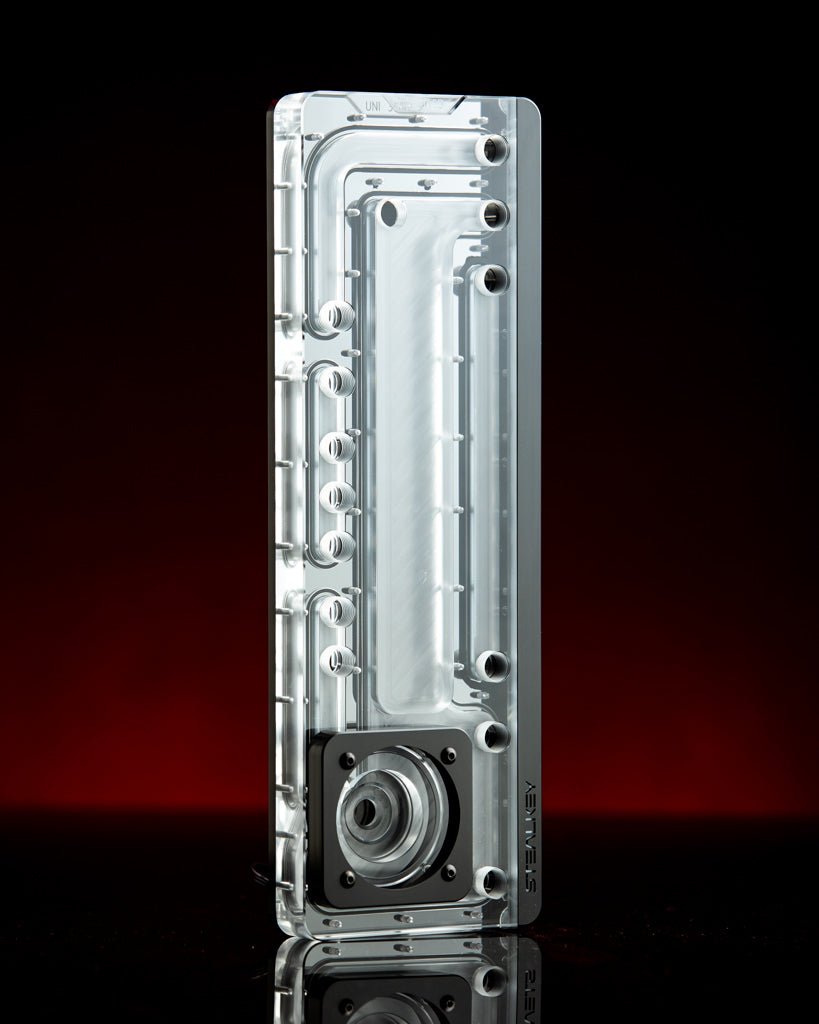

The Stealkey Customs UNI 360D distroplate is designed with a sleek design and efficient use of space to provide maximum capacity for powerful cooling. The distroplate is optimally prepared for the installation of D5 and DDC pumps and allows the use of covers for these pump models. The placement of the pump on the UNI360D has been considered so that it fits in all cases, especially those of the Phanteks brand (NV9 / NV7 / NV5) , without colliding with the lower radiator mount. This ensures a smooth installation and use of the distroplate.

The use of high-quality materials is a top priority at Stealkey Customs. Consistently high quality and longevity of the products is guaranteed.

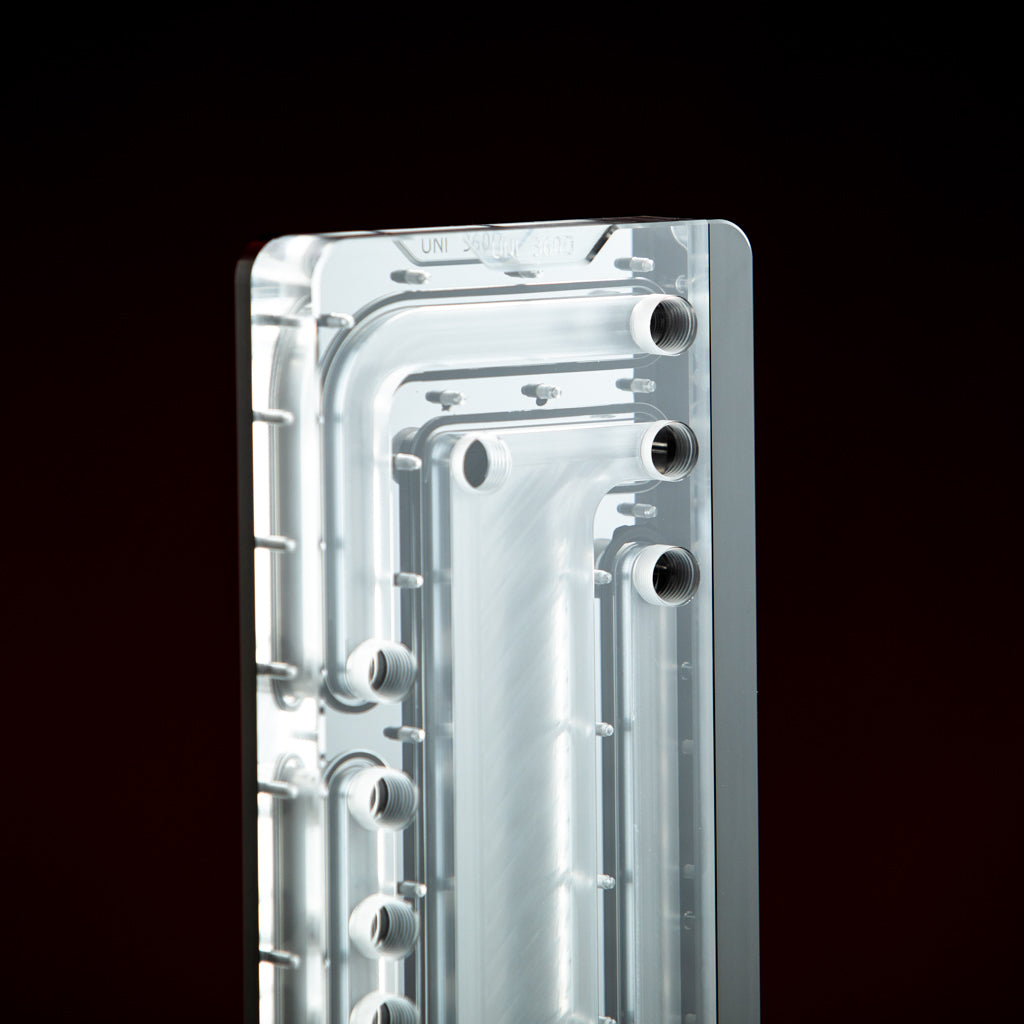

When CNC milling our products, we only use flood cooling to achieve clean milling quality and a maximum gloss effect. This flood cooling replaces other surface treatments, such as flame polishing, which could lead to tension in the material and affect its longevity.

After milling, all Distroplates are professionally cleaned to remove any grease/chip residue. Food grade gaskets in accordance with FDA guidelines are used to ensure compatibility with all commercially available pastel and transparent coolants.

The assembly is carefully handcrafted, using Torx M3 stainless steel screws due to their subtle appearance and high durability.

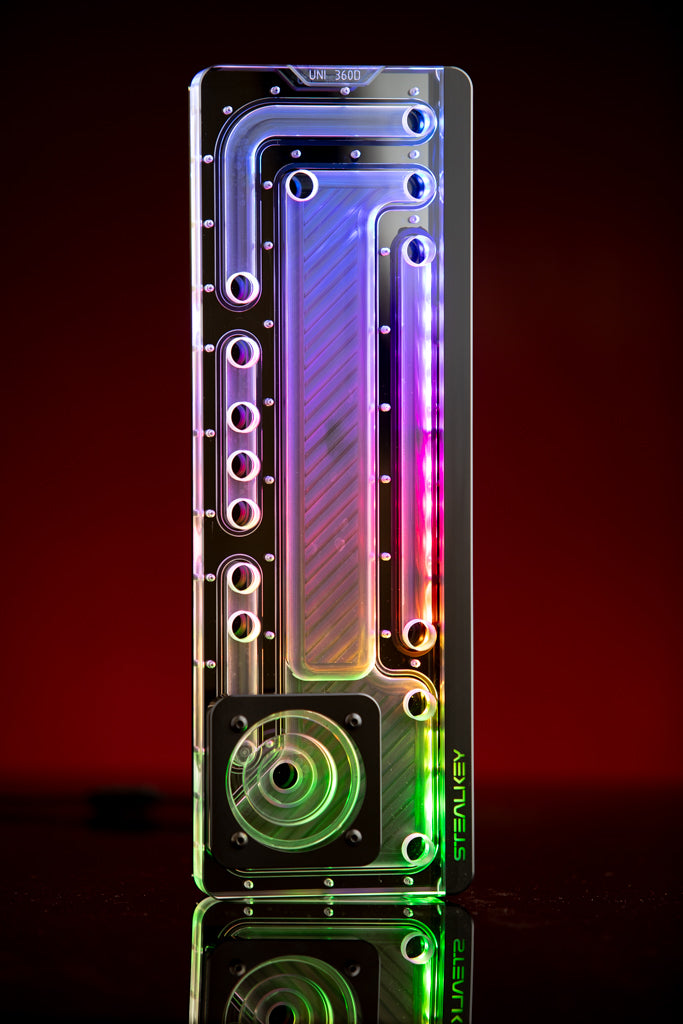

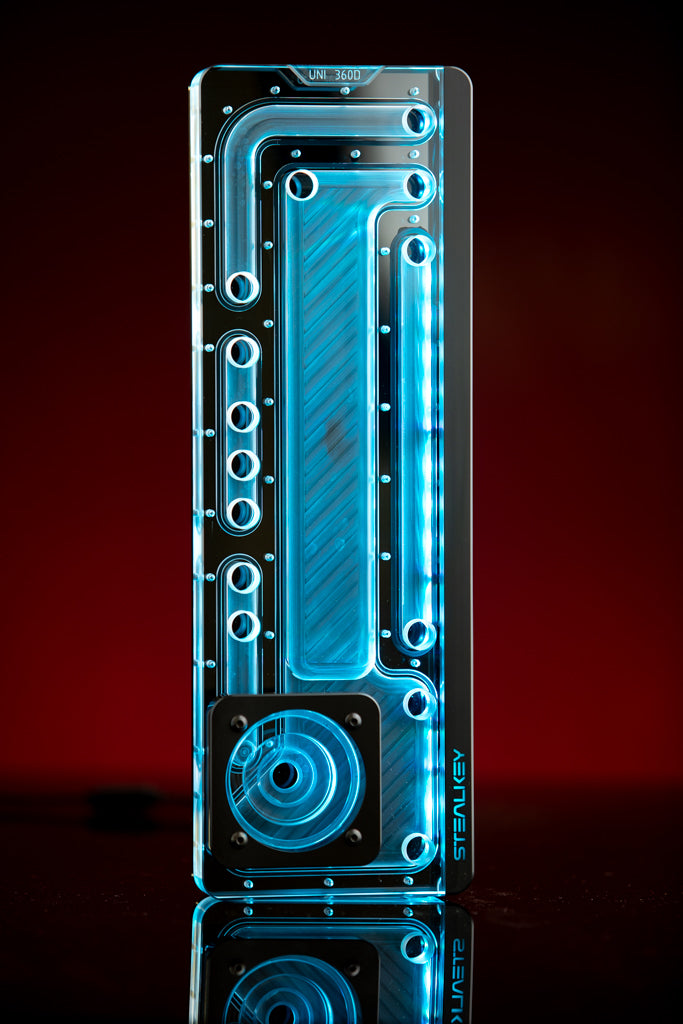

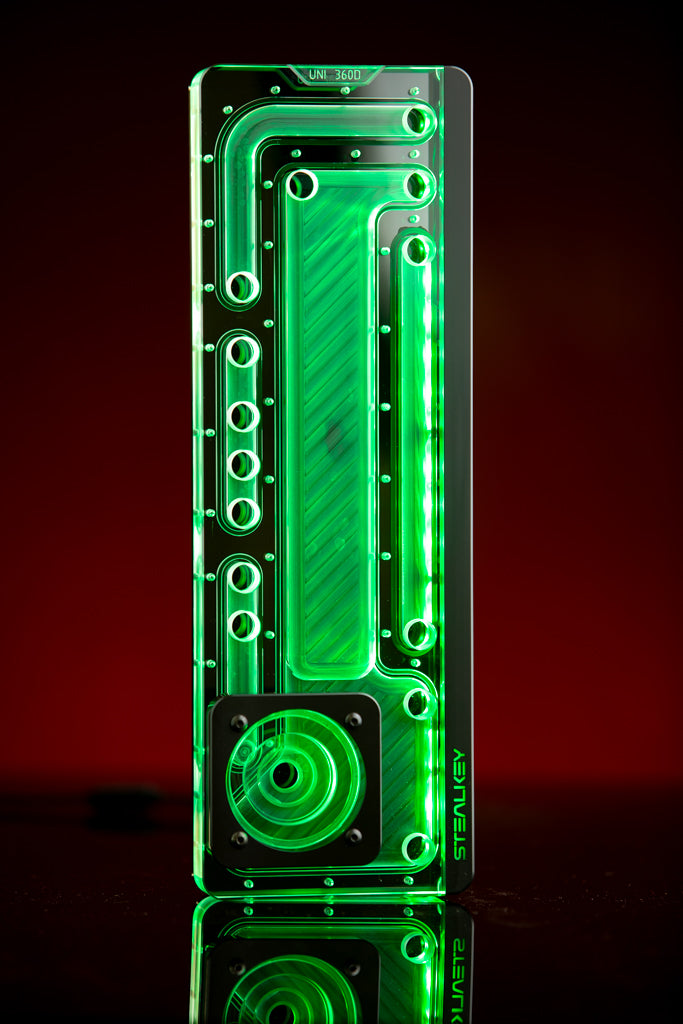

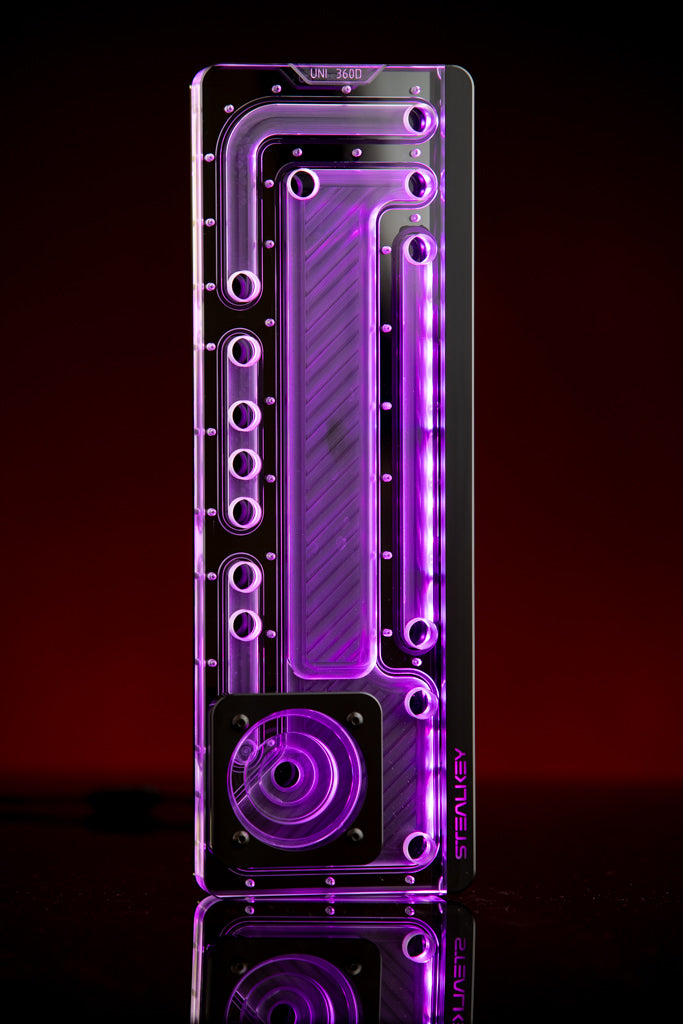

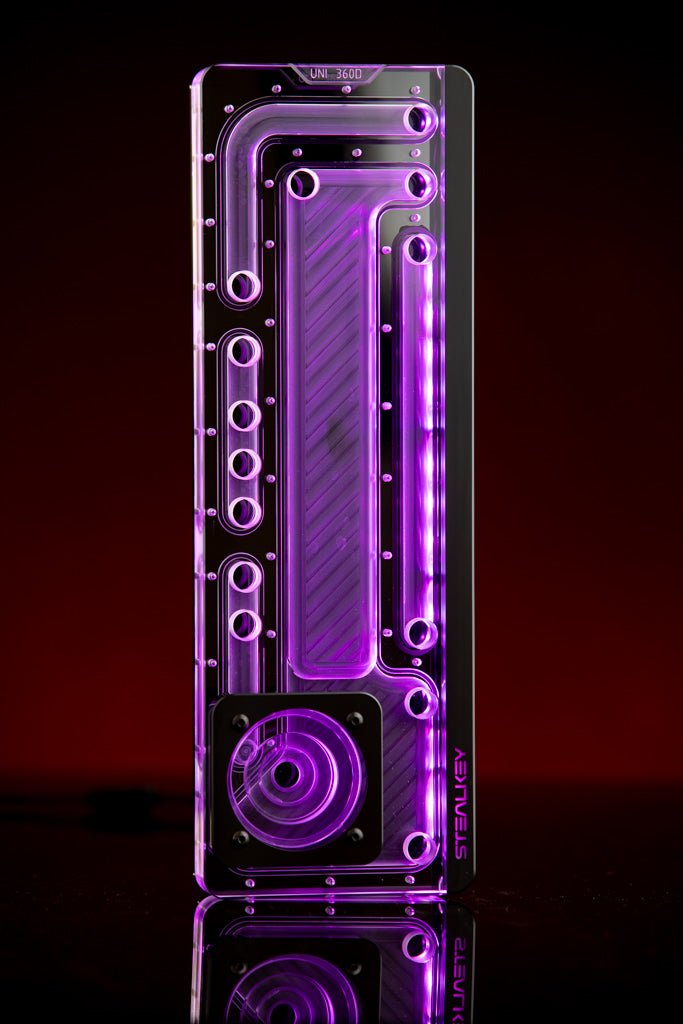

The UNI 360D is equipped with an addressable D-RGB LED strip that runs the entire length and is covered by a black POM cover to eliminate unwanted LED hotspots. The integrated LED strip can be seamlessly connected to the motherboard's 3 pin 5V header and is compatible with leading RGB software solutions

Stealkey Customs RGB

Features at a glance

• Addressable RGB stripe including 3-pin connector
• Versatile functionality (pump combo distroplate)
• Front-mounted pump
• Slim and compact design
• Mounts on 360mm standard fan space
• High-quality materials
• Universal compatibility (D5 & DDC)

Technical Details

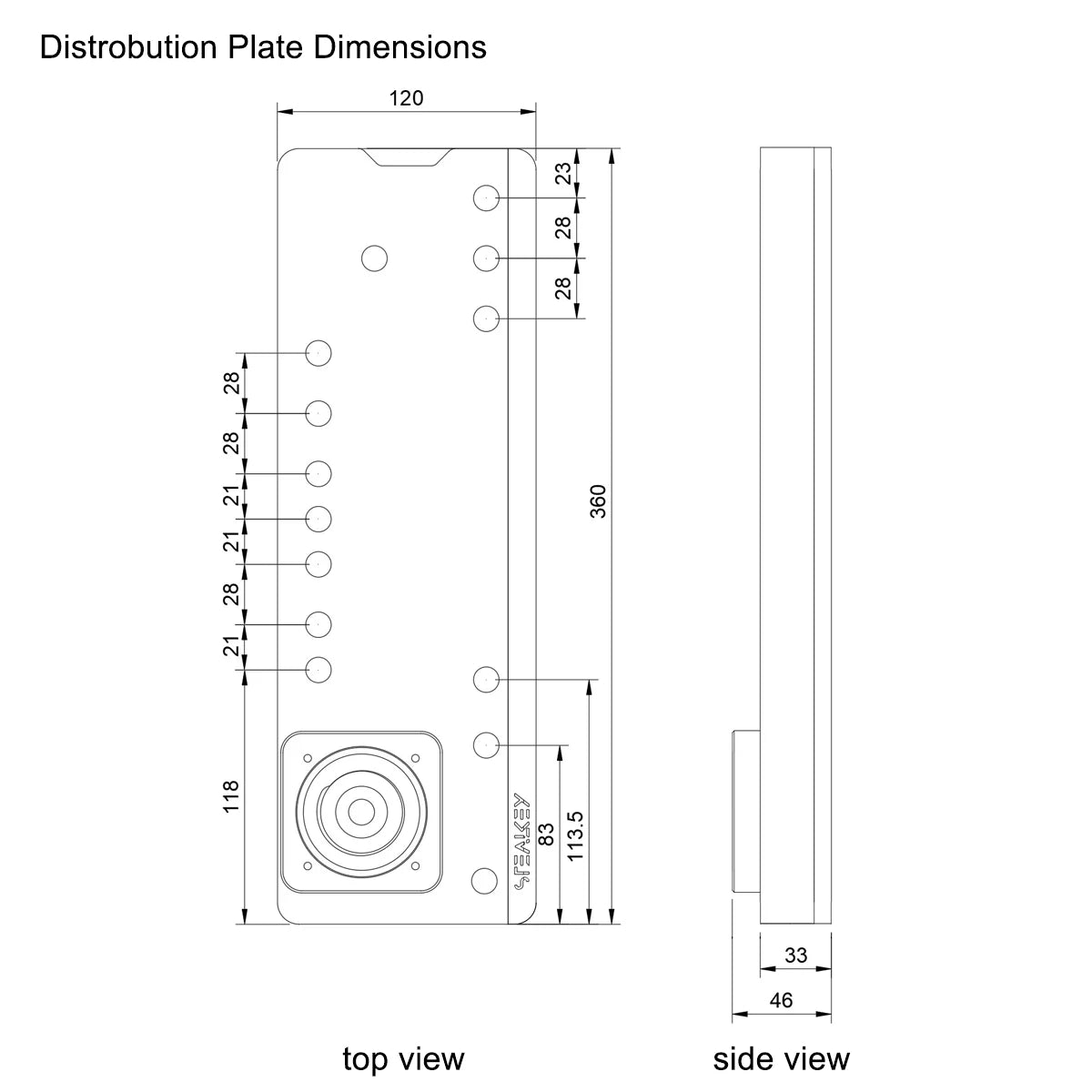

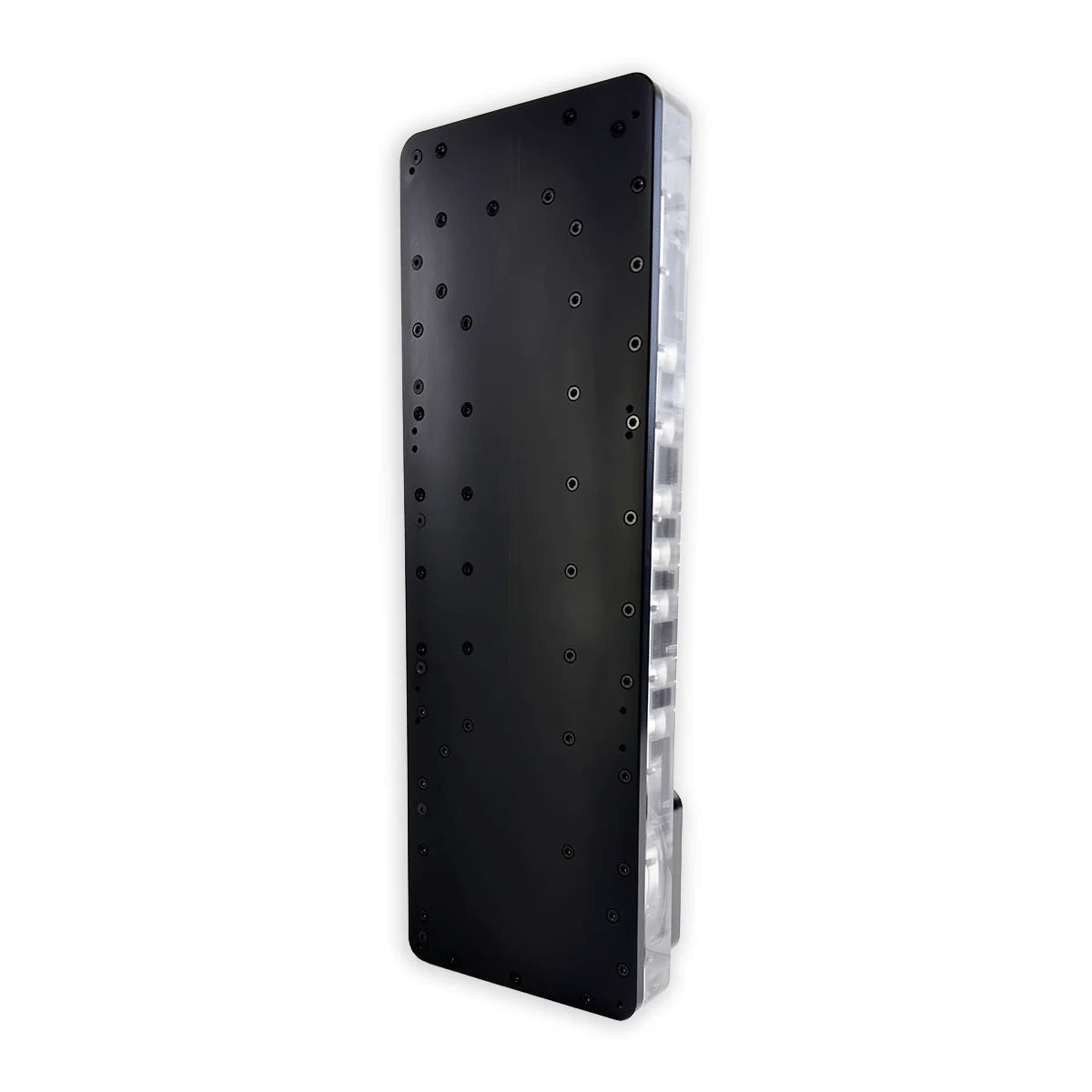

• Product dimensions: (W x H x D): 120 x 360 x 33 mm
• Color: Black and transparent
• Material: Acrylic glass, plastic
• Connections: 14x G1/4" ports
• Filling volume of 265ml
• D-RGB cable length: 500mm

scope of delivery

• 1x UNI 360D
• 8x mounting screws
• 1x D5 ring
• 1x D5 O-ring



assembly instructions

Installation Manual EN



Important NOTE

  • Compatible with any case that has a 360mm fan mount such as Phantaks NV9, NV7 and NV5 or Lian Li PC-O11 D EVO XL, EVO & EVO RGB, no XL and Vision.
  • The DDC pump or D5 pump is water lubricated and must not run dry; otherwise permanent bearing damage may occur.
  • Fittings Please only screw the Distroplate into place by hand, do not use a wrench. Danger: If the fittings are tightened too much, the acrylic may crack and leak!
