Watercool D5 DUALTOP Industrial Line Dual Pump top
Watercool D5 DUALTOP Industrial Line Dual Pump top

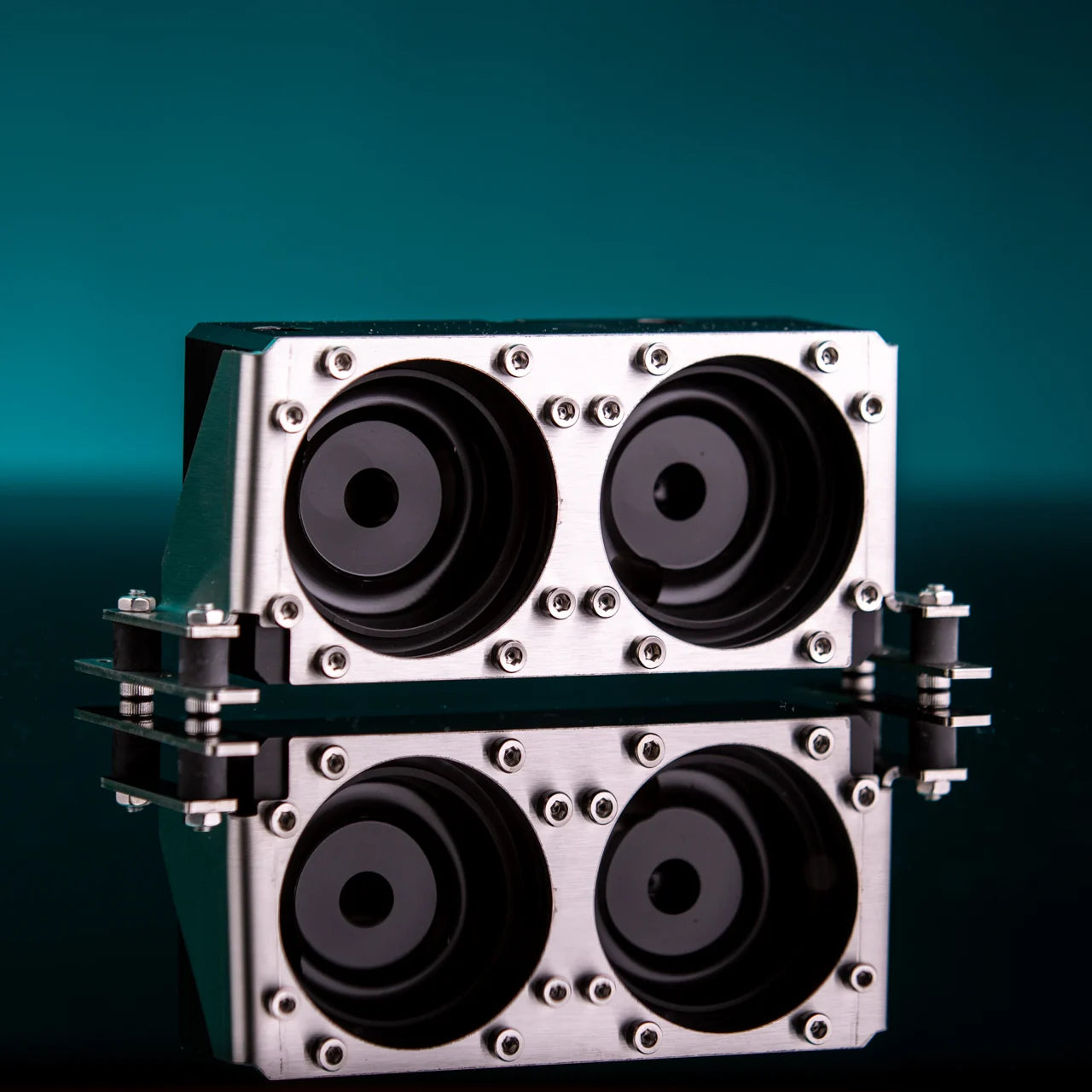

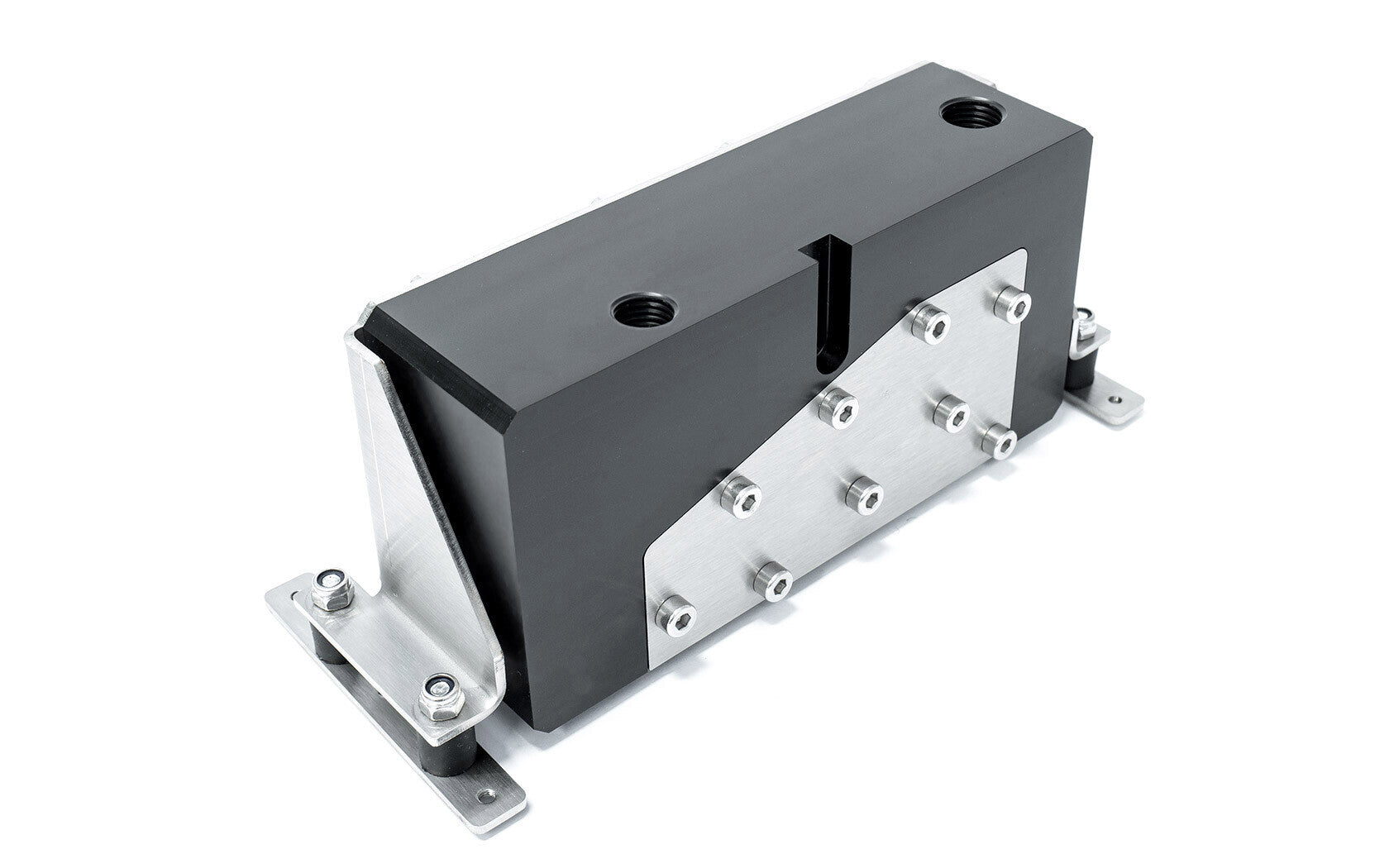

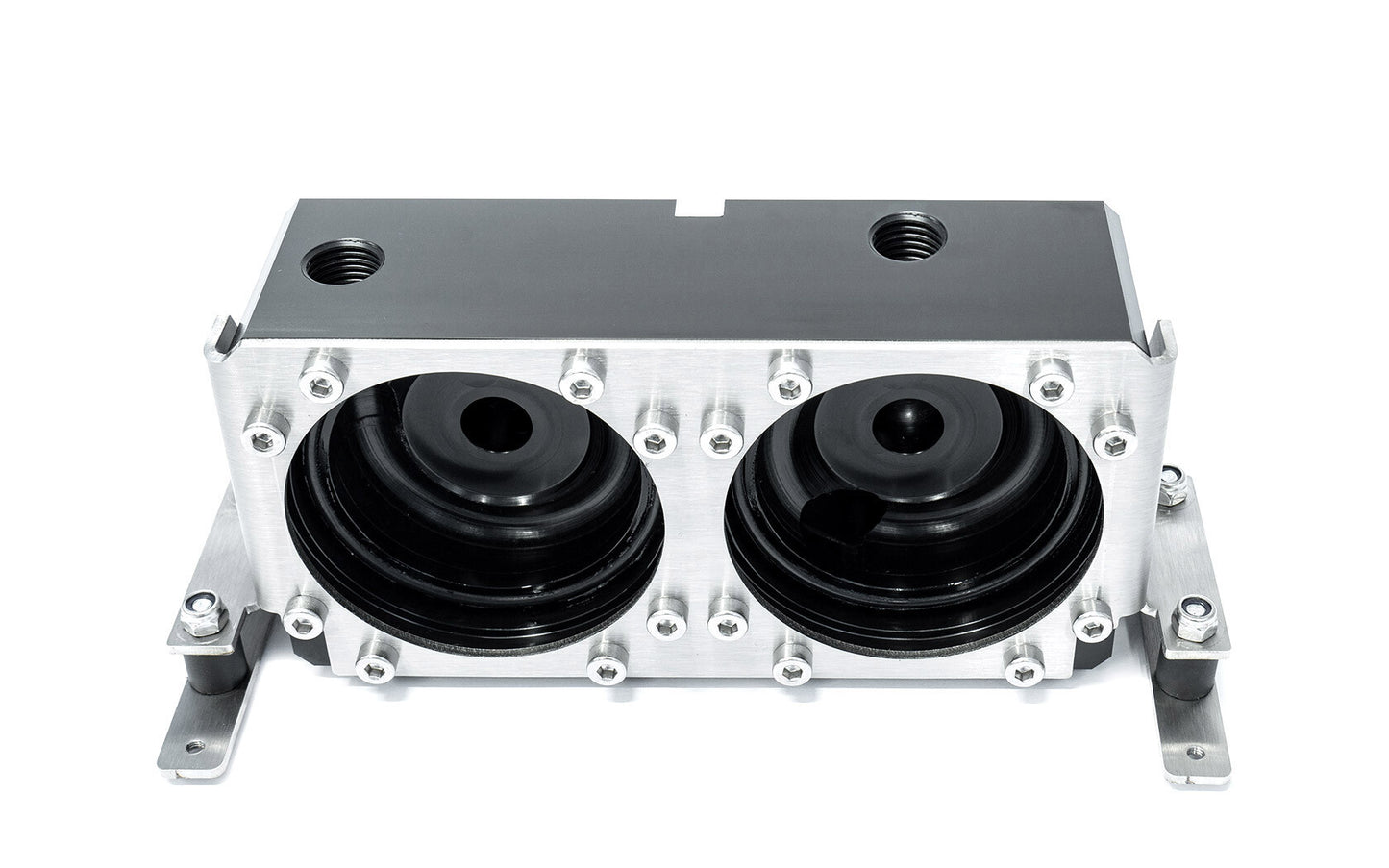

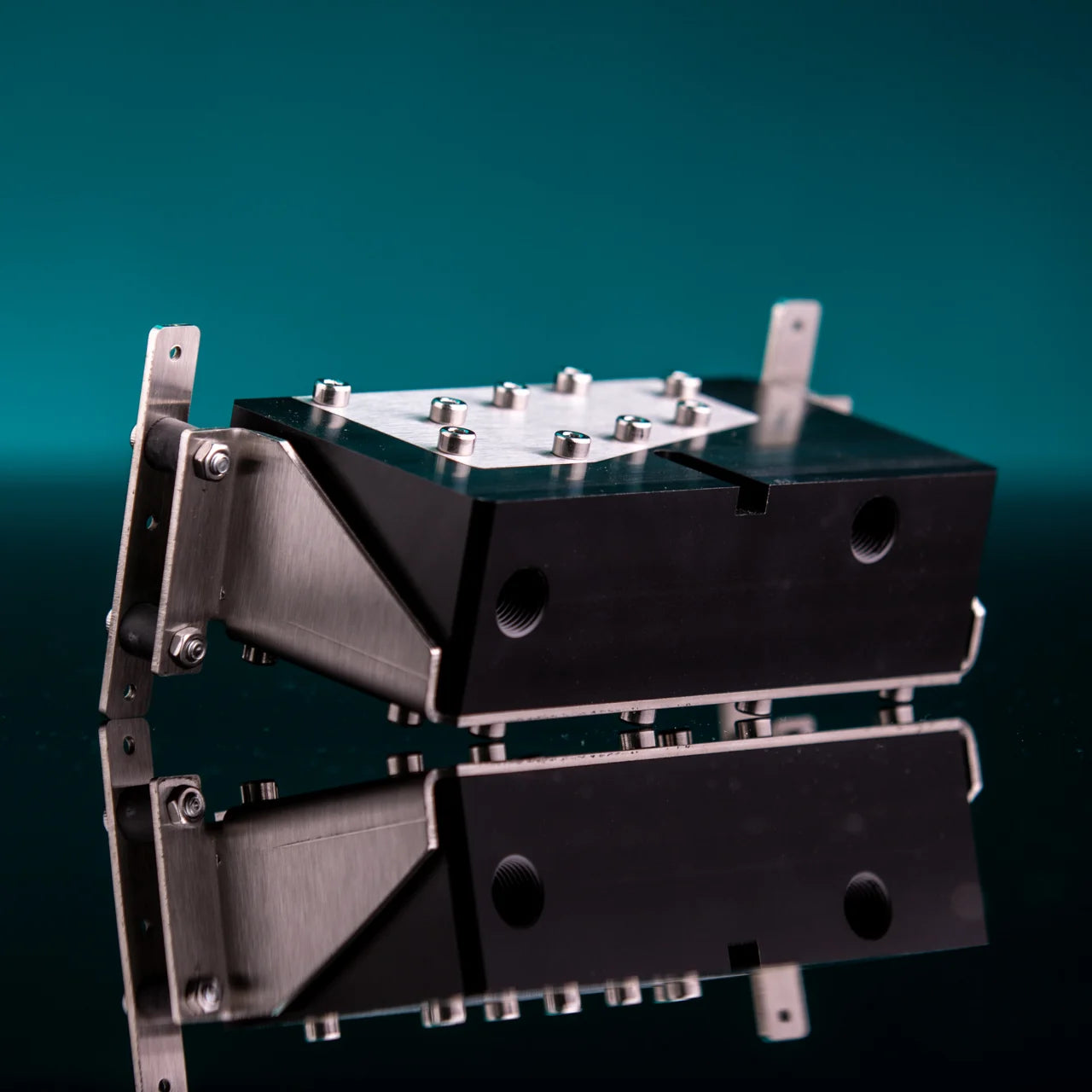

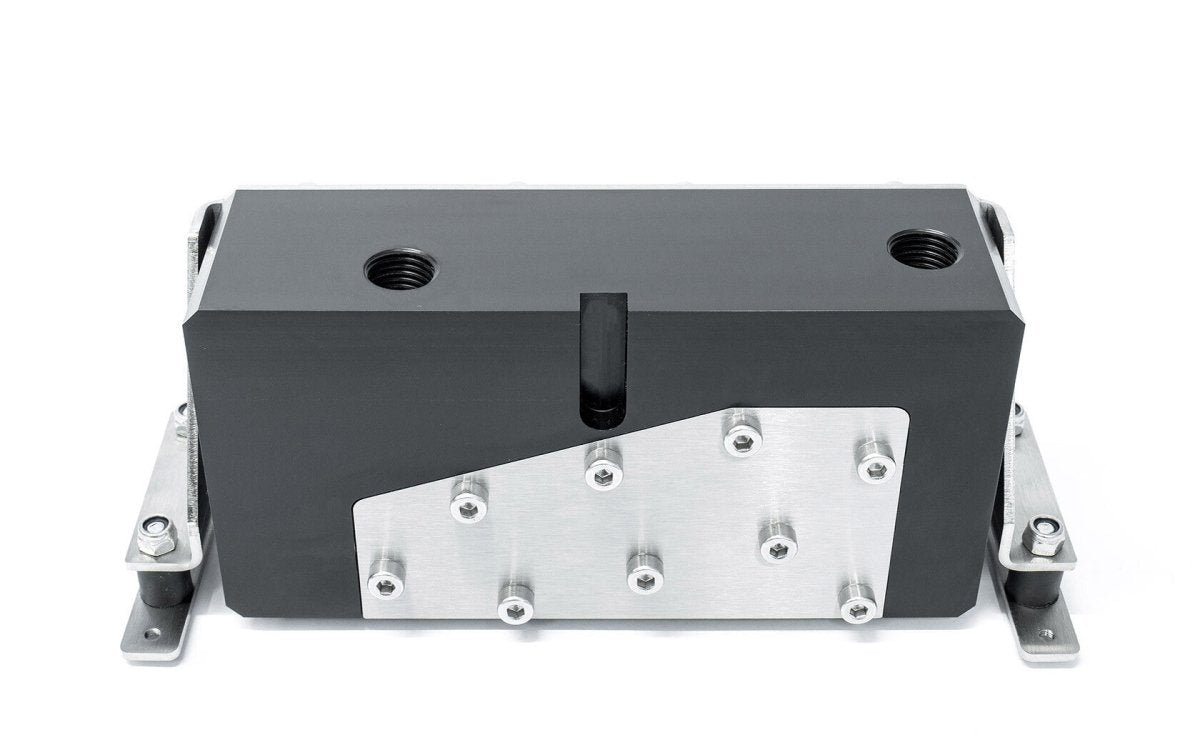

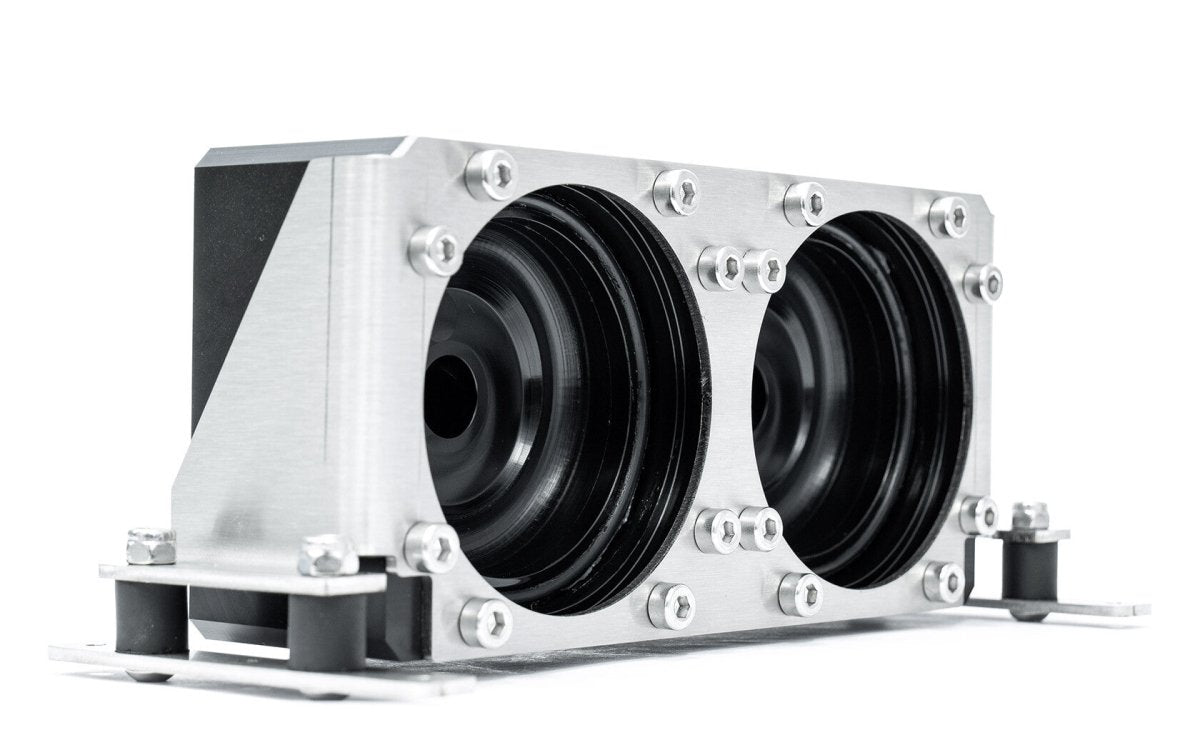

With the Watercool D5 Dualtop, the designers have developed a solid top cover made of acetal for two Lowara D5 pumps for industrial applications. The focus of the development was high performance together with robust manufacturing.
High operational reliability, flow optimized
The concept with two pumps ensures a high level of operational reliability, because if a single pump fails, the second ensures that the liquid continues to move in the cooling circuit. The channels have been optimized for flow, resulting in lower operating noise, more flow and better liquid absorption properties. The type of implementation also ensures better ventilation. In addition, the dual top is decoupled by elastic rubber dampers to minimize vibrations and avoid oscillations.
Watercool has developed a compact D5 dual top for demanding industrial applications. In addition to outstanding performance, the company relies on robust and temperature-resistant materials for a long service life.
The Watercool Industrial Line is characterized by an extremely reduced design, maximum functionality, high performance and robust materials.
Technical specifications:
Material: Brushed stainless steel, Acetal
Material thickness of stainless steel bracket: 2mm
Dimensions without retaining plate: 140.5 x 40 x 70
Dimensions with retaining plate: L x W x H 177 x 74 x 74.5
Dimensions with retaining plate and pumps: 177 x 76.5 x 74.5
Weight Dual D5 Top: Without pumps 580g with 2 x D5 pumps 1060g
Operating temperature: -20° to 80°
Scope of delivery:
- Pump top
- Decoupling

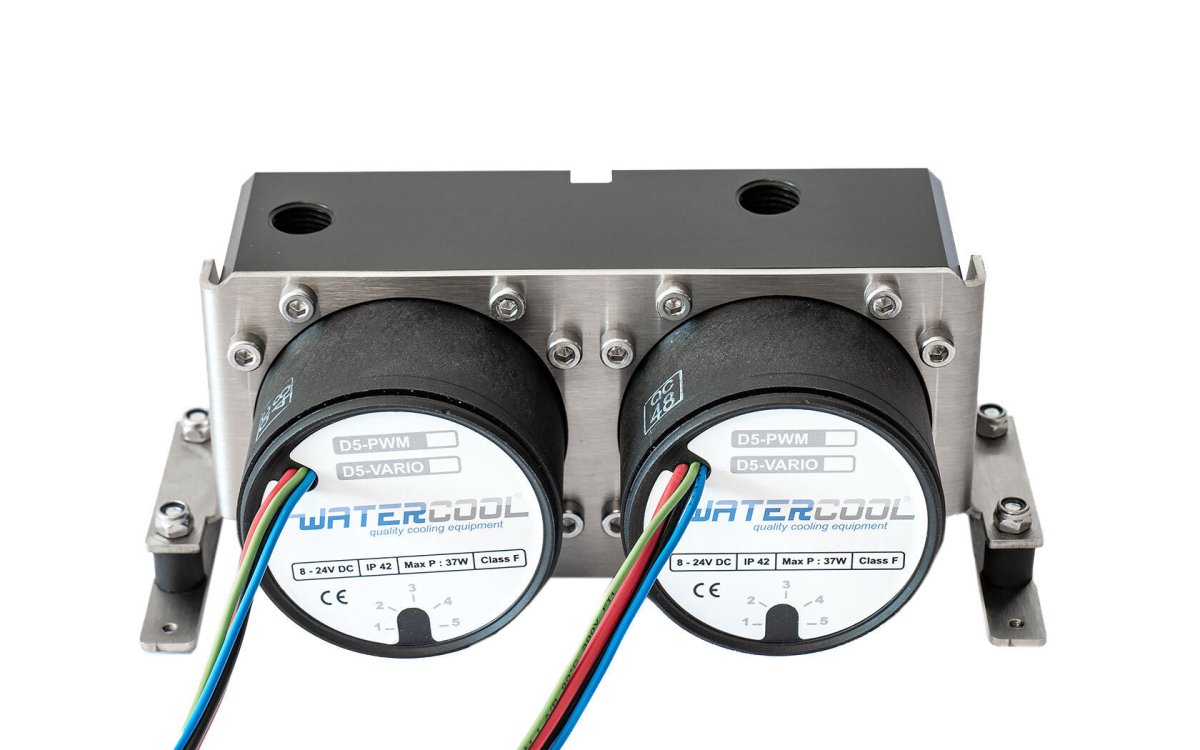

The D5 dual top is delivered without pumps
Compatible with:
Watercool: WCP D5-PWM, WCP D5
Alphacool: TPP 644, VPP655, VPP655 PWM
Aquacomputer: D5, D5 PWM
EKWB: EK-D5 Vario, EK-D5 PWM
Koolance: PMP-450, PMP-450S
Swiftech: MCP655 , MCP655-B
XS-PC: D5 Vario, D5 PWM
Laing / Xylem / Lowara: D5 pumps
