Watercool HEATKILLER INOX Pro for NVIDIA RTX 5000/6000 Blackwell

he high-performance HEATKILLER INOX Pro water cooler for NVIDIA RTX 6000 Pro Blackwell graphics cards was specifically developed for the needs of professional users in businesses and data centers. Our focus was on creating the most compact and powerful cooler possible.

High cooling performance thanks to modular base plate

A modular base plate with finely slotted cooling fins ensures optimal cooling performance thanks to the increased cooling surface area. Despite the high fin density, a high flow rate is achieved through the split flow design.

The distances to all heat-relevant components were kept minimal. This ensures efficient heat dissipation from thermally problematic areas, such as RAM, voltage converters, and the power input area.

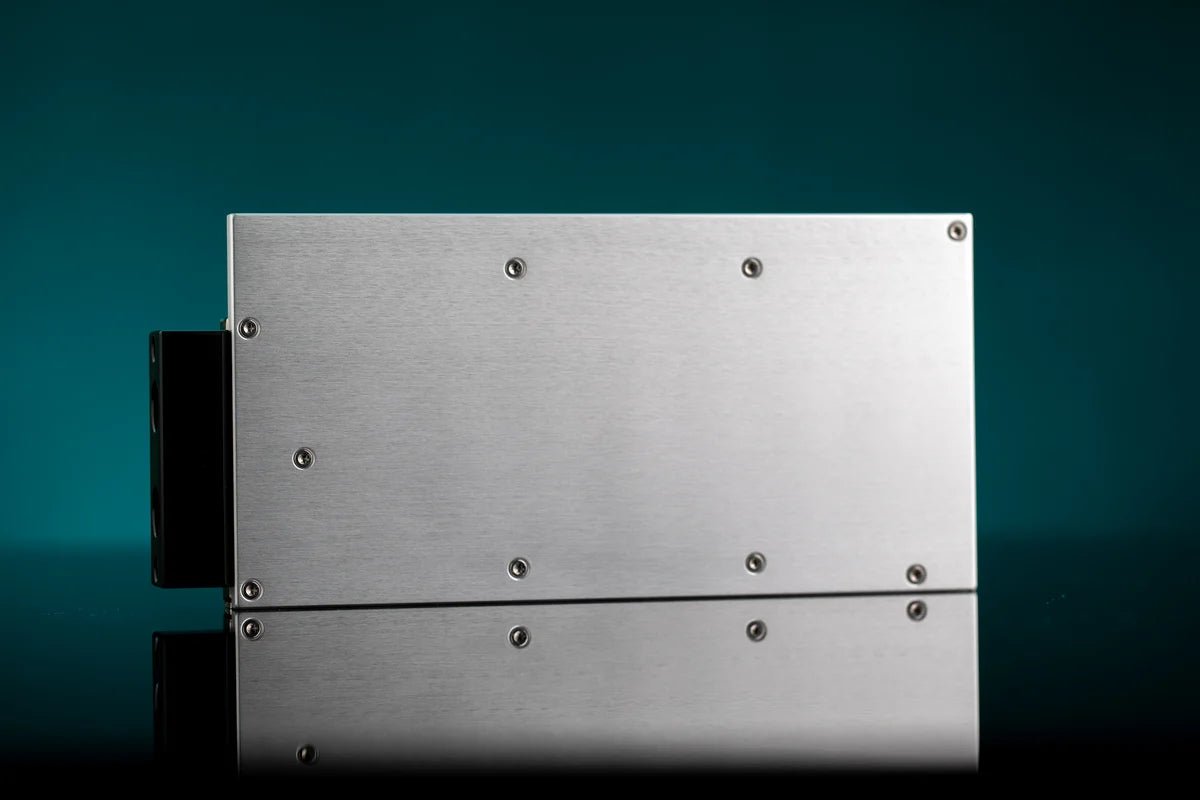

Backplate cools heat-sensitive area on the back

The backplate establishes a thermally conductive connection with the cooling unit, thus ensuring improved temperatures in this heat-sensitive area on the back of the card.
The backplate's design is specifically aimed at ensuring efficient cooling of the rear voltage regulators, RAM, and power input area of the RTX 6000 Pro Blackwell.
Pre-cut thermal pads are included to guarantee excellent heat transfer and quick installation.

Robust and suitable for 2U rack server systems

The entire cooling unit is made from robust materials. The solid stainless steel (Inox) top section is laser-cut and repeatedly formed for increased stability. The high-purity copper for the cooling unit is CNC-milled with minimal tolerances and nickel-plated. The solid aluminum backplate is anodized and completes the unique cooler. The NVIDIA RTX 6000 Pro Blackwell graphics card is fully enclosed, thus effectively protecting it from external influences.

The compact water cooler is optimized for easy installation in (2U) rack server systems. Its single-slot design occupies only one PCI Express slot, allowing for easy multi-configuration. Furthermore, we keep spare parts for the INOX PRO series coolers in stock to ensure long-term and prompt support.

Made in Germany

The products are manufactured with the utmost care on our state-of-the-art CNC machine park in Waren an der Müritz. Many work steps are performed by hand, and each unit is finished according to the four-eyes principle.

Technical specifications:

Base plate material: Nickel-plated electrolytic copper;
Cover material: Brushed stainless steel;
Backplate material: Anodized aluminum;
Connector terminal material: Acetal;
Dimensions (L x W x H): 214 x 98.5 x 19 mm (connection module 20 mm)

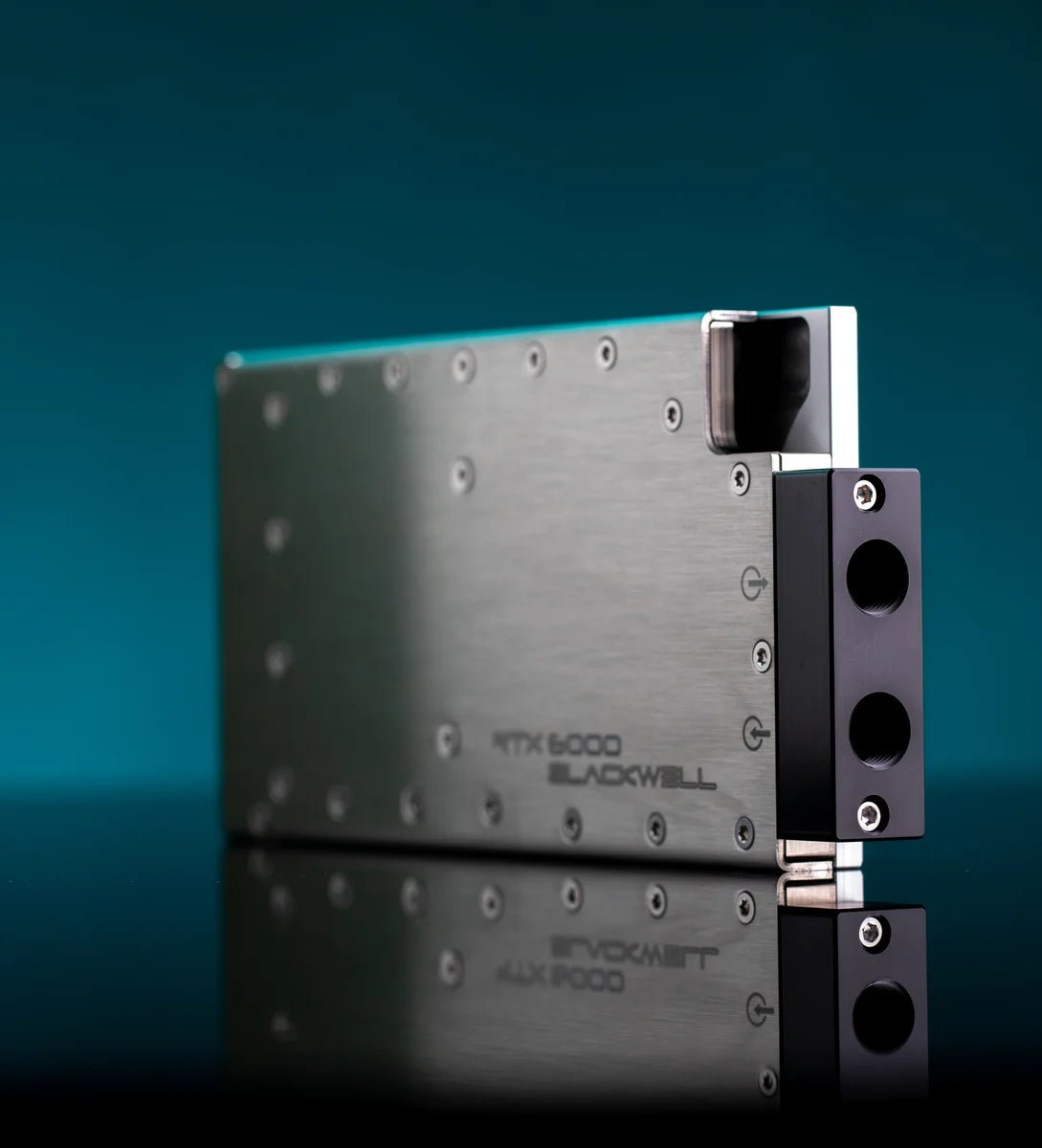

; Connector: 2 x G ¼ inch (DIN ISO 228-1)

; Compatibility:
NVIDIA RTX PRO 6000 Blackwell Server Edition,
NVIDIA RTX PRO 6000 Blackwell MAX Q Workstation Edition,
NVIDIA RTX PRO 5000 Blackwell 48GB

Not compatible with:
NVIDIA RTX PRO 6000 Blackwell Workstation Edition.


Package contents:
1 x HEATKILLER INOX Pro for NVIDIA RTX 5000/6000 PRO Blackwell,
1 x Backplate
, 1 x Cooler slot cover,
1 x Mounting hardware
, 1 x Thermal pads
